Universal DIN Rail Mounting Plates

Many devices are not designed for DIN rail mounting, but these universal DIN rail mounting plates solve that problem. Simply attach your device to the plate by using screws or straps, and then mount the assembly onto your 35mm DIN rail.

Winford offers these plates in a variety of sizes, materials, mounting options, and DIN clip styles. Our smallest plate is 1.0" x 3.0", while our largest plate is 8.0" x 6.0". The plates themselves are made from Aluminum plate, sturdy FR4 material, or Polycarbonate clear plastic material, and come in several options:

  • solid plate (customer drills their own holes for device mounting)
  • pre-drilled grid of mounting holes
  • pre-routed mounting slots that can be used with velcro straps or screws
  • pre-intalled DIN rail sections installed on a solid plate
  • pre-drilled mounting holes near the corners of the plate
  • pre-routed mounting slots that can be used with metric or imperial cage nuts
The DIN clips that are mounted on the back of the plates come in varying sizes in relation to the size of the plate itself; there are also some options that come with standoffs to allow space between the clip and the plate for more accessible mounting, and some are available with right angle clips -- a great DIN rail space saving option!

For a full list of all of the models in this product line and the differences between them, see the selection matrix below.



Product Number Breakdown

Our product numbers can get a little confusing, especially since there are many product variants available. So here's a breakdown of what they mean. Note that we do not currently build all possible combinations of options; see selection matrix at the bottom of the page for all stocked parts.

DINP XX - XXXX X
Type
DINP   Plate made of FR4
DINPA   Plate made of Aluminum
DINPP   Plate made of 0.220" Polycarbonate, Clear
DINPQ   New! Plate made of 0.375" Polycarbonate, Clear
DIN Clip
01        44.2mm DIN Clip
02        25mm DIN Clip
03        Right Angle DIN Clip, Plate on Left
04        52mm DIN Clip with Standoffs
05        Two 25mm DIN Clips
06        Two 44.2mm DIN Clips
07        Right Angle DIN Clip, Plate on Right
08        44.2mm DIN Clip with standoffs
09        35mm Nylon DIN Clip
10        Two 10x43mm Nylon Din Clips
11        Two 5x33mm Nylon Din Clips
12        25mm DIN Clip with standoffs
Plate Size
xxyy    x.x" width × y.y" height
4060    4.0" x 6.0" (Example)
...
Mounting Options
A          Solid Plate
B          Mounting Holes Grid
C          Mounting Slots (for velcro straps or hardware)
D          DIN Rail Sections installed on plate
E          Several Mounting Holes
F          Long Vertical Slot for Hardware
J          Slots for Metric Cage Nuts
K         Slots for Imperial Cage Nuts


DINP Product Selection Matrix


Plate Size/
Material
Clip Width Solid Plate Mount Holes Mount Slots Right Angle Bracket Stand-offs DIN Rail Section
New!
DINPP11-1030A
1.0" x 3.0"
Polycarbonate
5mm


DINP02-1060A
0.98" x 6.0"
FR4
25mm


DINP02-1080A
0.98" x 8.0"
FR4
25mm

New!
DINPA12-1080x
1.0" x 8.0"
Aluminum
25mm

(Cage Nuts)

New!
DINPQ09-1440A
1.38" x 4.0"
Polycarbonate
35mm


DINP01-1760A
1.74" x 6.0"
FR4
44.2mm


DINP01-1780A
1.74" x 8.0"
FR4
44.2mm


DINP04-2025A
2.0" x 2.5"
FR4
52mm


DINPA01-2060E
2.0" x 6.0"
Aluminum
44.2mm


DINP02-2240A
2.25" x 4.0"
FR4
25mm


DINP02-2240B
2.25" x 4.0"
FR4
25mm

New!
DINPP11-2540A
2.5" x 4.0"
0.22" Thick
Polycarbonate
5mm

New!
DINP03-3035D-x
3.0" x 3.5"
FR4
25mm


DINPA03-3040E
3.0" x 4.0"
Aluminum
25mm

New!
DINP05-3060F
3.0" x 6.0"
FR4
25mm

(For Screws)

DINP02-3060A
3.0" x 6.0"
FR4
25mm


DINP02-3060B
3.0" x 6.0"
FR4
25mm

New!
DINPA01-4040B
4.0" x 4.0"
Aluminum
44.2mm


DINP01-4040A
4.0" x 4.0"
FR4
44.2mm

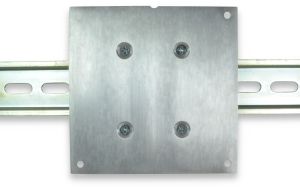

DINPA01-4040E
4.0" x 4.0"
Aluminum
44.2mm


DINP01-4040B
4.0" x 4.0"
FR4
44.2mm

New!
DINPA03-4040A
4.0" x 4.0"
Aluminum
25mm

New!
DINPA03-4040E
4.0" x 4.0"
Aluminum
25mm


DINP03-4040A
4.0" x 4.0"
FR4
25mm


DINP04-4040A
4.0" x 4.0"
FR4
52mm


DINPP10-4040A
4.0" x 4.0"
Polycarbonate
10mm

New!
DINPP10-4040B2
4.0" x 4.0"
0.22" Thick
Polycarbonate
10mm

New!
DINPA08-4060x
4.0" x 6.0"
Aluminum
44.2mm

(Cage Nuts)

New!
DINPQ03-4060A
4.0" x 6.0"
Polycarbonate
25mm

New!
DINPA02-4060B
4.0" x 6.0"
Aluminum
25mm


DINP01-4060A
4.0" x 6.0"
FR4
44.2mm


DINP01-4060B
4.0" x 6.0"
FR4
44.2mm


DINP02-4060C
4.0" x 6.0"
FR4
25mm

(For Velcro)

DINP03-4060C
4.0" x 6.0"
FR4
25mm

(For Velcro)


DINP03-5035D-x
5.0" x 3.5"
FR4
25mm


DINP03-5070A
5.0" x 7.0"
FR4
25mm


DINP03-5270C
5.15" x 7.0"
FR4
25mm

(For Velcro)


DINP03-6035D-x
6.0" x 3.5"
FR4
25mm

New!
DINP01-6040A
6.0" x 4.0"
FR4
44.2mm


DINP01-6060A
6.0" x 6.0"
FR4
44.2mm

New!
DINP03-6360C
6.3" x 6.0"
FR4
25mm

(For Velcro)

New!
DINP03-6080A
6.0" x 8.0"
FR4
25mm

New!
DINP03-6080B
6.0" x 8.0"
FR4
25mm


DINP05-6080A
6.0" x 8.0"
FR4
25mm


DINP05-8060A
8.0" x 6.0"
FR4
25mm


Application-Specific Mounting Plates

Winford Engineering offers several varieties of mounting plates designed for specific products, such as Raspberry Pi, BeagleBone, and Arduino. See the entire list of plates.
