Solid DIN Rail Mounting Plate with Right Angle Bracket - 5.0" x 7.0"

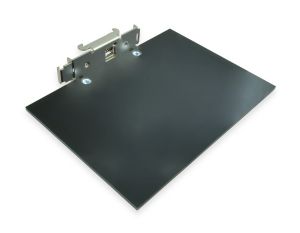

Isometric View (DINP03-4040A shown)

Isometric View (DINP03-4040A shown)
(click image to enlarge)
Isometric View (DINP03-4040A shown)
Rail Side View  (DINP03-4040A shown)
Overhead View (DINP03-4040A shown)
  • Mount your devices to DIN rail
  • Versatile, universal design
  • Sturdy construction
  • Saves valuable space on DIN rail
  • 5.0" x 7.0" plate size
See Also: More DIN Plates,   DIN Clips,   DIN Rail

General Description

Use these sturdy general purpose universal DIN rail mounting plates to mount a variety of devices to standard 35mm DIN rail. This product features a flat plate mounting surface to which you can mount your device, and a metal DIN rail bracket secures the plate to the DIN rail.

The 'right angle' design of this product allows you to mount devices perpedicular to the DIN rail, increasing device density. You can mount hubs, routers, and many other devices at a fraction of the horizontal space they would normally consume.

The mounting plate is made of sturdy 0.125" thick FR4 material (glass-reinforced epoxy laminate material) and is a solid plate. It comes with a sturdy steel DIN rail bracket (part# DINM30) installed on the plate. The DIN brackets may be purchased alone if you desire the bracket without the adapter plate.

These adapter plates are alternately known as DIN rail mounting plates, DIN adapter plates, DIN rail brackets, etc. We sell many varieties of universal DIN rail mounting plates and DIN rail brackets for numerous applications.

Application Examples

The photos below show how a DIN rail mounting plate with a right angle bracket might be mounted to a device.

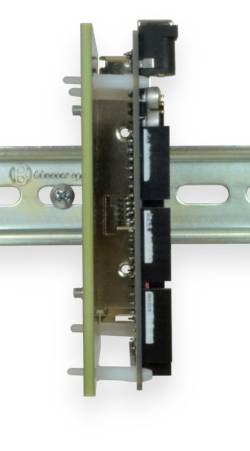

Front View of Device Mounted on DIN Plate and on DIN Rail
Front View of Application
EnlargeClick image to enlarge.

Installation and Removal

Mounting Your Devices

To mount a device onto the plate, simply drill holes in the plate to match the mounting holes on your device.

Installing and Removing the Plate Assembly

These DIN rail adapter plate assemblies are easily attached and detached from the DIN rail. When on the rail, the bracket latches to the rail on both the top and bottom lips of the rail. The bracket should be oriented such that the "fixed" (non spring-loaded) end of the bracket mounts to the top of the DIN rail, thus allowing the fixed end to bear the load. The spring-loaded sliding hooks will then grip the bottom of the DIN rail. This arrangement provides the greatest rigidity and load capacity.

There are two methods for removing the adapter plate from the DIN rail:

  • Push & Pivot: In most cases, the simplest method is to push up on the mounted device, pivot the top of the device out away from the rail, and lower the entire device off the rail. This technique does not require access to the release handle on the bracket which makes this method easier.
  • Release Handle: If, for some reason, the Push & Pivot method does not work for your application, you can also remove the plates from a DIN rail using the release handle on the bracket. Either pull the handle from the bottom edge of the bracket, or push the handle down from the top edge of the bracket. This releases the sliding hooks that grip the bottom of the rail and allows the bottom edge of the bracket to swing out away from the DIN rail. The entire plate and your mounted device can then be lifted off the DIN rail.

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
DINP03-5070ADIN Plate, 5.0" x 7.0"PDF DWG IGES CAD

DIN Plate, 5.0" x 7.0"


Product Details

  • 5.0" x 7.0" plate size
  • Constructed of 0.125" thick FR4 material
  • 25mm wide right angle steel DIN bracket
  • Clips onto 35mm DIN rail
  • Color: Black
  • DIN Rail not included

Pricing and Ordering

Product # Description 1+ 10+ 25+ 50+ RoHS Buy Now
DINP03-5070A DIN Rail Universal Mounting Plate, Right Angle, 5.0" x 7.0"; with Steel Bracket; for 35mm DIN Rail $16.60 $15.25 $15.05 $14.65  Yes

RoHS   Yes
DIN Rail Universal Mounting Plate, Right Angle, 5.0" x 7.0"; with Steel Bracket; for 35mm DIN Rail

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
