DB15HD Premium Extension Cables
- DB15HD connectors:
- Premium Series: 24 AWG and Braid Shield
- Available in two lengths
- Extends all 15 lines straight through
- Currently available in Male-Female
General Description
These are Premium Series extender cables for devices which use a DB-15HD (high density) connector. Although VGA monitors typically use this connector, these cables are not designed for the high frequency signals used in video monitor cables (the monitor would work but you would likely notice "shadows" or "ghosting" on your monitor). These cables are designed for general purpose use (controls, data aquisition, etc).
All 15 pins are extended, and the wiring is straight-through (pin 1 to pin 1, 2 to 2, ...) including a foil and braid shield around the cable and connecting the shells. The wire gauge is 24 AWG. These cables are blue in color. These cables have 3-row high density connectors.
Optional Extra-Long Jack Screw Kit
Winford now offers extra-long jackscrews as an accessory that can be purchased separately if daisy-chaining cables is desired. The existing thumbscrews would be removed and the long jackscrews installed in their place, and secured with the included nuts and washers on the back of the cable. See photo on right for example or order below. The jack screws are designed to accept the thumbscrews on a mating cable, helping secure the cable firmly in place.
These 35mm Jack Screws can also be used to panel mount D-Sub Extension Cables. We recommend using a max of 1/16" (0.0625") for panel thickness when mounting any D-Sub extension cables. For D-sub cutout recommendations please see our D-Sub Panel Cutout Drawing.
Product Documents
| Part # | Description | Data Sheet | PDF Drawing | DWG Drawing |
|---|---|---|---|---|
| EXTP15HD | DB15HD Premium Extension Cable |
|
|
|

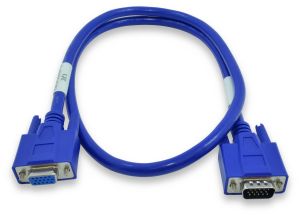

DB15HD Premium Extension Cable
Product Details
- Currently available in Male-Female
- All pins wired 1:1 (e.g pin 1 to pin 1, pin 2 to pin 2, etc.)
- 24 AWG conductors
- Foil and Braid shield
Series Comparison: Basic vs Premium
The Premium (EXTP) cables offer enhanced features compared to the Basic (EXT) series. We will continue to sell both series as stock products.
 |
 |
|
|---|---|---|
| Basic EXT |
Premium EXTP |
|
| Wire AWG | 28 AWG | 24 AWG |
| Shielding | Foil | Foil and Braid |
| Pin Mapping | 1:1 | 1:1 |
| Internal Wire Color Code | Not Guaranteed | Documented |
| Labeled Ends | N/A | Part # and Length |
| Outer Color | Beige | Blue |
Pricing and Ordering
| Product # | Description | 1+ | 10+ | 25+ | 50+ | 100+ | RoHS | Buy Now |
|---|---|---|---|---|---|---|---|---|
Male-Female: |
||||||||
| EXTP15HD-3 | DB15HD Premium 24AWG Extension Cable, Male-Female, Medium Blue, 3Ft | $18.00 | $17.50 | $17.35 | $17.30 | $17.20 | Yes | |
| EXTP15HD-6 | DB15HD Premium 24AWG Extension Cable, Male-Female, Medium Blue, 6Ft | $25.00 | $24.50 | $24.35 | $24.30 | $24.20 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $18.00 |
| 10+ | $17.50 |
| 25+ | $17.35 |
| 50+ | $17.30 |
| 100+ | $17.20 |
| Quantity | Price |
|---|---|
| 1+ | $25.00 |
| 10+ | $24.50 |
| 25+ | $24.35 |
| 50+ | $24.30 |
| 100+ | $24.20 |
Extra-Long Jack Screw Kits
Extra-Long Jack Screw Kit for Daisy-Chain Applications
| Product # | Description | 1+ | 10+ | 50+ | RoHS | Buy Now |
|---|---|---|---|---|---|---|
35mm Jack Screw Kit |
||||||
| DJSK-35.0-A | D-Sub #4-40 Jack Screw Kit, 35mm shaft length; 2 each of jack-screws, flat washers, lock washers, nuts | $4.50 | $4.20 | $4.00 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $4.50 |
| 10+ | $4.20 |
| 50+ | $4.00 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
