Diagnostic Breakout Switch Board: 2x25 0.1" Header

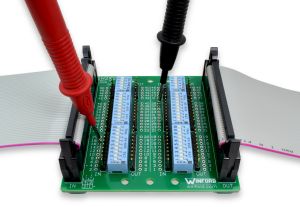

BTS1H2X25-FT (Application)

BTS1H2X25-FT (Application)
(click image to enlarge)
BTS1H2X25-FT (Application)
BTS1H2X25-DIN
BTS1H2X25-FT
BTS1H2X25-FT (Overhead View)
Schematic
Board Diagram
  • Pass-through test board with inline switches
  • Contains (2) 0.1" pitch 50-pin (2x25) male headers
  • Ejector latches on headers provide secure connection and quick disconnection
  • Includes Probe test points and Header test points for every signal
  • Includes switch for each signal line
  • Clearly labeled with connector pin numbers
  • Mounting Options: Rubber Feet, Panel, or DIN Rail
See Also: More Diagnostic Breakout Boards,   2X25 Breakout Board,   IDC 0.1" Header Connectors,   Ribbon Cable


General Description

Insert this diagnostic Breakout Test Board into existing cable connections and get access to signals via test points and headers; this is the pass-through function of this board. In addition, switches allow individual signals to be disconnected from the circuit, which aids in diagnostics, troubleshooting, fault tolerance testing, or re-routing specific signals within a cable. This compact design is meant to be inserted into the cabling of a system during operation. Normal system operation can continue while signals are probed and manipulated. It is a handy test point breakout board with inline interruptor switches.

This board contains dual male 2x25 0.1" pitch (2.54mm) IDC50 headers.

BTS1H2X25 Schematic
Schematic of Breakout Test Board
EnlargeClick image to enlarge.

Applications

  • System Calibration
  • Signal monitoring or measurement
  • Diagnostics and troubleshooting
  • Signal injection and fault tolerance testing
  • Re-routing selected connector signals


A breakout test board may also be referred to as a "measurement breakout", "pass-through board", "test breakout", "inline test adapter", or "breakout testing board".

Product Documents

Part #DescriptionApp Note
BTS1H2X25-xBreakout Test Board Application NotePDF
BTS1H2X25-x

Breakout Test Board Application Note

PDF

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.
BTS1H2X25-DIN
DIN Rail Mount
BTS1H2X25-DIN
EnlargeClick image to enlarge.
Rail not included
BTS1H2X25-FT
Rubber Feet
BTS1H2X25-FT
EnlargeClick image to enlarge.

Product Details

  • Pass-through test board with inline switches
  • Contains (2) 0.1" pitch 50-pin (2x25) male headers
  • Ejector latches on headers provide secure connection and quick disconnection
  • Includes Probe test points and Header test points for every signal
  • Includes switch for each signal line
  • Clearly labeled with connector pin numbers
  • Approximate dimensions: 3.5" x 3.6"
  • Mounting Options: Rubber Feet, Panel, or DIN Rail

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
BTS1H2X25-DIN 2x25 0.1" Pitch Breakout Test Board with Switches, DIN Rail Mount $61.50 $58.50  Yes
BTS1H2X25-FT 2x25 0.1" Pitch Breakout Test Board with Switches, Feet $60.00 $57.00  Yes

BTS1H2X25-DIN
RoHS   Yes
2x25 0.1" Pitch Breakout Test Board with Switches, DIN Rail Mount
QuantityPrice
1+$61.50
10+$58.50
BTS1H2X25-FT
RoHS   Yes
2x25 0.1" Pitch Breakout Test Board with Switches, Feet
QuantityPrice
1+$60.00
10+$57.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
