Flat Ribbon Cable

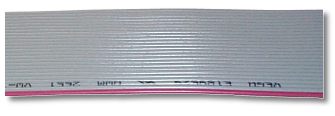

<b>IDC Ribbon Cable</b> (25 wire shown)

IDC Ribbon Cable (25 wire shown)
(click image to enlarge)
<b>IDC Ribbon Cable</b> (25 wire shown)
  • Flat ribbon cable
  • Numerous conductor counts available
See Also: IDC 0.1" Header Connectors


General Description

Use this flat ribbon cable to build your own custom cables. It is available in a number of varieties, each with a different number of conductors. It is perfect for use with insulation discplacement connectors (IDC). One edge of the cable is color coded, which is conventionally used to indicate pin 1 of a cable.

This wire is sold by the foot and cut to length for your order. However, ribbon cable spool sizes are changing. While 100ft spools were previously the most common, 250ft or even 500ft are not uncommon now. We currently have different sized spools, depending on the wire. Orders for 100 feet or more might come in 100 foot spools. Some 100 foot spools might not have a single continuous length (it may be cut at one point), but a spool will not have more than one cut. Orders for over 100 feet, but not a multiple of 100 feet, might receive 100 foot spool(s) plus the remainder as a separate length.

Product Details

  • Flat ribbon cable
  • Wire: 28 AWG stranded
  • Style: UL 2651
  • Wire Pitch: 0.05" (1.27 mm)
  • Max Voltage: 300V

Pricing and Ordering

Product # Description 1+ 100+ RoHS Buy Now
RIB9 Flat Ribbon Cable, 9 Wire, by the Foot $0.32 $0.21  Yes
RIB10 Flat Ribbon Cable, 10 Wire, by the Foot $0.39 $0.28  Yes
RIB15 Flat Ribbon Cable, 15 Wire, by the Foot $0.49 $0.31  Yes
RIB25 Flat Ribbon Cable, 25 Wire, by the Foot $0.63 $0.42  Yes
RIB26 Flat Ribbon Cable, 26 Wire, by the Foot $0.70 $0.48  Yes
RIB40 Flat Ribbon Cable, 40 Wire, by the Foot $0.85 $0.60  Yes
RIB50 Flat Ribbon Cable, 50 Wire, by the Foot $1.00 $0.75  Yes
RIB60 Flat Ribbon Cable, 60 Wire, by the Foot $1.30 $0.95  Yes
RIB64 Flat Ribbon Cable, 64 Wire, by the Foot $1.40 $1.05  Yes

RIB9
RoHS   Yes
Flat Ribbon Cable, 9 Wire, by the Foot
QuantityPrice
1+$0.32
100+$0.21
RIB10
RoHS   Yes
Flat Ribbon Cable, 10 Wire, by the Foot
QuantityPrice
1+$0.39
100+$0.28
RIB15
RoHS   Yes
Flat Ribbon Cable, 15 Wire, by the Foot
QuantityPrice
1+$0.49
100+$0.31
RIB25
RoHS   Yes
Flat Ribbon Cable, 25 Wire, by the Foot
QuantityPrice
1+$0.63
100+$0.42
RIB26
RoHS   Yes
Flat Ribbon Cable, 26 Wire, by the Foot
QuantityPrice
1+$0.70
100+$0.48
RIB40
RoHS   Yes
Flat Ribbon Cable, 40 Wire, by the Foot
QuantityPrice
1+$0.85
100+$0.60
RIB50
RoHS   Yes
Flat Ribbon Cable, 50 Wire, by the Foot
QuantityPrice
1+$1.00
100+$0.75
RIB60
RoHS   Yes
Flat Ribbon Cable, 60 Wire, by the Foot
QuantityPrice
1+$1.30
100+$0.95
RIB64
RoHS   Yes
Flat Ribbon Cable, 64 Wire, by the Foot
QuantityPrice
1+$1.40
100+$1.05

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
