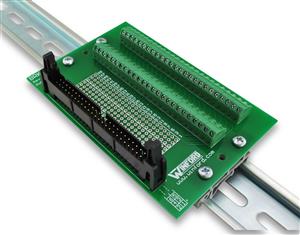

Make connections quickly and reliably with this breakout board, which brings every pin of its male dual row header connector out to screw terminals. The IDC50 header connector has pins spaced at 0.1" pitch.
Each pin is also brought to solder pads (3 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components. The solder pads are arranged in such a way that you can add an additional 2x25 header to the breakout board. It will be connected 1:1 with the existing connector, thus forming a "T" or "Y" connection and allowing an extra cable connection to the board (allows daisy-chaining connections, etc).
This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for interfacing with I/O cards, data acquisition (DAQ) equipment, relay racks, Opto 22 racks, and other devices that use a 2x25 50-position (IDC-50) header connector.
The header connector on this breakout board comes standard with long ejector latches. "Long ejectors" indicates that the ejectors are the correct length to accomodate IDC connectors with strain reliefs installed.
A dual row header is sometimes referred to as an "IDC Header", "IDC connector", or "ribbon cable connector". A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".
|Part #||Description||Data Sheet||PDF Drawing||DWG Drawing||IGES Model||STEP Model|
|BRK2X25-L-DIN||2x25 0.1" Header, DIN Mount|
|BRK2X25-L-FT||2x25 0.1" Header, Rubber Feet|
|Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!|
Pricing and Ordering
|Product #||Description||1+||10+||RoHS||Buy Now|
|2x25 (50 pins) 0.1" Dual Row Header Breakout Board, Long Ejectors, Screw Terminals, DIN Rail Mount||$46.50||$43.50||Yes|
|2x25 (50 pins) 0.1" Dual Row Header Breakout Board, Long Ejectors, Screw Terminals, Feet||$45.00||$42.00||Yes|
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
