Mini Delta Ribbon (MDR) 50-Pin Breakout Board

BRKARMC50F-R6-DIN

BRKARMC50F-R6-DIN
(click image to enlarge)
BRKARMC50F-R6-DIN
BRKARMC50F-R6-DIN (Connector View)
BRKARMC50F-R6-FT
BRKARMC50F-R6-FT (Connector End)
BRKARMC50F-R6-FT (Overhead View)
BRKARMC50F-R6-FT (Connector Latchblock)
BRKARMC50F-S-DIN
BRKARMC50F-S-FT
BRKARMC50F-S-FT (Overhead View)
MDR 50-Pin Connector
  • Mini Delta Ribbon connector
  • Screw terminal for each of the 50 lines, plus shield
  • Solder pad connection space for all 50 lines, plus shield
  • Rubber feet or DIN rail mount
See Also: MDR Cables,   More Breakout Boards,   Centronics 50-Pin Breakout Board,   68-Pin MDR Breakout Board


General Description

Centronics, MDR, VHDCI, HPDSUB  Connector Guide
This breakout board contains a 50-pin Mini D Ribbon (MDR) Female connector. Each of the 50 connector pins is brought out to screw terminal blocks, allowing connections to be made easily. Each pin is also brought to solder pads (2 per pin) at 0.1" spacing, allowing easy addition of 0.1" pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

The connector used on this product goes by several different names, including Mini D Ribbon, Mini Delta Ribbon, MDR, Mini Centronics, Half-Pitch Centronics, HPCN, HPCN50, Half-Pitch CN, and Micro Centronics. It is also occasionally referred to as a SCSI2 connector, though that is not typically a proper use of the term.


These break out boards are perfect for experimentation and prototype work, as well as for use in permanent installations. They are well-suited for interfacing with data acquisition equipment or any other devices that use a Mini D Ribbon connector. A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

MDR Connector Details

The Mini Delta Ribbon (MDR) series of connectors provides a compact arrangement of durable sliding 'ribbon' contacts. The high contact density and good performance at high speeds have yielded many applications for this connector type. These are 'half-pitch' connectors, meaning that the contact spacing is tighter than full-size Centronics connectors, such as those used on our BRKDC36F or BRKDC50F breakout boards. The 'half-pitch' connectors utilize contacts on 0.05" centers.

Winford Engineering currently utilizes MDR connectors from 3M™ on these breakout boards; connector details are listed below.

MDR Connector Details
Manufacturer 3M
Mfg. Part # Right Angle: 10250-55F3PC
Vertical: N10250-6212PC
Threaded Inserts Right Angle: M2.6 thread
Vertical: M2.5 thread
(See Note)
Latch Blocks Present
Jack Sockets Not Included
Note: Other threaded insert options are available. Please contact Winford Engineering to discuss any needs you have.

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP ModelDocument
BRKARMC50F-R6-DIN50-Pin MDR Female Right Angle Connector, DIN MountPDF DWG IGES CAD
BRKARMC50F-R6-FT50-Pin MDR Female Right Angle Connector, Rubber FeetPDF DWG IGES CAD
BRKARMC50F-S-DIN50-Pin MDR Female Straight Connector, DIN MountIGES CAD
BRKARMC50F-S-FT50-Pin MDR Female Straight Connector, Rubber FeetIGES CAD
Connector GuideWhich connector do I have? Consult this helpful identification guide.PDF
BRKARMC50F-R6-DIN

50-Pin MDR Female Right Angle Connector, DIN Mount

PDF DWG IGES CAD
BRKARMC50F-R6-FT

50-Pin MDR Female Right Angle Connector, Rubber Feet

PDF DWG IGES CAD
BRKARMC50F-S-DIN

50-Pin MDR Female Straight Connector, DIN Mount

IGES CAD
BRKARMC50F-S-FT

50-Pin MDR Female Straight Connector, Rubber Feet

IGES CAD
Connector Guide

Which connector do I have? Consult this helpful identification guide.

PDF

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

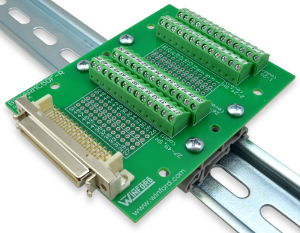

BRKARMC50F-R6-DIN
DIN Rail Mount
BRKARMC50F-R6-DIN
EnlargeClick image to enlarge.
Rail not included

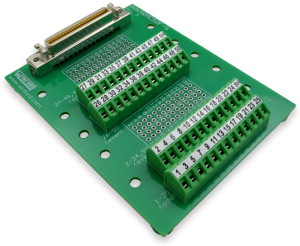

BRKARMC50F-S-FT
Rubber Feet
BRKARMC50F-S-FT
EnlargeClick image to enlarge.

Cables

Winford Engineering offers 50-pin MDR cables (shown below) which are compatible with these breakout boards.
CBMDR50MA-3
MDR Cable
CBMDR50MA-3 pictured
EnlargeClick image to enlarge.
MDR Connector
MDR Connector
EnlargeClick image to enlarge.

Applications

This breakout board is general-purpose in nature and useful when interfacing to a variety of equipment. The servo drive / servo controller market often uses the 50-pin MDR connector to interface to other equipment. This breakout board is designed to work with this type of system to split out I/O signals for connection to other equipment. Servo equipment with the 50-pin MDR connector includes, but is not limited to, the following:

  • Mitsubishi MELSERVO (MR family -- MR-J3, etc)
  • Yaskawa MP940, MP3200, MP Series, MPiec series, and others
  • Panasonic MINAS series
  • and others...

Some equipment vendors offer breakout modules and cables to accommodate convenient wiring for their equipment. Others offer a cable with a 50-pin MDR connector on one end and wire pigtails on the other end. (One such example is the Mitsubishi MR-J3CCN1CBL cable.) Winford Engineering's MDR breakout boards are intended as an alternative option, terminating the equipment I/O pins on a convenient, compact breakout board.

Product Details

  • Mini D-Ribbon (Mini Delta Ribbon, MDR, Mini Centronics) 50-pin connector
  • Screw terminal for each of the 50 lines, plus shield
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 3.84" x 2.9"
  • Rubber feet or DIN rail mount

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
Mini D Ribbon 50-Pin Right Angle Connector:
BRKARMC50F-R6-DIN Mini Centronics/MDR 50-Pin Female Breakout Board, R/A Connector, M2.6 Thread, DIN Rail Mount $61.50 $55.00  Yes
BRKARMC50F-R6-FT Mini Centronics/MDR 50-Pin Female Breakout Board, R/A Connector, M2.6 Thread, Feet $60.00 $53.50  Yes
Mini D Ribbon 50-Pin Straight Connector:
BRKARMC50F-S-DIN Mini Centronics/MDR 50-Pin Female Breakout Board, Straight Connector, M2.5 Thread, DIN Rail Mount $61.50 $55.00  Yes
BRKARMC50F-S-FT Mini Centronics/MDR 50-Pin Female Breakout Board, Straight Connector, M2.5 Thread, Feet $60.00 $53.50  Yes

Mini D Ribbon 50-Pin Right Angle Connector:
BRKARMC50F-R6-DIN
RoHS   Yes
Mini Centronics/MDR 50-Pin Female Breakout Board, R/A Connector, M2.6 Thread, DIN Rail Mount
QuantityPrice
1+$61.50
10+$55.00
BRKARMC50F-R6-FT
RoHS   Yes
Mini Centronics/MDR 50-Pin Female Breakout Board, R/A Connector, M2.6 Thread, Feet
QuantityPrice
1+$60.00
10+$53.50
Mini D Ribbon 50-Pin Straight Connector:
BRKARMC50F-S-DIN
RoHS   Yes
Mini Centronics/MDR 50-Pin Female Breakout Board, Straight Connector, M2.5 Thread, DIN Rail Mount
QuantityPrice
1+$61.50
10+$55.00
BRKARMC50F-S-FT
RoHS   Yes
Mini Centronics/MDR 50-Pin Female Breakout Board, Straight Connector, M2.5 Thread, Feet
QuantityPrice
1+$60.00
10+$53.50

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
