DB15HD (High Density) Dual Breakout Board

BRK15HDMF-S-DIN

BRK15HDMF-S-DIN
(click image to enlarge)
BRK15HDMF-S-DIN
BRK15HDMF-S-FT
  • Both DB15HD Male and Female connectors
  • Easily insert inline, for tapping into I/O signals
  • Screw terminal for each of the 15 lines, plus shield
  • Solder pad connection space for all 15 lines, plus shield
  • Supports addition of .1" pin headers
  • Rubber feet or DIN rail mount
See Also: DB15HD Slim Breakout Board,   Single DB15HD Breakout Board,   Standard Density DB15 Dual Breakout Boards,   More Breakout Boards,   DB15HD Breadboard Adapters,   DB15HD Cables


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB15HD connectors out to screw terminals.

These breakout boards feature two DB15HD connectors (one male, one female) wired 1:1, with all pins connected to screw terminals for easy wiring connections. Having two connectors allows the board to be easily inserted "in-line" with an existing connection, allowing signals to pass through while being monitored, or to work with "daisy-chained" equipment.

Each pin, including shield, is also brought to solder pads (5 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

Note: This product contains the 'high density' DB15HD connector with 3 rows of pins. See the DB15 products for the 2-row 'standard density' 15-pin DSUB connector.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, DAQ devices, CNC equipment, and other devices that uses a DB-15HD connector.

Technically, the correct term for a DB15HD connector is DE15, but that term is not commonly used.

Need something different? We stock a variety of DB15HD breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Breakout boards with enclosures Need an enclosed breakout board? Winford offers our BRKE line of boards, which come installed in enclosures.

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRK15HDMF-S-DINDB15HD Dual Breakout Board, DIN MountPDF DWG IGES CAD
BRK15HDMF-S-FTDB15HD Dual Breakout Board, Rubber FeetPDF DWG IGES CAD
BRK15HDMF-S-DIN

DB15HD Dual Breakout Board, DIN Mount

PDF DWG IGES CAD
BRK15HDMF-S-FT

DB15HD Dual Breakout Board, Rubber Feet

PDF DWG IGES CAD

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

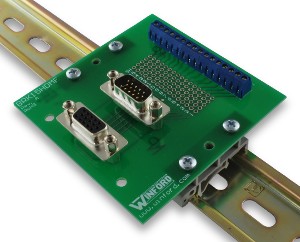

BRK15HDMF-S-DIN
DIN Rail Mount
BRK15HDMF-S-DIN
EnlargeClick image to enlarge.
Rail not included

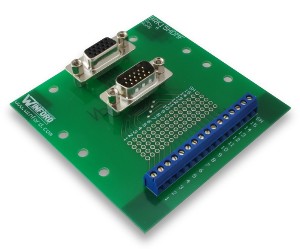

BRK15HDMF-S-FT
Rubber Feet
BRK15HDMF-S-FT
EnlargeClick image to enlarge.

Product Details

  • DB15 High Density (HD) 3-row connectors
  • Male and Female connected in parallel with each other and screw terminals
  • Screw terminal for each of the 15 lines, plus shield
  • Solder pad connection holes, five (5) per line
  • Supports addition of .1" pin headers
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 3.28" x 3.25"
  • Rubber feet or DIN rail mount

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
BRK15HDMF-S-DIN DB15HD Dual Breakout Board, Male-Female, Straight Connectors, DIN Rail Mount $23.50 $22.00  Yes
BRK15HDMF-S-FT DB15HD Dual Breakout Board, Male-Female, Straight Connectors, Feet $22.00 $20.50  Yes

BRK15HDMF-S-DIN
RoHS   Yes
DB15HD Dual Breakout Board, Male-Female, Straight Connectors, DIN Rail Mount
QuantityPrice
1+$23.50
10+$22.00
BRK15HDMF-S-FT
RoHS   Yes
DB15HD Dual Breakout Board, Male-Female, Straight Connectors, Feet
QuantityPrice
1+$22.00
10+$20.50

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
