DB15 Dual Breakout Boards

BRK15MF-S-DIN

BRK15MF-S-DIN
(click image to enlarge)
BRK15MF-S-DIN
BRK15MF-S-FT
  • Both DB15 Male and Female connectors
  • Easily insert inline, for tapping into I/O signals
  • Screw terminal for each of the 15 lines, plus shield
  • Solder pad connection space for all 15 lines, plus shield
  • Supports addition of .1" pin headers
  • Rubber feet or DIN rail mount
See Also: DB15 Slim Breakout Board,   Single DB15 Breakout Board,   High Density DB15 Dual Breakout Boards,   More Breakout Boards,   DB15 Breadboard Adapters,   DB15 Cables


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB15 connectors out to screw terminals.

These breakout boards feature two DB15 connectors (one male, one female) wired 1:1, with all pins connected to screw terminals for easy wiring connections. Having two connectors allows the board to be easily inserted "in-line" with an existing connection, allowing signals to pass through while being monitored, or to work with "daisy-chained" equipment.

Each pin, including shield, is also brought to solder pads (5 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

Note: This product contains the 'standard density' DB15 connector with 2 rows of pins. See the DB15HD products for the 3-row 'high density' 15-pin DSUB connector.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, CNC equipment, and other devices that use a DB-15 connector.

Technically, the correct term for a DB15 connector is DA15, but that term is not commonly used.

Need something different? We stock a variety of DB15 breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Breakout boards with enclosures Need an enclosed breakout board? Winford offers our BRKE line of boards, which come installed in enclosures.

Product Documents

Part #DescriptionData SheetPDF DrawingDWG DrawingIGES ModelSTEP Model
BRK15MF-S-DINDB15 Dual, Straight, DIN MountPDF PDF DWG IGES CAD
BRK15MF-S-FTDB15 Dual, Straight, Rubber FeetPDF PDF DWG IGES CAD
BRK15MF-S-DIN

DB15 Dual, Straight, DIN Mount

PDF PDF DWG IGES CAD
BRK15MF-S-FT

DB15 Dual, Straight, Rubber Feet

PDF PDF DWG IGES CAD

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

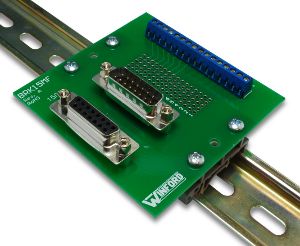

BRK15MF-S-DIN
DIN Rail Mount
BRK15MF-S-DIN
EnlargeClick image to enlarge.
Rail not included

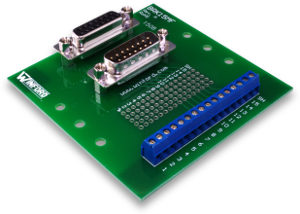

BRK15MF-S-FT
Rubber Feet
BRK15MF-S-FT
EnlargeClick image to enlarge.

Product Details

  • DB15 Standard Density 2-row connectors
  • Male and Female connected in parallel with each other and screw terminals
  • Screw terminal for each of the 15 lines, plus shield
  • Solder pad connection holes, five (5) per line
  • Supports addition of .1" pin headers
  • Screw terminals accommodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 3.28" x 3.25"
  • Rubber feet or DIN rail mount

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
BRK15MF-S-DIN DB15 Dual Breakout Board, Male-Female, Straight Connectors, DIN Rail Mount $24.10 $22.45  Yes
BRK15MF-S-FT DB15 Dual Breakout Board, Male-Female, Straight Connectors, Feet $22.45 $20.85  Yes

BRK15MF-S-DIN
RoHS   Yes
DB15 Dual Breakout Board, Male-Female, Straight Connectors, DIN Rail Mount
QuantityPrice
1+$24.10
10+$22.45
BRK15MF-S-FT
RoHS   Yes
DB15 Dual Breakout Board, Male-Female, Straight Connectors, Feet
QuantityPrice
1+$22.45
10+$20.85

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
