DB15HD Breakout Board

BRK15HDF-R-DIN

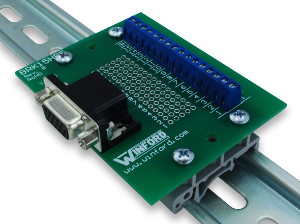

BRK15HDF-R-DIN
(click image to enlarge)
BRK15HDF-R-DIN
BRK15HDF-R-FT
BRK15HDF-R-FT (Overhead View)
BRK15HDMV2-R-DIN
BRK15HDMV2-R-FT
BRK15HDMV2-R-FT (Overhead View)
  • Available with DB15HD 3-row High Density Male or Female connector
  • Screw terminal for each of the 15 lines, plus shield
  • Solder pad connection space for all 15 lines, plus shield
  • Supports addition of .1" pin headers
  • Rubber feet or DIN rail mount
See Also: DB15HD Slim Breakout Boards,   More Breakout Boards,   DB15HD Extension Cables,   DB15HD Splitter "Y" Cables


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB15HD connector out to screw terminals. This product is available with both male and female connectors.

Each pin, including shield, is also brought to solder pads (5 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

Note: This product contains the 'high density' DB15HD connector with 3 rows of pins. See the DB15 products for the 2-row 'standard density' 15-pin DSUB connector.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, DAQ devices, CNC equipment, and other devices that uses a DB-15HD connector.

Technically, the correct term for a DB15HD connector is DE15, but that term is not commonly used.

Need something different? We stock a variety of DB15HD breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Breakout boards with enclosures Need an enclosed breakout board? Winford offers our BRKE line of boards, which come installed in enclosures.

Product Documents

Part #DescriptionData SheetPDF DrawingDWG DrawingIGES ModelSTEP Model
BRK15HDF-R-DINDB15HD Female, Right Angle, DIN MountPDF PDF DWG IGES CAD
BRK15HDF-R-FTDB15HD Female, Right Angle, Rubber FeetPDF PDF DWG IGES CAD
BRK15HDMV2-R-DINDB15HD Male, Right Angle, DIN MountPDF PDF DWG IGES CAD
BRK15HDMV2-R-FTDB15HD Male, Right Angle, Rubber FeetPDF PDF DWG IGES CAD
-D-Sub Panel Cutout DrawingPDF DWG
BRK15HDF-R-DIN

DB15HD Female, Right Angle, DIN Mount

PDF PDF DWG IGES CAD
BRK15HDF-R-FT

DB15HD Female, Right Angle, Rubber Feet

PDF PDF DWG IGES CAD
BRK15HDMV2-R-DIN

DB15HD Male, Right Angle, DIN Mount

PDF PDF DWG IGES CAD
BRK15HDMV2-R-FT

DB15HD Male, Right Angle, Rubber Feet

PDF PDF DWG IGES CAD
-

D-Sub Panel Cutout Drawing

PDF DWG

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

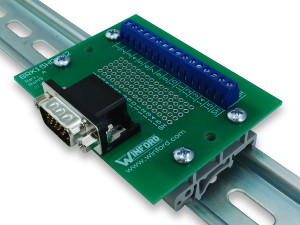

BRK15HDMV2-R-DIN
DIN Rail Mount
BRK15HDMV2-R-DIN
EnlargeClick image to enlarge.
Rail not included

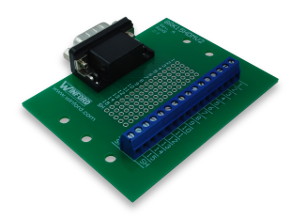

BRK15HDMV2-R-FT
Rubber Feet
BRK15HDMV2-R-FT
EnlargeClick image to enlarge.

Product Details

  • DB15 High Density (HD) 3-row connector
  • Screw terminal for each of the 15 lines, plus shield
  • Solder pad connection holes, five (5) per line
  • Supports addition of .1" pin headers
  • Screw terminals accommodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 2.38" x 3.1"
  • Rubber feet or DIN rail mount

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
DB15HD Female Right Angle Connector:
BRK15HDF-R-DIN DB15HD Female Breakout Board, R/A Connector, DIN Rail Mount $18.75 $17.65  Yes
BRK15HDF-R-FT DB15HD Female Breakout Board, R/A Connector, Feet $17.10 $16.05  Yes
DB15HD Male Right Angle Connector:
BRK15HDMV2-R-DIN DB15HD Male Breakout Board, R/A Connector, DIN Rail Mount $18.75 $17.65  Yes
BRK15HDMV2-R-FT DB15HD Male Breakout Board, R/A Connector, Feet $17.10 $16.05  Yes

DB15HD Female Right Angle Connector:
BRK15HDF-R-DIN
RoHS   Yes
DB15HD Female Breakout Board, R/A Connector, DIN Rail Mount
QuantityPrice
1+$18.75
10+$17.65
BRK15HDF-R-FT
RoHS   Yes
DB15HD Female Breakout Board, R/A Connector, Feet
QuantityPrice
1+$17.10
10+$16.05
DB15HD Male Right Angle Connector:
BRK15HDMV2-R-DIN
RoHS   Yes
DB15HD Male Breakout Board, R/A Connector, DIN Rail Mount
QuantityPrice
1+$18.75
10+$17.65
BRK15HDMV2-R-FT
RoHS   Yes
DB15HD Male Breakout Board, R/A Connector, Feet
QuantityPrice
1+$17.10
10+$16.05

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
