Steel Right Angle DIN Rail Mounting Clips

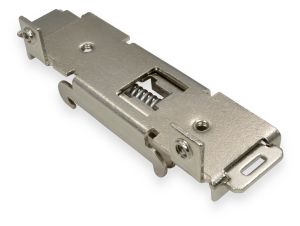

DINM30

DINM30
(click image to enlarge)
DINM30
Side View of DINM30
Overhead View of DINM30
DINM31
Side View of DINM31
Overhead View of DINM31
Rail Side of Clips
Application Example
  • Mount devices perpendicular to rail to save space.
  • Sturdy metal construction
  • Versatile design
  • Available with tabs on the Left (DINM30) or on the Right (DINM31)
  • Clips onto 35mm DIN rail
  • DIN Rail sold separately
Scroll to Buy
See Also: DIN Rail,   More DIN Clips,   DIN Rail Mounting Plates

General Description

These sturdy steel DIN rail mounting brackets are useful for mounting a wide variety of devices onto standard 35 mm DIN rail. Their unique feature is the threaded mounting tabs oriented perpendicular to the DIN rail, allowing perpendicular mounting of devices and saving valuable space on the DIN rail. Mount hubs, routers, and many other devices which would normally consume horizontal space.

This product is available in a few configurations to facilitate mounting a wide variety of devices:

  • Mounting tabs on the Left, Standard Release: DINM30
  • Mounting tabs on the Left, Latch Release: DINM30LR
  • Mounting tabs on the Right, Standard Release: DINM31

These brackets latch onto both the top and bottom lips of the rail with the fixed (non spring-loaded) end of the bracket on the top of the rail to bear the weight of its device.

Rail Clearance / Installation & Removal Method

Clips are offered in two different versions, which impacts both how it can be installed/removed, as well as its rigidity on the rail:

  • Lift & Pivot (More Rail Clearance): The lower bumper on Lift & Pivot clips has enough spacing from the bottom of the DIN rail that the clip can be lifted/tilted on and off the rail without needing to depress the Latch tab. This provides easy installation and removal from the DIN rail, even if the Latch is hard to reach behind your device, but also means the clip may be able to tilt sideways under heavy side loads.
  • Latch Release (Tighter Rail Clearance): The bumper on Latch Release clips has a tighter spacing to the bottom of the DIN rail. This constrains the movement/tilting of the clip, making it more rigid under side loads. However, it also means that you must depress the Latch tab in order to install or remove these clips from the DIN rail.

    Brackets with a smaller bumper have more space between the bracket and the DIN rail.
    Lift & Pivot: More Rail Clearance
    EnlargeClick image to enlarge.
    Brackets with a wider bumper have less space between the bracket and the DIN rail.
    Latch Release: Tighter Rail Clearance
    EnlargeClick image to enlarge.

    The tighter rail clearance of the Latch Release version restricts movement of the bracket on the rail, making the assembly more rigid for unusual side loading or rotational forces. This can be helpful, for example, when dealing with arrangements that have unusually stiff cables.

    More rail clearance increases the movement of the bracket on the rail, but allows for easier removal.
    Lift & Pivot: More Rail Clearance
    EnlargeClick image to enlarge.
    Tighter rail clearance restricts the movement of the bracket on the rail.
    Latch Release: Tighter Rail Clearance
    EnlargeClick image to enlarge.
    More rail clearance is less likely to keep the bracket from twisting on the rail.
    Lift & Pivot: More Rail Clearance with
    Unusually Stiff Cable Assembly
    EnlargeClick image to enlarge.
    Tighter rail clearance keeps the bracket in place, even when unusually stiff cables are involved in the assembly.
    Latch Release: Tighter Rail Clearance with
    Unusually Stiff Cable Assembly
    EnlargeClick image to enlarge.

    Removal from a Rail

    Removing Lift & Pivot Clips: DINM30, DINM31

    Typically the simplest method to remove the Lift & Pivot clips is to lift up on the mounted device, pivot the top of the device out away from the rail, and lower the entire device off the rail. This technique is possible because of the larger amount of rail clearance and does not require access to the release handle, which makes this method easier, especially if a bulky device is mounted to the clip and is blocking easy access to the latch tabs. However, you can also use the release handle method to remove these brackets if desired.

    Lift & Pivot Clip Removal.
    Lift & Pivot Clip Removal Illustration
    EnlargeClick image to enlarge.

    Removing Latch Release Clips: DINM30LR

    To remove Latch Release brackets from a DIN rail, either pull the release handle from the bottom edge of the bracket, or push the handle down from the top edge of the bracket. This releases the sliding hooks that grip the bottom of the rail and allows the bottom edge of the bracket to swing out away from the DIN rail. The entire bracket can then be lifted off the DIN rail.

    Because these models have tighter rail clearance, the release handle must be actuated in order for the bracket to be able to move far enough away from the rail to detach. For this reason, the "lift and pivot" method will not work.

    Use the release handle to remove a Latch Release bracket from the DIN rail.
    Latch Release Removal Illustration
    EnlargeClick image to enlarge.

    Mounting Hardware

    The DINM30, DINM30LR, and DINM31 contain four M4 threaded (M4 x 0.7mm) mounting holes (two on the main body of the bracket and two on the right angle mounting tabs). Winford offers M4 machine screws (sold separately below) that work well with these clips.

    Product Documents

    Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
    DINM30Steel DIN Clip, M4x0.7mm Threaded holes, 25mm width, Right Angle Mounting Tabs; Tabs on Left Side; Lift & PivotPDF DWG IGES CAD
    DINM30LRSteel DIN Clip, M4x0.7mm Threaded holes, 25mm width, Right Angle Mounting Tabs; Tabs on Left Side; Latch ReleasePDF DWG IGES CAD
    DINM31Steel DIN Clip, M4x0.7mm Threaded holes, 25mm width, Right Angle Mounting Tabs; Tabs on Right Side; Lift & PivotPDF DWG IGES CAD
    DINM30

    Steel DIN Clip, M4x0.7mm Threaded holes, 25mm width, Right Angle Mounting Tabs; Tabs on Left Side; Lift & Pivot

    PDF DWG IGES CAD
    DINM30LR

    Steel DIN Clip, M4x0.7mm Threaded holes, 25mm width, Right Angle Mounting Tabs; Tabs on Left Side; Latch Release

    PDF DWG IGES CAD
    DINM31

    Steel DIN Clip, M4x0.7mm Threaded holes, 25mm width, Right Angle Mounting Tabs; Tabs on Right Side; Lift & Pivot

    PDF DWG IGES CAD

    Product Details

    • Mount devices perpendicular to rail to save space.
    • Nickel-plated steel
    • Sturdy metal construction
    • Available with tabs on the Left (DINM30) or on the Right (DINM31)
    • Clips onto 35mm DIN rail
    • DIN Rail sold separately

    Pricing and Ordering

    Product # Description 1+ 10+ 100+ RoHS Buy Now
    DINM30 DIN Rail Mounting Clip, Steel, 25mm Width, R/A Tabs on Left, M4x0.7mm Threaded Holes, Lift and Pivot $3.60 $3.35 $2.95  Yes
    DINM30LR DIN Rail Mounting Clip, Steel, 25mm Width, R/A Tabs on Left, M4x0.7mm Threaded Holes, Latch Release $3.60 $3.35 $2.95  Yes
    DINM31 DIN Rail Mounting Clip, Steel, 25mm Width, R/A Tabs on Right, M4x0.7mm Threaded Holes, Lift and Pivot $3.60 $3.35 $2.95  Yes
    DINM30
    RoHS   Yes
    DIN Rail Mounting Clip, Steel, 25mm Width, R/A Tabs on Left, M4x0.7mm Threaded Holes, Lift and Pivot
    QuantityPrice
    1+$3.60
    10+$3.35
    100+$2.95
    DINM30LR
    RoHS   Yes
    DIN Rail Mounting Clip, Steel, 25mm Width, R/A Tabs on Left, M4x0.7mm Threaded Holes, Latch Release
    QuantityPrice
    1+$3.60
    10+$3.35
    100+$2.95
    DINM31
    RoHS   Yes
    DIN Rail Mounting Clip, Steel, 25mm Width, R/A Tabs on Right, M4x0.7mm Threaded Holes, Lift and Pivot
    QuantityPrice
    1+$3.60
    10+$3.35
    100+$2.95

    Mounting Hardware

    We offer metric mounting hardware for the threaded holes on the DINM30 clips.
    Product # Description 1+ 5+ 10+ RoHS Buy Now
    Pan Head:
    SCMAPP-M4-A-8-100 Screw, Machine, Pan Head, Phillips, M4 x 0.7mm Thread, 8mm Length, Bag of 100 $5.70 $5.20 $4.60  Yes
    SCMAPP-M4-A-10-100 Screw, Machine, Pan Head, Phillips, M4 x 0.7mm Thread, 10mm Length, Bag of 100 $5.75 $5.30 $4.70  Yes
    SCMAPP-M4-A-12-100 Screw, Machine, Pan Head, Phillips, M4 x 0.7mm Thread, 12mm Length, Bag of 100 $5.80 $5.35 $4.75  Yes
    Flat Head:
    SCMAFP-M4-A-8-100 Screw, Machine, Flat Head, Phillips, M4 x 0.7mm Thread, 8mm Length, Bag of 100 $4.80 $4.35 $3.85  Yes
    SCMAFP-M4-A-10-100 Screw, Machine, Flat Head, Phillips, M4 x 0.7mm Thread, 10mm Length, Bag of 100 $5.35 $4.90 $4.30  Yes
    SCMAFP-M4-A-12-100 Screw, Machine, Flat Head, Phillips, M4 x 0.7mm Thread, 12mm Length, Bag of 100 $5.40 $4.95 $4.40  Yes
    Pan Head:
    SCMAPP-M4-A-8-100
    RoHS   Yes
    Screw, Machine, Pan Head, Phillips, M4 x 0.7mm Thread, 8mm Length, Bag of 100
    QuantityPrice
    1+$5.70
    5+$5.20
    10+$4.60
    SCMAPP-M4-A-10-100
    RoHS   Yes
    Screw, Machine, Pan Head, Phillips, M4 x 0.7mm Thread, 10mm Length, Bag of 100
    QuantityPrice
    1+$5.75
    5+$5.30
    10+$4.70
    SCMAPP-M4-A-12-100
    RoHS   Yes
    Screw, Machine, Pan Head, Phillips, M4 x 0.7mm Thread, 12mm Length, Bag of 100
    QuantityPrice
    1+$5.80
    5+$5.35
    10+$4.75
    Flat Head:
    SCMAFP-M4-A-8-100
    RoHS   Yes
    Screw, Machine, Flat Head, Phillips, M4 x 0.7mm Thread, 8mm Length, Bag of 100
    QuantityPrice
    1+$4.80
    5+$4.35
    10+$3.85
    SCMAFP-M4-A-10-100
    RoHS   Yes
    Screw, Machine, Flat Head, Phillips, M4 x 0.7mm Thread, 10mm Length, Bag of 100
    QuantityPrice
    1+$5.35
    5+$4.90
    10+$4.30
    SCMAFP-M4-A-12-100
    RoHS   Yes
    Screw, Machine, Flat Head, Phillips, M4 x 0.7mm Thread, 12mm Length, Bag of 100
    QuantityPrice
    1+$5.40
    5+$4.95
    10+$4.40

    All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
