Mini Null Modem Adapters

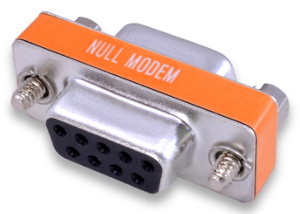

<b>MGCNM9FF</b> (Female to Female)

MGCNM9FF (Female to Female)
(click image to enlarge)
<b>MGCNM9FF</b> (Female to Female)
<b>MGCNM9FF</b> (Overhead View)
<b>MGCNM9MF</b> (Male to Female)
<b>MGCNM9MM</b> (Male to Male)
  • Compact null modem serial connection
  • Provides "cross-over" connection for serial devices>
  • Available in Female-Female, Male-Female and Male-Male
See Also: Null Modem Cables,   DB9 Extension Cables,   DB9 Breakout Boards,   DB9 Breadboard Adapters


General Description

Use these handy adaptors to join serial devices together. These "cross over" the transmit, receive, and control lines to allow the RS-232 ports of two PCs to communicate with each other. They can be used in other similar scenarios as well. The compact size of these adapters makes them ideal for tight spaces. These are available as Female-Female, Male-Female, and Male-Male adapters. The same functionality is available in null modem cables as well.

Product Documents

Part #DescriptionPDF Drawing
MGCNM9FFNull Modem Adapter, DB9 Female-FemalePDF
MGCNM9FF

Null Modem Adapter, DB9 Female-Female

PDF

For each of these null modem adapters, the pin mapping is as follows:

SignalDB9 PinDB9 PinSignal
Receive23Transmit
Transmit32Receive
DTR (Data Terminal Ready)46, 1DSR (Data Set Ready), Carrier Detect
Ground55Ground
DSR (Data Set Ready), Carrier Detect6, 14DTR (Data Terminal Ready)
RTS (Request to Send)78CTS (Clear to Send)
CTS (Clear to Send)87RTS (Request to Send)

Note: Pin 9 is not connected on either side.

Pricing and Ordering

Product # Description 1+ 10+ 50+ 100+ RoHS Buy Now
MGCNM9FF Mini Null Modem Adapter, DB9 Female - DB9 Female $2.75 $2.49 $2.25 $1.90  Yes
MGCNM9MF Mini Null Modem Adapter, DB9 Male - DB9 Female $2.75 $2.49 $2.25 $1.90  Yes
MGCNM9MM Mini Null Modem Adapter, DB9 Male - DB9 Male $2.75 $2.49 $2.25 $1.90  Yes

MGCNM9FF
RoHS   Yes
Mini Null Modem Adapter, DB9 Female - DB9 Female
QuantityPrice
1+$2.75
10+$2.49
50+$2.25
100+$1.90
MGCNM9MF
RoHS   Yes
Mini Null Modem Adapter, DB9 Male - DB9 Female
QuantityPrice
1+$2.75
10+$2.49
50+$2.25
100+$1.90
MGCNM9MM
RoHS   Yes
Mini Null Modem Adapter, DB9 Male - DB9 Male
QuantityPrice
1+$2.75
10+$2.49
50+$2.25
100+$1.90

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
