DB9 Extension Cables

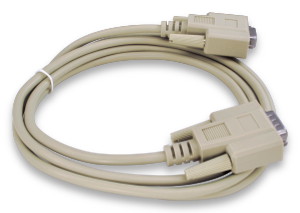

<b>EXT9-6</b> (Male to Female)

EXT9-6 (Male to Female)
(click image to enlarge)
<b>EXT9-6</b> (Male to Female)
<b>EXT9-1</b> (Male to Female)
<b>EXT9F-6</b> (Female to Female)
<b>EXT9M-6</b> (Male to Male)
DB9 Female Connector
DB9 Male Connector
  • DB9 connectors:
    DB9 connector
  • Variety of lengths available
  • Extends all 9 lines straight through
  • Available in Male-Female, Male-Male, and Female-Female
See Also: Connectors,   DB9 Breakout Boards,   DB9 Breadboard Adapters


General Description

These are extender cables for any device which uses a DB-9 connector. They are available in a variety of lengths and genders. All nine pins are extended, and the wiring is straight-through (pin 1 to pin 1, 2 to 2, ...) including a foil shield around the cable and connecting the shells. The conductors are 28AWG wire. These cables are beige in color.

Extra long jack screw example

Optional Extra-Long Jack Screw Kit

Winford now offers extra-long jackscrews as an accessory that can be purchased separately if daisy-chaining cables is desired. The existing thumbscrews would be removed and the long jackscrews installed in their place, and secured with the included nuts and washers on the back of the cable. See photo on right for example or order below. The jack screws are designed to accept the thumbscrews on a mating cable, helping secure the cable firmly in place.

Product Details

  • Available in Male-Female, Male-Male, and Female-Female
  • All pins wired 1:1 (e.g pin 1 to pin 1, pin 2 to pin 2, etc.)
  • 28 AWG conductors
  • Foil shielded

Series Comparison: Basic vs Premium

The Premium (EXTP) cables offer enhanced features compared to the Basic (EXT) series. We will continue to sell both series as stock products.

EXT thumbnail EXTP thumbnail
Basic
EXT
Premium
EXTP
Wire AWG 28 AWG 24 AWG
Shielding Foil Foil and Braid
Pin Mapping 1:1 1:1
Internal Wire Color Code Not Guaranteed Documented
Labeled Ends N/A Part # and Length
Outer Color Beige Blue

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
Male-Female:
EXT9-1 DB9 Extension Cable, Male-Female, 1Ft $3.40 $3.15  Yes
EXT9-2 DB9 Extension Cable, Male-Female, 2Ft $3.85 $3.50  Yes
EXT9-3 DB9 Extension Cable, Male-Female, 3Ft $4.45 $4.00  Yes
EXT9-6 DB9 Extension Cable, Male-Female, 6Ft $5.50 $5.25  Yes
EXT9-10 DB9 Extension Cable, Male-Female, 10Ft $6.35 $5.75  Yes
EXT9-25 DB9 Extension Cable, Male-Female, 25Ft $9.85 $9.60  Yes
EXT9-50 DB9 Extension Cable, Male-Female, 50Ft $19.00 $17.25  Yes
Female-Female:
EXT9F-6 DB9 Extension Cable, Female-Female, 6Ft $5.50 $5.25  Yes
EXT9F-10 DB9 Extension Cable, Female-Female, 10Ft $6.60 $6.00  Yes
Male-Male:
EXT9M-6 DB9 Extension Cable, Male-Male, 6Ft $5.50 $5.25  Yes
EXT9M-10 DB9 Extension Cable, Male-Male, 10Ft $6.60 $6.00  Yes

Male-Female:
EXT9-1
RoHS   Yes
DB9 Extension Cable, Male-Female, 1Ft
QuantityPrice
1+$3.40
10+$3.15
EXT9-2
RoHS   Yes
DB9 Extension Cable, Male-Female, 2Ft
QuantityPrice
1+$3.85
10+$3.50
EXT9-3
RoHS   Yes
DB9 Extension Cable, Male-Female, 3Ft
QuantityPrice
1+$4.45
10+$4.00
EXT9-6
RoHS   Yes
DB9 Extension Cable, Male-Female, 6Ft
QuantityPrice
1+$5.50
10+$5.25
EXT9-10
RoHS   Yes
DB9 Extension Cable, Male-Female, 10Ft
QuantityPrice
1+$6.35
10+$5.75
EXT9-25
RoHS   Yes
DB9 Extension Cable, Male-Female, 25Ft
QuantityPrice
1+$9.85
10+$9.60
EXT9-50
RoHS   Yes
DB9 Extension Cable, Male-Female, 50Ft
QuantityPrice
1+$19.00
10+$17.25
Female-Female:
EXT9F-6
RoHS   Yes
DB9 Extension Cable, Female-Female, 6Ft
QuantityPrice
1+$5.50
10+$5.25
EXT9F-10
RoHS   Yes
DB9 Extension Cable, Female-Female, 10Ft
QuantityPrice
1+$6.60
10+$6.00
Male-Male:
EXT9M-6
RoHS   Yes
DB9 Extension Cable, Male-Male, 6Ft
QuantityPrice
1+$5.50
10+$5.25
EXT9M-10
RoHS   Yes
DB9 Extension Cable, Male-Male, 10Ft
QuantityPrice
1+$6.60
10+$6.00

Extra-Long Jack Screw Kits


Extra long jack screw example

Extra-Long Jack Screw Kit for Daisy-Chain Applications

Product # Description 1+ 10+ 50+ RoHS Buy Now
35mm Jack Screw Kit
DJSK-35.0-A D-Sub #4-40 Jack Screw Kit, 35mm shaft length; 2 each of jack-screws, flat washers, lock washers, nuts $4.50 $4.20 $4.00  Yes

35mm Jack Screw Kit
DJSK-35.0-A
RoHS   Yes
D-Sub #4-40 Jack Screw Kit, 35mm shaft length; 2 each of jack-screws, flat washers, lock washers, nuts
QuantityPrice
1+$4.50
10+$4.20
50+$4.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
