MGC15HDF: DB15HD Female	MGC15HDM: DB15 Male	DB15HD Pin Arrangement

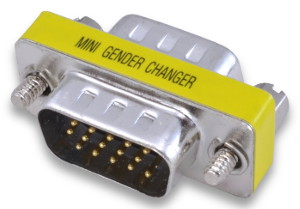

DB15HD Gender Changers
		(male connector shown)

General Description

Use these handy adapters to connect two DB-15HD connectors of the same gender. Choose from Male-Male or Female-Female varieties. The DB15HD connector is most often found on VGA computer monitor cables and connectors, but can be used for many other applications. Technically, the correct term for the DB15 High Density connector is DE15, so this can also be referred to as a DE15 Gender Changer. Sometimes, the terms HD15 and DBHD15 are also used.

Pins are connected 1 to 1, 2 to 2, etc. The MGC15HDF and MGC15HDM have all 15 pins connected through. The VGA versions of this product (MGC15HDVF and MGC15HDVM) do not connect pin 9 through since VGA cables do not use pin 9.

The compact size of these adapters makes them ideal for tight spaces.

Pricing and Ordering

Product #	Description	Quantity Pricing		RoHS	Buy Now
Product #	Description	1+	10+	RoHS	Buy Now
All 15 Pins Connected:
MGC15HDF	DB15HD Female-Female Mini Gender Changer	$2.99	$2.75	Yes
MGC15HDM	DB15HD Male-Male Mini Gender Changer	$2.99	$2.75	No
VGA Version (No Pin 9):
MGC15HDVF	DB15HD VGA Female-Female Mini Gender Changer, No Pin 9	$2.99	$2.75	No
MGC15HDVM	DB15HD VGA Male-Male Mini Gender Changer, No Pin 9	$2.99	$2.75	No

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
What is RoHS? If you need a RoHS version of a non-RoHS product, please contact us.
