DB9 Premium Extension Cables
- DB9 connectors:
- Premium Series: 24 AWG and Braid Shield
- Available in three lengths
- Extends all 9 lines straight through
- Currently available in Male-Female
General Description
These are Premium Series extender cables for any device which uses a DB-9 connector. They are available in three different lengths. All nine pins are extended, and the wiring is straight-through (pin 1 to pin 1, 2 to 2, ...) including a foil and braid shield around the cable and connecting the shells. Combined foil and braid shielding offers improved coverage and durability. The conductors are 24 AWG wire. These cables are blue in color.
Optional Extra-Long Jack Screw Kit
Winford now offers extra-long jackscrews as an accessory that can be purchased separately if daisy-chaining cables is desired. The existing thumbscrews would be removed and the long jackscrews installed in their place, and secured with the included nuts and washers on the back of the cable. See photo on right for example or order below. The jack screws are designed to accept the thumbscrews on a mating cable, helping secure the cable firmly in place.
Product Documents
| Part # | Description | Data Sheet | PDF Drawing | DWG Drawing |
|---|---|---|---|---|
| EXTP9 | DB9 Premium Extension Cable |
|
|
|

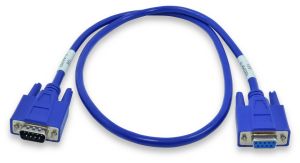

DB9 Premium Extension Cable
Product Details
- Currently available in Male-Female
- All pins wired 1:1 (e.g pin 1 to pin 1, pin 2 to pin 2, etc.)
- 24 AWG conductors
- Foil and Braid shield
Series Comparison: Basic vs Premium
The Premium (EXTP) cables offer enhanced features compared to the Basic (EXT) series. We will continue to sell both series as stock products.
 |
 |
|
|---|---|---|
| Basic EXT |
Premium EXTP |
|
| Wire AWG | 28 AWG | 24 AWG |
| Shielding | Foil | Foil and Braid |
| Pin Mapping | 1:1 | 1:1 |
| Internal Wire Color Code | Not Guaranteed | Documented |
| Labeled Ends | N/A | Part # and Length |
| Outer Color | Beige | Blue |
Pricing and Ordering
| Product # | Description | 1+ | 10+ | 25+ | 50+ | 100+ | RoHS | Buy Now |
|---|---|---|---|---|---|---|---|---|
Male-Female: |
||||||||
| EXTP9-3 | DB9 Premium 24AWG Extension Cable, Male-Female, Medium Blue, 3Ft | $14.00 | $13.50 | $13.35 | $13.30 | $13.20 | Yes | |
| EXTP9-6 | DB9 Premium 24AWG Extension Cable, Male-Female, Medium Blue, 6Ft | $19.00 | $18.50 | $18.35 | $18.30 | $18.20 | Yes | |
| EXTP9-10 | DB9 Premium 24AWG Extension Cable, Male-Female, Medium Blue, 10Ft | $26.00 | $25.50 | $25.35 | $25.30 | $25.20 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $14.00 |
| 10+ | $13.50 |
| 25+ | $13.35 |
| 50+ | $13.30 |
| 100+ | $13.20 |
| Quantity | Price |
|---|---|
| 1+ | $19.00 |
| 10+ | $18.50 |
| 25+ | $18.35 |
| 50+ | $18.30 |
| 100+ | $18.20 |
| Quantity | Price |
|---|---|
| 1+ | $26.00 |
| 10+ | $25.50 |
| 25+ | $25.35 |
| 50+ | $25.30 |
| 100+ | $25.20 |
Extra-Long Jack Screw Kits
Extra-Long Jack Screw Kit for Daisy-Chain Applications
| Product # | Description | 1+ | 10+ | 50+ | RoHS | Buy Now |
|---|---|---|---|---|---|---|
35mm Jack Screw Kit |
||||||
| DJSK-35.0-A | D-Sub #4-40 Jack Screw Kit, 35mm shaft length; 2 each of jack-screws, flat washers, lock washers, nuts | $4.50 | $4.20 | $4.00 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $4.50 |
| 10+ | $4.20 |
| 50+ | $4.00 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
