DB9 Tiny Breakout Boards

BRKTD9F-R

BRKTD9F-R
(click image to enlarge)
BRKTD9F-R
BRKTD9F-R (Overhead View)
BRKTD9F-S

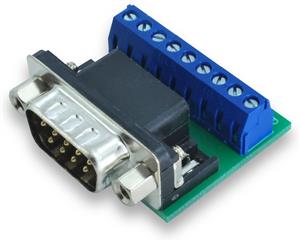

BRKTD9M-R
BRKTD9M-S
  • Available with DB9 Male or Female connector
  • Screw terminal for each of the 9 lines
  • Perfect for field wiring and panel mounting
See Also: More Breakout Boards,   DB9 Breadboard Adapters,   DB9 Cables


General Description

These breakout boards bring all 9 pins of a DB9 connector out to screw terminal blocks, allowing simple and quick connections for prototypes or permanent installations. These breakout boards are perfect for field wiring tasks and may be mounted to a wall box plate or thin panel that has a DB9 cutout. They are available with both male and female connectors. The BRKTD9M has a male connector and the BRKTD9F has a female connector.

For larger DB9 breakout boards that include a prototyping area, mounting holes, and DIN rail mounting options, please click here.

These break out boards are perfect for production applications as well as for experimentation and prototype work. They are well-suited for work with RS-232 serial ports, I/O cards, and any other device that uses a DB-9 connector. It can be helpful in making MODBUS connections. A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Technically, the correct term for a DB9 connector is DE9, but that term is not commonly used.

Breakout boards with enclosures Need an enclosed breakout board? Winford offers our BRKE line of boards, which come installed in enclosures.

Product Documents

Part #DescriptionData SheetIGES ModelSTEP Model
BRKTD9F-RDB9 Female, Right AnglePDF IGES CAD
BRKTD9F-SDB9 Female, StraightPDF IGES CAD
BRKTD9M-RDB9 Male, Right AnglePDF IGES CAD
BRKTD9M-SDB9 Male, StraightPDF IGES CAD
BRKTD9F-R

DB9 Female, Right Angle

PDF IGES CAD
BRKTD9F-S

DB9 Female, Straight

PDF IGES CAD
BRKTD9M-R

DB9 Male, Right Angle

PDF IGES CAD
BRKTD9M-S

DB9 Male, Straight

PDF IGES CAD

Connector Style

These breakout boards are available with either a Right Angle connector or a Straight ("Vertical") connector. The terms Right Angle and Straight refer to the connector itself, NOT the relationship of the mating cable to the plane of the PCB. In fact, the cable mating to a Right Angle connector is parallel to the PCB, while the cable mating to a Straight connector is perpendicular to the PCB.

Product Details

  • DB9 connector
  • Screw terminal for each of the 9 lines
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 1.1" x 1.3"

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ 50+ RoHS Buy Now
Right Angle Connector:
BRKTD9F-R DB9 Tiny Female Breakout Board, R/A Connector $10.00 $9.25 $8.75  Yes
BRKTD9M-R DB9 Tiny Male Breakout Board, R/A Connector $10.00 $9.25 $8.75  Yes
Straight Connector:
BRKTD9F-S DB9 Tiny Female Breakout Board, Straight Connector $10.25 $9.50 $9.00  Yes
BRKTD9M-S DB9 Tiny Male Breakout Board, Straight Connector $10.25 $9.50 $9.00  Yes

Right Angle Connector:
BRKTD9F-R
RoHS   Yes
DB9 Tiny Female Breakout Board, R/A Connector
QuantityPrice
1+$10.00
10+$9.25
50+$8.75
BRKTD9M-R
RoHS   Yes
DB9 Tiny Male Breakout Board, R/A Connector
QuantityPrice
1+$10.00
10+$9.25
50+$8.75
Straight Connector:
BRKTD9F-S
RoHS   Yes
DB9 Tiny Female Breakout Board, Straight Connector
QuantityPrice
1+$10.25
10+$9.50
50+$9.00
BRKTD9M-S
RoHS   Yes
DB9 Tiny Male Breakout Board, Straight Connector
QuantityPrice
1+$10.25
10+$9.50
50+$9.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
