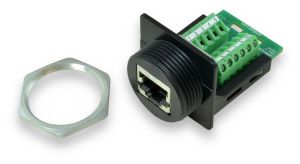

RJ50 10P10C Panel-Mount Breakout Boards
- RJ50 / 10P10C Connector
- Screw terminal for each of the 10 lines, plus shield
- Designed to be panel mounted
- Quick and simple to mount to panel
- Small footprint
General Description
Make connections quickly and reliably with this breakout board, which brings every pin of its 10P10C (RJ50) Modular Jack connector out to screw terminals.
These breakout boards are designed to be mounted in a panel, thus providing a convenient method of passing an RJ50 connection through a panel. This board comes installed in a threaded flange, which provides protection for the circuit board as well as quick and simple installation onto a panel.
The compact design of this board takes up minimal area on the panel surface, thus potentially allowing many connectors to be mounted in a relatively small area. Although the breakout board footprint is small, provision has been included for wire strain reliefs; slots in the board provide anchor points where tie-wraps can be attached, thus securing the wires at the edge of the board.
All RJ50 signal pins plus the connector shield are brought out to screw terminals.
This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for work with serial ports, sensors, data acquisition equipment, RS-232 devices, and other devices that use RJ50/10P10C connectors.
Need something different? We stock a variety of RJ50/10P10C breakout board styles and form factors. Please have a look!
A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module". These connectors are sometimes also called "RJ50 Bulkhead Terminals", "10P10C Bulkhead Adapters" or similar.
Product Documents
| Part # | Description | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|
| BRKQA10PA-U | RJ50 10P10C, R/A Connector, Panel Mount |
|
|
|
|
| SWF-M28-B-BULK | Panel Washer, for M28, Steel |
|
|
|
|
RJ50 10P10C, R/A Connector, Panel Mount
Panel Washer, for M28, Steel
Panel Mounting
This product is designed to mount behind a panel face and extend through the panel. All that is required for installation is one opening. Simply drill or punch a hole through the panel, insert the threaded flange through it and secure it with the panel nut. An M28 panel nut is included with this product, and a washer can be purchased separately. A washer can improve aesthetics and also protect the panel from geting scratched by the nut. The 1-1/8" hole size used for this product is also commonly used for 3/4" 'trade size' electrical knockouts. For more information on appropriate panel cutout size and locations, please see the product drawing document.
Click image to enlarge.
Click image to enlarge.Product Details
- RJ50 / 10P10C Connector
- Screw terminal for each of the 10 lines, plus shield
- Screw terminals accommodate wire sizes from 16AWG to 26AWG
- Designed to be panel mounted
- Quick and simple to mount to panel
- Small footprint
 |
Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers! |
Pricing and Ordering
| Product # | Description | 1+ | 10+ | 50+ | 100+ | RoHS | Buy Now |
|---|---|---|---|---|---|---|---|
| BRKQA10PA-U | RJ50 10P10C Shielded Jack Panel Mount Breakout Board, Screw Terminals, with Panel Nut, No Washer | $17.10 | $16.30 | $16.20 | $16.20 | Yes | |
| SWF-M28-B-BULK | Panel Washer, for M28, Steel, 40mm OD, 0.38mm Thickness | $1.60 | $1.35 | $1.28 | $1.22 | Yes |
| Quantity | Price |
|---|---|
| 1+ | $17.10 |
| 10+ | $16.30 |
| 50+ | $16.20 |
| 100+ | $16.20 |
| Quantity | Price |
|---|---|
| 1+ | $1.60 |
| 10+ | $1.35 |
| 50+ | $1.28 |
| 100+ | $1.22 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
Accessories
Cable Ties - strain relief for Breakout Boards
