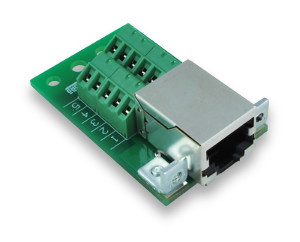

RJ50 10P10C Slim Breakout Boards

BRKSM10P10CSJ-R-P

BRKSM10P10CSJ-R-P
(click image to enlarge)
BRKSM10P10CSJ-R-P
BRKSM10P10CSJ-R-P (Panel Mounted)
BRKSM10P10CSJ-R-P (Connector End)
BRKSM10P10CSJ-R-P (Mounting Bracket Face)
  • RJ50 / 10P10C Connector
  • Screw terminal for each of the 10 lines, plus shield
  • Designed to be panel mounted
  • Small footprint
See Also: More RJ50 Products,   More Breakout Boards,   RJ50 10P10C Cables


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its 10P10C (RJ50) Modular Jack connector out to screw terminals.

Breakout Board Mounted through a Panel

These breakout boards are designed to be mounted in a panel, thus providing a convenient method of passing an RJ50 connection through a panel. The compact design of this board takes up minimal area on the panel surface, thus potentially allowing many connectors to be mounted in a relatively small area. Although the breakout board footprint is small, provision has been included for wire strain reliefs; holes drilled in the board provide anchor points where tie-wraps can be attached, thus securing the wires at the edge of the board.

All RJ50 signal pins plus the connector shield are brought out to screw terminals.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for work with serial ports, sensors, data acquisition equipment, RS-232 devices, and other devices that use RJ50/10P10C connectors.

The '10P10C' designation on the modular jack stands for '10-Position, 10-Conductor', which is compatible with RJ50 connectors.

Need something different? We stock a variety of RJ50/10P10C breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionData SheetPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKSM10P10CSJ-R-PRJ50 10P10C, Slim Profile, R/A Connector, Panel MountPDF PDF DWG IGES CAD
BRKSM10P10CSJ-R-P

RJ50 10P10C, Slim Profile, R/A Connector, Panel Mount

PDF PDF DWG IGES CAD

Panel Mounting

This product is designed to mount behind a panel face and extend through the panel. One end of the product features sturdy metal angle brackets with threaded holes (#4-40) to provide panel mounting capability. Two additional #4-40 screws (not included) are used to attach the breakout board assembly to the panel. The connector extends approximately 3 millimeters past the face of the mounting brackets, and thus the connector extends through the panel. A cutout must be made in the panel to accommodate the connector, and two holes are needed for the mounting screws. For more information on appropriate panel cutout size and locations, please see the product drawing document.

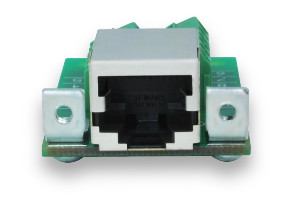

Connector End
Connector End
EnlargeClick image to enlarge.
Mounting Bracket Face
Mounting Bracket Face
EnlargeClick image to enlarge.
Mounted in Panel
Mounted in Panel
EnlargeClick image to enlarge.

Product Details

  • RJ50 / 10P10C Connector
  • Screw terminal for each of the 10 lines, plus shield
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Designed to be panel mounted
  • Approximate dimensions: 1.95" x 1.22"
  • Small footprint

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
BRKSM10P10CSJ-R-P RJ50 10P10C Shielded Jack Breakout Board, Slim Profile, R/A Connector, Panel Mount $15.00 $14.25  Yes

BRKSM10P10CSJ-R-P
RoHS   Yes
RJ50 10P10C Shielded Jack Breakout Board, Slim Profile, R/A Connector, Panel Mount
QuantityPrice
1+$15.00
10+$14.25

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.


RJ50 Cables, Shielded, Strain Relief

Product # Description 1+ 10+ 25+ 50+ RoHS Buy Now
CBM10R1TS-1 RJ50 10P10C Cable, Male-Male, Shielded, Round, Straight Through, Strain Relief, 1Ft $5.80 $5.55 $5.30 $5.10  Yes
CBM10R1TS-3 RJ50 10P10C Cable, Male-Male, Shielded, Round, Straight Through, Strain Relief, 3Ft $6.25 $6.00 $5.75 $5.55  Yes
CBM10R2TS-6 RJ50 10P10C Cable, Male-Male, Shielded, Round, Straight Through, Strain Relief, Anti-Snag, 6Ft $8.50 $8.10 $7.85 $7.50  Yes
CBM10R2TS-10 RJ50 10P10C Cable, Male-Male, Shielded, Round, Straight Through, Strain Relief, Anti-Snag, 10Ft $10.50 $10.10 $9.95 $9.70  Yes

CBM10R1TS-1
RoHS   Yes
RJ50 10P10C Cable, Male-Male, Shielded, Round, Straight Through, Strain Relief, 1Ft
QuantityPrice
1+$5.80
10+$5.55
25+$5.30
50+$5.10
CBM10R1TS-3
RoHS   Yes
RJ50 10P10C Cable, Male-Male, Shielded, Round, Straight Through, Strain Relief, 3Ft
QuantityPrice
1+$6.25
10+$6.00
25+$5.75
50+$5.55
CBM10R2TS-6
RoHS   Yes
RJ50 10P10C Cable, Male-Male, Shielded, Round, Straight Through, Strain Relief, Anti-Snag, 6Ft
QuantityPrice
1+$8.50
10+$8.10
25+$7.85
50+$7.50
CBM10R2TS-10
RoHS   Yes
RJ50 10P10C Cable, Male-Male, Shielded, Round, Straight Through, Strain Relief, Anti-Snag, 10Ft
QuantityPrice
1+$10.50
10+$10.10
25+$9.95
50+$9.70

NOTE: More RJ50 cable options and lengths available here.

Accessories

Cable Ties

 Cable Ties
- strain relief for Breakout Boards
