M12 4-Pin Breakout Board with Spring Connection Terminals

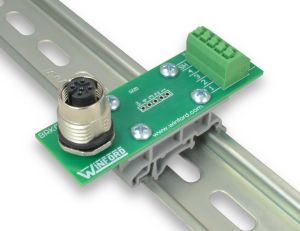

BRKGM12A-4FS-DIN

BRKGM12A-4FS-DIN
(click image to enlarge)
BRKGM12A-4FS-DIN
BRKGM12A-4FS-N
BRKGM12A-4FS-N (Overhead View)
  • Currently available with female 4-pin, A-coded M12 connector
  • Spring terminal for each of the 4 lines, plus shield
  • Solder pad connection space for all 4 lines, plus shield
  • Available with DIN rail mounting option or no mounting hardware
See Also: More M12 Products,   More Breakout Boards


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its 4-pin M12 connector out to spring terminals. This product is currently available with A-coded female connectors.

Each pin, including shield, is also brought to solder pads (1 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

Spring Terminal Animation

This breakout board features push-in spring connection terminal blocks. These screwless spring clamp terminal blocks allow connections to be made very quickly and efficiently. The spring terminal connections are reliable and secure, but wires can be connected and disconnected in a fraction of the time required with standard screw terminal blocks. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button. Done! In addition, screwless spring connections can offer better results in environments where vibration could potentially loosen standard screw terminal block connections. If your application requires screw terminals rather than spring terminals, please consider the BRKM12x-4x design or the other M12 options listed here.

For a smaller form factor M12 breakout board designed for panel mounting, please click here.

We stock a variety of M12 breakout board styles and form factors. Please have a look!

This breakout board is perfect for production applications as well as experimentation and prototype work.

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKGM12A-4FS-DINM12 4-Pin Female Breakout, DIN MountPDF DWG IGES CAD
BRKGM12A-4FS-NM12 4-Pin Female Breakout, Mounting HolesPDF DWG IGES CAD
BRKGM12A-4FS-DIN

M12 4-Pin Female Breakout, DIN Mount

PDF DWG IGES CAD
BRKGM12A-4FS-N

M12 4-Pin Female Breakout, Mounting Holes

PDF DWG IGES CAD

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -N have no mounting hardware included; they can be easily panel-mounted by using 1/4" nylon standoffs under the mounting holes, and #6 screws.

BRKGM12A-4FS-DIN
DIN Rail Mount
BRKGM12A-4FS-DIN
EnlargeClick image to enlarge.
Rail not included
BRKGM12A-4FS-N
No Mounting Hardware
BRKGM12A-4FS-N
EnlargeClick image to enlarge.

Product Details

  • Spring terminal for each of the 4 lines, plus shield
  • Spring terminals accommodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 3" x 1"
  • Available with DIN rail mounting option or no mounting hardware

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
M12 4-Pin Female Connector With Spring Terminals:
BRKGM12A-4FS-DIN M12 Breakout Board, 4-Pin Female Connector with Shield, A-Coded, Straight Connector, Spring Terminals, DIN Rail Mount $32.30 $29.95  Yes
BRKGM12A-4FS-N M12 Breakout Board, 4-Pin Female Connector with Shield, A-Coded, Straight Connector, Spring Terminals $30.65 $28.30  Yes

M12 4-Pin Female Connector With Spring Terminals:
BRKGM12A-4FS-DIN
RoHS   Yes
M12 Breakout Board, 4-Pin Female Connector with Shield, A-Coded, Straight Connector, Spring Terminals, DIN Rail Mount
QuantityPrice
1+$32.30
10+$29.95
BRKGM12A-4FS-N
RoHS   Yes
M12 Breakout Board, 4-Pin Female Connector with Shield, A-Coded, Straight Connector, Spring Terminals
QuantityPrice
1+$30.65
10+$28.30

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
