M12 4-Pin Panel Mount Breakout Boards
- Available with female 4-pin, A-coded and male or female 4-pin, D-coded M12 connector
- Cost effective and reliable cable termination
- Screw terminal for each of the 4 lines, plus shield
- Convenient strain relief feature for wires
General Description
These M12 breakout boards are part of the BRKQ series, which provides a clean and simple solution for terminating wires at a connector through a panel or enclosure wall. These boards are great for making machine network connections, connecting external sensors, connecting human interface devices, and neatly transitioning cabling through an enclosure.
These boards are available with a 4-pin, A-coded or D-coded M12 connector that brings all four lines and shield out to screw terminals. It is currently available with a female A-coded connector and male or female D-coded connector.
A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".
Features
M16 Panel Nut
This board comes with a panel nut installed on its connector. This nut is used to secure the board to a panel or enclosure wall. Simply unscrew the nut from the connector, insert the connector through the wall, and reattach the nut to the connector. These boards use a size M16 panel nut.
Strain Relief Feature
Click image to enlarge.These boards also have a strain relief feature that eases the tension placed on wires connected to the terminal. To utilize this feature, simply wrap a cable tie (sold separately) through the strain relief slots or around the strain relief extension, depending on the board's feature, and close it over the wires that populate the board's terminals.
Installation

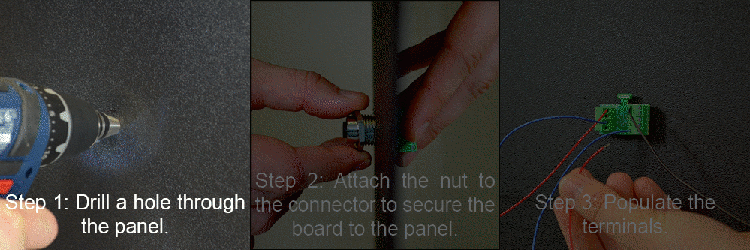

To install a BRKQ board onto a panel or piece of equipment, follow these three simple steps:
Product Details
- Screw terminal for each of the 4 lines, plus shield
- Terminals accommodate wire sizes from 16AWG to 26AWG
- Convenient strain relief feature for wires
- Connection points are labeled with pin numbers
- No soldering or crimping required
Accessories
Cable Ties (Sold Separately)
Product Documents
| Part # | Description | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|
| BRKQAM12A-4F-A | M12 4-Pin A-Coded Female |
|
|
|
|
| BRKQAM12D-4F-A | M12 4-Pin D-Coded Female |
|
|
|
|
| BRKQAM12D-4M-A | M12 4-Pin D-Coded Male |
|
|
|
|
M12 4-Pin A-Coded Female
M12 4-Pin D-Coded Female
M12 4-Pin D-Coded Male
Pricing and Ordering
| Product # | Description | 1+ | 10+ | 50+ | RoHS | Buy Now |
|---|---|---|---|---|---|---|
4-Pin A-Coded Female Connector with Screw Terminals: |
||||||
| BRKQAM12A-4F-A | M12 Breakout Board, Panel Mount, 4-Pin Female Connector with Shield, A-Coded, Screw Terminals, with M16 Panel Nut | $26.15 | $25.30 | $23.65 | Yes | |
4-Pin D-Coded Female Connector with Screw Terminals: |
||||||
| BRKQAM12D-4F-A | M12 Breakout Board, Panel Mount, 4-Pin Female Connector with Shield, D-Coded, Screw Terminals, with M16 Panel Nut | $31.05 | $29.95 | $29.95 | Yes | |
4-Pin D-Coded Male Connector with Screw Terminals: |
||||||
| BRKQAM12D-4M-A | M12 Breakout Board, Panel Mount, 4-Pin Male Connector with Shield, D-Coded, Screw Terminals, with M16 Panel Nut | $31.05 | $29.95 | $29.95 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $26.15 |
| 10+ | $25.30 |
| 50+ | $23.65 |
| Quantity | Price |
|---|---|
| 1+ | $31.05 |
| 10+ | $29.95 |
| 50+ | $29.95 |
| Quantity | Price |
|---|---|
| 1+ | $31.05 |
| 10+ | $29.95 |
| 50+ | $29.95 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
 |
