DB15HD Breakout Board with Spring Connection Terminals

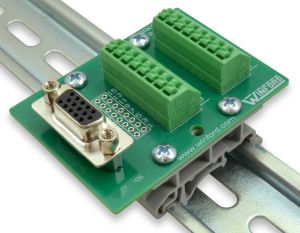

BRKG15HDF-S-DIN (On a Rail)

BRKG15HDF-S-DIN (On a Rail)
(click image to enlarge)
BRKG15HDF-S-DIN (On a Rail)

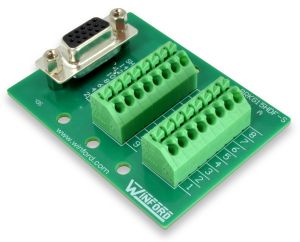

BRKG15HDF-S-N
BRKG15HDF-S-N (Overhead View)
BRKG15HDM-S-DIN (On a Rail)
BRKG15HDM-S-N
BRKG15HDM-S-N (Overhead View)
Spring Terminals
  • Available with DB15HD Male or Female connector
  • Quick connection spring cage terminal blocks for all pins, plus shield
  • Solder pad connection space / test points for all pins, plus shield
  • Supports addition of .1" pin headers
  • DIN rail mountable
See Also: More Breakout Boards,   DB15HD Breadboard Adapters,   DB15HD Cables


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB15HD connector out to spring terminals. This product is available with both male and female connectors.

Each pin, including shield, is also brought to solder pads (1 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

Spring Terminal Animation

This breakout board features push-in spring connection terminal blocks. These screwless spring clamp terminal blocks allow connections to be made very quickly and efficiently. The spring terminal connections are reliable and secure, but wires can be connected and disconnected in a fraction of the time required with standard screw terminal blocks. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button. Done! In addition, screwless spring connections can offer better results in environments where vibration could potentially loosen standard screw terminal block connections. If your application requires screw terminals rather than spring terminals, please consider the BRK15HD design or the other DB15HD options listed here.

Note: This product contains the 'high density' DB15HD connector with 3 rows of pins. See the DB15 products for the 2-row 'standard density' 15-pin DSUB connector.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, DAQ devices, CNC equipment, and other devices that uses a DB-15HD connector.

Technically, the correct term for a DB15HD connector is DE15, but that term is not commonly used.

Need something different? We stock a variety of DB15HD breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Breakout boards with enclosures Need an enclosed breakout board? Winford offers our BRKE line of boards, which come installed in enclosures.
