DB25 Breakout Board with Enclosure

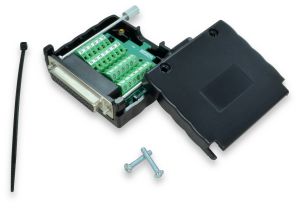

BRKEGD37 Shown -- <b>BRKEGD25x Pics Coming Soon</b>

BRKEGD37 Shown -- BRKEGD25x Pics Coming Soon
(click image to enlarge)
BRKEGD37 Shown -- <b>BRKEGD25x Pics Coming Soon</b>

  • Available with DB25 Male or Female connector
  • Comes mounted in an enclosure
  • Cost effective and reliable cable termination
  • Terminal for each of the 25 lines, plus shield
  • Available with spring terminals
  • Convenient strain relief feature for wires
  • No soldering or crimping required
  • Available with Jack Screws or Thumbscrews
See Also: More Breakout Boards with Enclosures,   More DB25 Breakout Boards,   DB25 Cables


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB25 connector out to spring terminals. This breakout board comes mounted in an attractive case. It is available with either Thumbscrews or Jack Screws for connector hardware; see pricing table below for all part numbers. This product is available with both male and female connectors.

The BRKEGD25F-R (DB25 Female, Jack Screws) and the BRKEGD25M-T (DB25 Male, Jack Screws) will be available soon. The other varieties are in stock now.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, DAQ devices, CNC equipment, and other devices that use a DB-25 connector.

We stock a variety of DB25 breakout board styles and form factors. Please have a look here.

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Enclosure

The breakout board comes already installed in a sturdy black plastic hood enclosure with a removable cover. A hole in the end provides ample space for conductors to exit the enclosure, and a convenient strain-relief feature allows wires to be easily secured with a zip tie in just seconds. A curved channel guides the zip tie (included) around the wire bundle and back up for cinching.

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKEGD25F-RDB25 Female, Spring Terminals, Jack ScrewsPDF DWG IGES CAD
BRKEGD25F-TDB25 Female, Spring Terminals, Thumb ScrewsPDF DWG IGES CAD
BRKEGD25M-RDB25 Male, Spring Terminals, Jack ScrewsPDF DWG IGES CAD
BRKEGD25M-TDB25 Male, Spring Terminals, Thumb ScrewsPDF DWG IGES CAD
BRKEGD25F-R

DB25 Female, Spring Terminals, Jack Screws

PDF DWG IGES CAD
BRKEGD25F-T

DB25 Female, Spring Terminals, Thumb Screws

PDF DWG IGES CAD
BRKEGD25M-R

DB25 Male, Spring Terminals, Jack Screws

PDF DWG IGES CAD
BRKEGD25M-T

DB25 Male, Spring Terminals, Thumb Screws

PDF DWG IGES CAD

Terminal Options

This product is available with spring terminals.

Spring Terminal Animation
Spring Terminals (BRKEGDx) allow connections to be made very quickly and efficiently. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button.
Spring Terminals
Spring Terminals
EnlargeClick image to enlarge.

Hardware Options

This product is available in two different connector hardware options:
  • Thumbscrews (-T option): These work well for attaching the product directly to a piece of equipment; the male threads on the thumbscrews directly engage the female threads on the equipment.
  • Jack Screws (-R option): These provide female threads on the product and work well when attaching the product to a cable, which typically has male thread thumbscrews.
    Thumbscrews (-T option)
    Thumbscrews (-T option)
    EnlargeClick image to enlarge.
    Jack Screws (-R option)
    Jack Screws (-R option)
    EnlargeClick image to enlarge.

Product Details

  • Available with DB25 Male or Female connector
  • Comes mounted in an enclosure
  • Cost effective and reliable cable termination
  • Terminal for each of the 25 lines, plus shield
  • Available with spring terminals
  • Terminals accomodate wire sizes from 16AWG to 24AWG
  • Convenient strain relief feature for wires
  • Connection points are labeled with pin numbers
  • No soldering or crimping required
  • Available with Jack Screws or Thumbscrews
  • Approximate dimensions: 3.0"L x 2.5"W x 0.86"H

Accessories

Cable Ties

Cable Ties Use these cable ties for anchoring wires to a variety of Winford breakout boards; provides good strain relief for the wire connections.


Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
DB25 Female Connector, Spring Terminals:
BRKEGD25F-T DB25 Female Breakout Board with Enclosure, Spring Terminals, Thumb Screws $26.00 $25.00  Yes
DB25 Male Connector, Spring Terminals:
BRKEGD25M-R DB25 Male Breakout Board with Enclosure, Spring Terminals, Jack Screws $24.00 $23.00  Yes

DB25 Female Connector, Spring Terminals:
BRKEGD25F-T
RoHS   Yes
DB25 Female Breakout Board with Enclosure, Spring Terminals, Thumb Screws
QuantityPrice
1+$26.00
10+$25.00
DB25 Male Connector, Spring Terminals:
BRKEGD25M-R
RoHS   Yes
DB25 Male Breakout Board with Enclosure, Spring Terminals, Jack Screws
QuantityPrice
1+$24.00
10+$23.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
