2x20 0.1" Header IDC40 Breakout Board

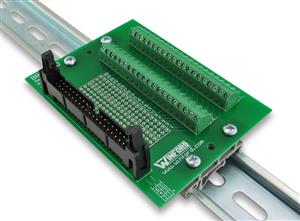

BRK2X20-L-DIN

BRK2X20-L-DIN
(click image to enlarge)
BRK2X20-L-DIN
BRK2X20-L-FT
  • Dual row 0.1" spaced male pin header
  • 40 Pins (2x20), 0.1" pitch
  • Solder pad connection space for all 40 lines
  • Screw terminal for each of the 40 lines
  • Supports addition of 0.1" pitch pin headers
  • Rubber feet or DIN rail mount
See Also: More Breakout Boards,   IDC 0.1" Header Connectors,   Ribbon Cable


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its male dual row header connector out to screw terminals. The IDC40 header connector has pins spaced at 0.1" pitch.

Each pin is also brought to solder pads (3 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components. The solder pads are arranged in such a way that you can add an additional 2x20 header to the breakout board. It will be connected 1:1 with the existing connector, thus forming a "T" or "Y" connection and allowing an extra cable connection to the board (allows daisy-chaining connections, etc).

This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for interfacing with I/O cards, data acquisition (DAQ) equipment, and any other device that uses a 2x20 40-position header connector. Applications include the Raspberry Pi A+, B+, 2B, 3B and 4B boards, all of which use a 0.1" pitch 2x20 I/O pin header for their GPIO expansion ports.

The header connector on this breakout board comes standard with long ejector latches. "Long ejectors" indicates that the ejectors are the correct length to accomodate IDC connectors with strain reliefs installed.

A dual row header is sometimes referred to as an "IDC Header", "IDC connector", or "ribbon cable connector". A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionData SheetPDF DrawingDWG DrawingIGES ModelSTEP Model
BRK2X20-L-DIN2x20 0.1" Header, DIN MountPDF PDF DWG IGES CAD
BRK2X20-L-FT2x20 0.1" Header, Rubber FeetPDF PDF DWG IGES CAD
BRK2X20-L-DIN

2x20 0.1" Header, DIN Mount

PDF PDF DWG IGES CAD
BRK2X20-L-FT

2x20 0.1" Header, Rubber Feet

PDF PDF DWG IGES CAD

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.
BRK2X20-L-DIN
DIN Rail Mount
BRK2X20-L-DIN
EnlargeClick image to enlarge.
Rail not included
BRK2X20-L-FT
Rubber Feet
BRK2X20-L-FT
EnlargeClick image to enlarge.

Product Details

  • Dual row 0.1" spaced male pin header
  • 40 Pins (2x20), 0.1" pitch
  • Ejector latches on header provide secure connection and quick disconnection
  • Screw terminal for each of the 40 lines
  • Solder pad connection holes, three (3) per pin
  • Supports addition of 0.1" pitch pin headers
  • Screw terminals accommodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 3.0" x 4.0"
  • Rubber feet or DIN rail mount

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
BRK2X20-L-DIN 2x20 (40 pins) 0.1" Dual Row Header Breakout Board, Long Ejectors, Screw Terminals, DIN Rail Mount $38.00 $34.80  Yes
BRK2X20-L-FT 2x20 (40 pins) 0.1" Dual Row Header Breakout Board, Long Ejectors, Screw Terminals, Feet $36.40 $33.15  Yes

BRK2X20-L-DIN
RoHS   Yes
2x20 (40 pins) 0.1" Dual Row Header Breakout Board, Long Ejectors, Screw Terminals, DIN Rail Mount
QuantityPrice
1+$38.00
10+$34.80
BRK2X20-L-FT
RoHS   Yes
2x20 (40 pins) 0.1" Dual Row Header Breakout Board, Long Ejectors, Screw Terminals, Feet
QuantityPrice
1+$36.40
10+$33.15

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
