Breakout for Arduino MEGA2560

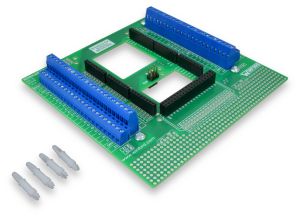

RDBKMEG1

RDBKMEG1
(click image to enlarge)
RDBKMEG1
RDBKMEG1 (Application rendering)
  • Provides access to Arduino MEGA2560 signals while still allowing the user to install a shield
  • Arduino MEGA2560 can be easily plugged into pin headers on bottom side
  • Socket headers on the top side allow the user to add a shield if needed
  • Signals are accessible at terminal blocks as well as thru-hole pads
  • Optional snap-fit nylon supports (included) may be used to lock the MEGA2560 in place
  • Design allows user to easily add their own DC-DC converter for operation at higher supply voltages
  • Includes prototype area
  • Threaded standoffs (#6-32) are installed, with center-to-center spacing 3.5" x 3.5"
  • Standoff locations are aligned with pre-drilled holes on DIN plate DINP01-4040B
  • Arduino MEGA2560, DC-DC converter, DIN plate, and DIN rail not included
See Also: DIN Rail Mounting Plate with Mounting Holes,   DIN Rail


General Description

The RDBKMEG1 breakout provides a convenient method to connect to and mount an Arduino MEGA2560. When paired with a DIN Rail Mounting Plate such as DINP01-4040B (not included), an Arduino MEGA2560 can easily be mounted on a DIN rail.

After plugging an Arduino MEGA2560 into the pin headers on the bottom side, signals may be conveniently accessed at terminal blocks and/or thru-hole pads. If a shield is needed, it can be plugged into the socket headers on the top side.

A number of convenient design features, such as a prototype area and pads that accommodate a DC-DC converter* for operation from higher supply voltages, facilitate the inclusion of an Arduino MEGA2560 in a variety of projects.

*See app note section for more information. DC-DC converter is not included with RDBKMEG1.

Connection Details

In general, signal connections are self-explanatory. Each signal on the Arduino MEGA2560 headers is brought out to a terminal block position and a plated-thru hole. In addition, the signals are present at socket headers (receptacles) that allow a shield to be installed.

In the case of a few signals (Ground, 5V, and 3.3V), the signals are available at multiple thru-hole locations and terminal block positions.

For the ICSP (2x3) header, the 6 signals connect directly between the 2x3 socket header on the bottom and the 2x3 pin header on the top, providing SPI bus access for shields as well as stand-alone programmers. These 6 signals do not connect anywhere else on the RDBKMEG1 board itself. However, once a MEGA2560 board is installed, these various signals will connect to the expected breakout board access points thru the MEGA2560 board. (Example: Pin 5 on the 2x3 ICSP header is RESET. Once a MEGA2560 is installed, this signal will be connected (thru the MEGA2560) to the RESET signal access points at the terminal block, plated hole, and socket header.)

This can be used as an Arduino DUE breakout board, but some pin numbers and functions are different.


A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

DescriptionData SheetPDF DrawingDWG DrawingIGES ModelSTEP ModelApp Note
RDBKMEG1PDF PDF DWG IGES CAD
Using a MEGA2560 with higher supply voltagePDF
Using locking PCB supportsPDF

RDBKMEG1

PDF PDF DWG IGES CAD

Using a MEGA2560 with higher supply voltage

PDF

Using locking PCB supports

PDF

Product Details

  • Provides access to Arduino MEGA2560 signals while still allowing the user to install a shield
  • Arduino MEGA2560 can be easily plugged into pin headers on bottom side
  • Socket headers on the top side allow the user to add a shield if needed
  • Signals are accessible at terminal blocks as well as thru-hole pads
  • Design ensures no signals can short to USB connector on Arduino MEGA2560
  • Extra positions are provided for 3.3V, 5V, and GND
  • Four extra terminal block positions are included and are terminated at thru-hole pads
  • High-quality rising cage clamp terminal blocks provide consistent performance over time
  • Screw terminals accept 16-26 AWG wire
  • Optional snap-fit nylon supports (included) may be used to lock the MEGA2560 in place
  • Design allows user to easily add their own DC-DC converter for operation at higher supply voltages
  • Includes prototype area
  • Prototype area includes pads tied to 3.3V, 5V, and GND
  • MEGA2560 pin functions are clearly shown on the PCB
  • Approximate dimensions: 5.0" x 5.0"
  • Threaded standoffs (#6-32) are installed, with center-to-center spacing 3.5" x 3.5"
  • Standoff locations are aligned with pre-drilled holes on DIN plate DINP01-4040B

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
RDBKMEG1 Breakout for Arduino MEGA2560 -- 3.5mm term blocks, thru-hole signal access points, small proto area, standoffs for mounting $46.95 $44.75  Yes

RDBKMEG1
RoHS   Yes
Breakout for Arduino MEGA2560 -- 3.5mm term blocks, thru-hole signal access points, small proto area, standoffs for mounting
QuantityPrice
1+$46.95
10+$44.75

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
