DIN Rail Mounting Plate for VESA Displays & Devices

DINP06-ZVE100A

DINP06-ZVE100A
(click image to enlarge)

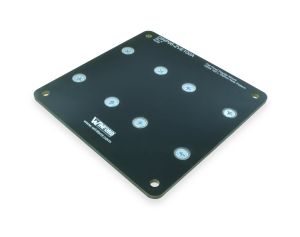

DINP06-ZVE100A
DINP06-ZVE100A (Top View)
DINP06-ZVE100A (Side View)
DINP06-ZVE100A (Back View)
  • Mount your VESA device on a DIN rail
  • Sturdy construction
  • Plate size: 4.53" x 4.53"
  • Mounting hole pattern: 100x100mm
  • Constructed of 0.125" thick FR4 material
  • Clips onto 35mm DIN rail
See Also: More DIN Plates,   DIN Mounting Clips,   DIN Rail


General Description

Use these sturdy DIN rail mounting plates to mount devices with VESA mounting holes to standard 35mm DIN rail. Although the VESA hole pattern was originally designed for flat panel displays such as monitors and TVs, it has also been used for small PCs, all-in-one PCs, keyboard trays, etc. This product features a flat plate mounting surface to which you can mount your device, and two metal DIN rail brackets provide a stable attachment to the DIN rail.

Pre-drilled holes are located to accommodate VESA 100x100mm hole pattern devices. Simply attach your device to the plate, and your VESA mount device has become a DIN mount device!

The mounting plate is made of sturdy 0.125" thick FR4 material (glass-reinforced epoxy laminate material). It comes with two sturdy steel DIN rail brackets (part# DINM21) installed on the plate. The steel brackets may be purchased alone if you desire the bracket without the adapter plate.

These adapter plates are alternately known as DIN rail mounting plates, DIN adapter plates, DIN rail brackets, etc. We sell many varieties of universal DIN rail mounting plates and DIN rail brackets for numerous applications.

Application Examples

The photos below show devices with a VESA 100x100mm hole pattern mounted to this product, which is mounted on a DIN rail.

Back View of Monitor Mounted on DIN Plate and on DIN Rail
Back View of Monitor Mount
EnlargeClick image to enlarge.

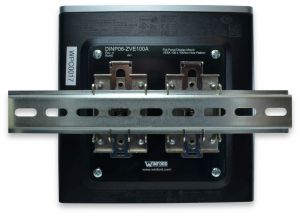

Back View of Small PC Mounted on DIN Plate and on DIN Rail
Back View of Small PC Mount
EnlargeClick image to enlarge.

Installation and Removal

Mounting Your Devices

To mount a device onto the plate, use the pre-drilled holes in each corner of the plate. Or, for non-standard applications, add your own holes to suit your needs.

Installing and Removing the Plate Assembly

These DIN rail plate assemblies are easily attached and detached from the DIN rail. When on the rail, the bracket latches to the rail on both the top and bottom lips of the rail. The bracket should be oriented such that the "fixed" (non spring-loaded) end of the bracket mounts to the top of the DIN rail, thus allowing the fixed end to bear the load. The spring-loaded sliding hooks will then grip the bottom of the DIN rail. This arrangement provides the greatest rigidity and load capacity.

There are two methods for removing the plate from the DIN rail:

  • Push & Pivot: In most cases, the simplest method is to push up on the assembly, pivot the top out away from the rail, and lower the entire assembly off the rail. This technique does not require access to the release handle on the bracket which makes this method easier.
  • Release Handle: If, for some reason, the Push & Pivot method does not work for your application, you can also remove the plates from a DIN rail using the release handle on the bracket. Either pull the handle from the bottom edge of the bracket, or push the handle down from the top edge of the bracket. This releases the sliding hooks that grip the bottom of the rail and allows the bottom edge of the bracket to swing out away from the DIN rail. The entire plate and your mounted device can then be lifted off the DIN rail.

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
DINP06-ZVE100ADIN Plate, for VESA Display DevicesPDF DWG IGES CAD
DINP06-ZVE100A

DIN Plate, for VESA Display Devices

PDF DWG IGES CAD

Product Details

  • Plate size: 4.53" x 4.53"
  • Mounting hole pattern: 100x100mm
  • Constructed of 0.125" thick FR4 material
  • Two 44.2mm wide steel DIN brackets
  • Clips onto 35mm DIN rail
  • Color: Black
  • DIN Rail not included

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
DINP06-ZVE100A DIN Rail Mounting Plate for VESA Displays & Devices with 100x100mm Hole Pattern; for 35mm DIN Rail $16.65 $15.60  Yes

DINP06-ZVE100A
RoHS   Yes
DIN Rail Mounting Plate for VESA Displays & Devices with 100x100mm Hole Pattern; for 35mm DIN Rail
QuantityPrice
1+$16.65
10+$15.60

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
