M12 12-Pin Breakout Boards
- Available with male or female 12-pin, A-coded M12 connector
- Screw terminal for each of the 12 lines, plus shield
- Available with DIN rail mounting option or no mounting hardware
General Description
Make connections quickly and reliably with this breakout board, which brings every pin of its 12-pin M12 connector out to screw terminals. This product is available with male or female 12-pin, A-coded M12 connectors.
Each pin, including shield, is brought to a test pad located just behind the corresponding terminal block position.
We stock a variety of M12 breakout board styles and form factors. Please have a look! For a smaller form factor M12 breakout board designed for panel mounting, please click here.
This breakout board is perfect for production applications as well as experimentation and prototype work.
A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".
Product Documents
| Part # | Description | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|
| BRKM12A-12FS-DIN | A-Coded M12 12-Pin Female Breakout, DIN Mount |
|
|
|
|
| BRKM12A-12FS-N | A-Coded M12 12-Pin Female Breakout, Mounting Holes |
|
|
|
|
| BRKM12A-12MS-DIN | A-Coded M12 12-Pin Male Breakout, DIN Mount |
|
|
|
|
| BRKM12A-12MS-N | A-Coded M12 12-Pin Male Breakout, Mounting Holes |
|
|
|
|

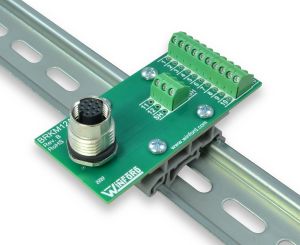

A-Coded M12 12-Pin Female Breakout, DIN Mount
A-Coded M12 12-Pin Female Breakout, Mounting Holes
A-Coded M12 12-Pin Male Breakout, DIN Mount
A-Coded M12 12-Pin Male Breakout, Mounting Holes
Mounting Options
These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -N have no mounting hardware included; they can be easily panel-mounted by using 1/4" nylon standoffs under the mounting holes, and #6 screws.
Click image to enlarge.
Click image to enlarge.Product Details
- Screw terminal for each of the 12 lines, plus shield
- Screw terminals accommodate wire sizes from 16AWG to 26AWG
- Approximate dimensions: 3.25" x 1.5"
- Available with DIN rail mounting option or no mounting hardware
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
M12 A-Code 12-Pin Female Connector With Screw Terminals: |
|||||
| BRKM12A-12FS-DIN | M12 Breakout Board, 12-Pin Female Connector with Shield, A-Coded, Straight Connector, Screw Terminals, DIN Rail Mount | $57.90 | $55.90 | Yes | |
| BRKM12A-12FS-N | M12 Breakout Board, 12-Pin Female Connector with Shield, A-Coded, Straight Connector, Screw Terminals | $56.20 | $54.25 | Yes | |
M12 A-Code 12-Pin Male Connector With Screw Terminals: |
|||||
| BRKM12A-12MS-DIN | M12 Breakout Board, 12-Pin Male Connector with Shield, A-Coded, Straight Connector, Screw Terminals, DIN Rail Mount | $57.90 | $55.90 | Yes | |
| BRKM12A-12MS-N | M12 Breakout Board, 12-Pin Male Connector with Shield, A-Coded, Straight Connector, Screw Terminals | $56.20 | $54.25 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $57.90 |
| 10+ | $55.90 |
| Quantity | Price |
|---|---|
| 1+ | $56.20 |
| 10+ | $54.25 |
| Quantity | Price |
|---|---|
| 1+ | $57.90 |
| 10+ | $55.90 |
| Quantity | Price |
|---|---|
| 1+ | $56.20 |
| 10+ | $54.25 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
 |
Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers! |
