DB15 Breakout Board

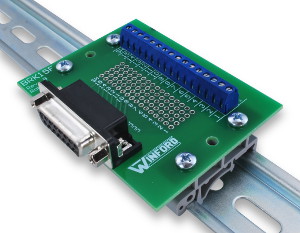

BRK15F-R-DIN

BRK15F-R-DIN
(click image to enlarge)
BRK15F-R-DIN
BRK15F-R-FT
BRK15F-S-DIN
BRK15F-S-FT
BRK15M-R-DIN
BRK15M-R-FT
BRK15M-S-DIN
BRK15M-S-FT
  • Available with DB15 Male or Female connector
  • Perfect for prototyping game port circuits (joystick, MIDI, etc)
  • Screw terminal for each of the 15 lines, plus shield
  • Solder pad connection space for all 15 lines, plus shield
  • Supports addition of .1" pin headers
  • Rubber feet or DIN rail mount
See Also: Dual DB15 Breakout Board,   Slim DB15 Breakout Board,   More Breakout Boards,   DB15 Breadboard Adapters,   DB15 Cables


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB15 connector out to screw terminals. This product is available with both male and female connectors.

Each pin, including shield, is also brought to solder pads (5 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

Note: This product contains the 'standard density' DB15 connector with 2 rows of pins. See the DB15HD products for the 3-row 'high density' 15-pin DSUB connector.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, CNC equipment, and other devices that use a DB-15 connector.

Technically, the correct term for a DB15 connector is DA15, but that term is not commonly used.

Need something different? We stock a variety of DB15 breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Breakout boards with enclosures Need an enclosed breakout board? Winford offers our BRKE line of boards, which come installed in enclosures.

Product Documents

Part #DescriptionData SheetPDF DrawingDWG DrawingIGES ModelSTEP Model
BRK15F-R-DINDB15 Female, Right Angle, DIN MountPDF PDF DWG IGES CAD
BRK15F-R-FTDB15 Female, Right Angle, Rubber FeetPDF PDF DWG IGES CAD
BRK15F-S-DINDB15 Female, Straight, DIN MountPDF PDF DWG IGES CAD
BRK15F-S-FTDB15 Female, Straight, Rubber FeetPDF PDF DWG IGES CAD
BRK15M-R-DINDB15 Male, Right Angle, DIN MountPDF PDF DWG IGES CAD
BRK15M-R-FTDB15 Male, Right Angle, Rubber FeetPDF PDF DWG IGES CAD
BRK15M-S-DINDB15 Male, Straight, DIN MountPDF PDF DWG IGES CAD
BRK15M-S-FTDB15 Male, Straight, Rubber FeetPDF PDF DWG IGES CAD
-D-Sub Panel Cutout DrawingPDF DWG
BRK15F-R-DIN

DB15 Female, Right Angle, DIN Mount

PDF PDF DWG IGES CAD
BRK15F-R-FT

DB15 Female, Right Angle, Rubber Feet

PDF PDF DWG IGES CAD
BRK15F-S-DIN

DB15 Female, Straight, DIN Mount

PDF PDF DWG IGES CAD
BRK15F-S-FT

DB15 Female, Straight, Rubber Feet

PDF PDF DWG IGES CAD
BRK15M-R-DIN

DB15 Male, Right Angle, DIN Mount

PDF PDF DWG IGES CAD
BRK15M-R-FT

DB15 Male, Right Angle, Rubber Feet

PDF PDF DWG IGES CAD
BRK15M-S-DIN

DB15 Male, Straight, DIN Mount

PDF PDF DWG IGES CAD
BRK15M-S-FT

DB15 Male, Straight, Rubber Feet

PDF PDF DWG IGES CAD
-

D-Sub Panel Cutout Drawing

PDF DWG

Connector Style

These breakout boards are available with either a Right Angle connector or a Straight ("Vertical") connector. The terms Right Angle and Straight refer to the connector itself, NOT the relationship of the mating cable to the plane of the PCB. In fact, the cable mating to a Right Angle connector is parallel to the PCB, while the cable mating to a Straight connector is perpendicular to the PCB. These are pictured below:

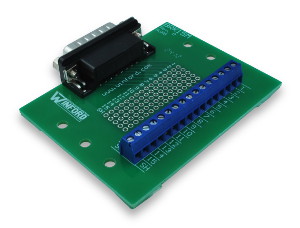

BRK15M-R-FT
Right Angle Connector
BRK15M-R-FT pictured
EnlargeClick image to enlarge.

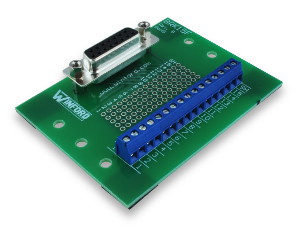

BRK15F-S-FT
Straight Connector
BRK15F-S-FT pictured
EnlargeClick image to enlarge.

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

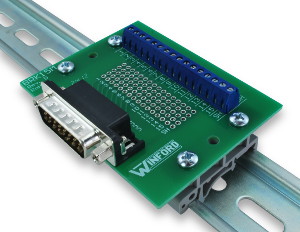

BRK15M-R-DIN
DIN Rail Mount
BRK15M-R-DIN
EnlargeClick image to enlarge.
Rail not included
BRK15M-R-FT
Rubber Feet
BRK15M-R-FT
EnlargeClick image to enlarge.

Product Details

  • DB15 Standard Density (2-row) connector
  • Screw terminal for each of the 15 lines, plus shield
  • Solder pad connection holes, four (4) per line
  • Supports addition of .1" pin headers
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 2.38" x 3.1"
  • Rubber feet or DIN rail mount

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
DB15 Female Right Angle Connector:
BRK15F-R-DIN DB15 Female Breakout Board, R/A Connector, DIN Rail Mount $17.65 $16.70  Yes
BRK15F-R-FT DB15 Female Breakout Board, R/A Connector, Feet $16.05 $15.10  Yes
DB15 Female Straight Connector:
BRK15F-S-DIN DB15 Female Breakout Board, Straight Connector, DIN Rail Mount $18.20 $17.25  Yes
BRK15F-S-FT DB15 Female Breakout Board, Straight Connector, Feet $16.60 $15.60  Yes
DB15 Male Right Angle Connector:
BRK15M-R-DIN DB15 Male Breakout Board, R/A Connector, DIN Rail Mount $17.65 $16.70  Yes
BRK15M-R-FT DB15 Male Breakout Board, R/A Connector, Feet $16.05 $15.10  Yes
DB15 Male Straight Connector:
BRK15M-S-DIN DB15 Male Breakout Board, Straight Connector, DIN Rail Mount $18.20 $17.25  Yes
BRK15M-S-FT DB15 Male Breakout Board, Straight Connector, Feet $16.60 $15.60  Yes

DB15 Female Right Angle Connector:
BRK15F-R-DIN
RoHS   Yes
DB15 Female Breakout Board, R/A Connector, DIN Rail Mount
QuantityPrice
1+$17.65
10+$16.70
BRK15F-R-FT
RoHS   Yes
DB15 Female Breakout Board, R/A Connector, Feet
QuantityPrice
1+$16.05
10+$15.10
DB15 Female Straight Connector:
BRK15F-S-DIN
RoHS   Yes
DB15 Female Breakout Board, Straight Connector, DIN Rail Mount
QuantityPrice
1+$18.20
10+$17.25
BRK15F-S-FT
RoHS   Yes
DB15 Female Breakout Board, Straight Connector, Feet
QuantityPrice
1+$16.60
10+$15.60
DB15 Male Right Angle Connector:
BRK15M-R-DIN
RoHS   Yes
DB15 Male Breakout Board, R/A Connector, DIN Rail Mount
QuantityPrice
1+$17.65
10+$16.70
BRK15M-R-FT
RoHS   Yes
DB15 Male Breakout Board, R/A Connector, Feet
QuantityPrice
1+$16.05
10+$15.10
DB15 Male Straight Connector:
BRK15M-S-DIN
RoHS   Yes
DB15 Male Breakout Board, Straight Connector, DIN Rail Mount
QuantityPrice
1+$18.20
10+$17.25
BRK15M-S-FT
RoHS   Yes
DB15 Male Breakout Board, Straight Connector, Feet
QuantityPrice
1+$16.60
10+$15.60

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
