Trigger Interface Board, BNC to Header

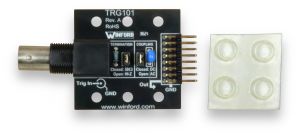

TRG101-FT (Overhead View)

TRG101-FT (Overhead View)
(click image to enlarge)
TRG101-FT (Overhead View)
TRG101-FT (BNC side, feet installed)
TRG101-DIN (Header Side)
  • BNC connector provides interface to external trigger source
  • 2x8 Header provides interface to oscilloscope digital input port
  • Typical application: Connect external trigger source (BNC) to oscilloscope digital input for scope triggering and trigger signal display


General Description and Application

The TRG101 provides a clean, convenient interface to transition from a BNC connection to a header connection. It is ideally suited for connecting an external trigger source (e.g., signal generator) to a digital input on an oscilloscope. This is ideal for use with oscilloscopes that do not have an external trigger input. An added benefit is that the digital input used for triggering can be displayed on the oscilloscope screen. The TRG101 includes a jumper for selecting either high-impedance or 50-Ohm termination for the incoming signal, and also includes a jumper for selecting either AC or DC coupling.

The TRG101 comes with both jumpers installed. The user can easily remove either (or both) if required, based on the particular application configuration.

The rubber-feet version (TRG101-FT) comes with 4 small rubber feet that the user may choose to either install (e.g., benchtop application) or not install (e.g., panel-mount application). The DIN version (TRG101-DIN) comes with DIN clips already installed, ready to snap onto 35mm or 32mm DIN rail.

See datasheet for additional product details.


Please note that it is possible that the connector and header manufacturers and part numbers will vary from batch to batch, resulting in some very slight differences (e.g., overall length of the BNC connector). If there are any connector dimensions that are critical for a particular application, please consult with Winford Engineering to discuss.

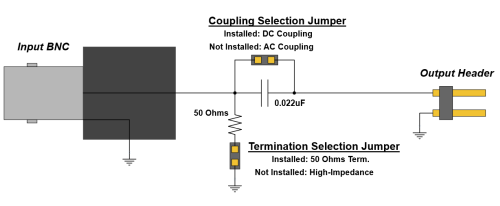

TRG101 Schematic
Schematic of TRG101
EnlargeClick image to enlarge.


Product Documents

Part #DescriptionData SheetPDF DrawingDWG DrawingIGES ModelSTEP Model
TRG101-DINTrigger Interface Board, BNC to Header, Din MountPDF
TRG101-FTTrigger Interface Board, BNC to Header, Rubber Feet (separately)PDF
TRG101V2-DINTrigger Interface Board, BNC to Header, Din MountPDF PDF DWG IGES CAD
TRG101V2-FTTrigger Interface Board, BNC to Header, Rubber Feet (separately)PDF PDF DWG IGES CAD
TRG101-DIN

Trigger Interface Board, BNC to Header, Din Mount

PDF
TRG101-FT

Trigger Interface Board, BNC to Header, Rubber Feet (separately)

PDF
TRG101V2-DIN

Trigger Interface Board, BNC to Header, Din Mount

PDF PDF DWG IGES CAD
TRG101V2-FT

Trigger Interface Board, BNC to Header, Rubber Feet (separately)

PDF PDF DWG IGES CAD


Product Details

  • BNC connector provides interface to external trigger source
  • Onboard jumper for selecting 50-Ohm Termination or High-Impedance
  • Onboard jumper for selecting DC-coupling or AC-coupling
  • 2x8 Header provides interface to oscilloscope digital input port
  • Typical application: Connect external trigger source (BNC) to oscilloscope digital input for scope triggering and trigger signal display
  • Mounting Options: Rubber Feet, Panel, or DIN Rail

Product Changes

Products with "V2" in the part number (e.g. TRG101V2-DIN) use a slightly different BNC connector. The original BNC connector component used on non-V2 boards was discontinued by the manufacturer, so we substituted an equivalent connector from another manufacturer. The connectors used on V2 boards are slightly shorter, with the center contact of the BNC connectors being about 1.2mm closer to the PCB than on non-V2 boards.

We will update the available part numbers in the Pricing and Ordering table below as we transition from the original versions to the V2 versions.

Pricing and Ordering

Product # Description 1+ 10+ 100+ RoHS Buy Now
TRG101-DIN Trigger interface board, BNC to 2x8 right-angle pin header (0.1" pitch), pins/jumpers for 50 Ohms termination and AC/DC coupling selection, DIN mount $29.50 $28.00 $26.00  Yes
TRG101-FT Trigger interface board, BNC to 2x8 right-angle pin header (0.1" pitch), pins/jumpers for 50 Ohms termination and AC/DC coupling selection, rubber feet $28.00 $26.50 $24.50  Yes

TRG101-DIN
RoHS   Yes
Trigger interface board, BNC to 2x8 right-angle pin header (0.1" pitch), pins/jumpers for 50 Ohms termination and AC/DC coupling selection, DIN mount
QuantityPrice
1+$29.50
10+$28.00
100+$26.00
TRG101-FT
RoHS   Yes
Trigger interface board, BNC to 2x8 right-angle pin header (0.1" pitch), pins/jumpers for 50 Ohms termination and AC/DC coupling selection, rubber feet
QuantityPrice
1+$28.00
10+$26.50
100+$24.50

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
