Solid-State 2-Channel SPST Relay Board: RLYSS102

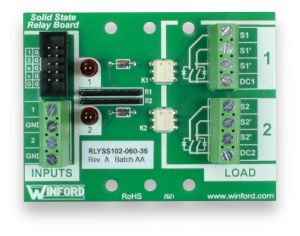

RLYSS102-060-35-FT (Overhead View)

RLYSS102-060-35-FT (Overhead View)
(click image to enlarge)
RLYSS102-060-35-FT (Overhead View)

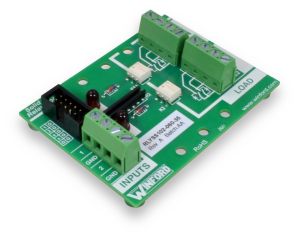

RLYSS102-060-35-FT
RLYSS102-060-35-DIN
  • Provides quick and easy solid-state relay wiring
  • Two Solid-State SPST relays and drivers
  • Accepts logic level control inputs from 3.3V logic up to 24V logic
  • Screw terminal connections
  • Convenient for data acquisition & signal switching projects
  • LED indicator for each solid-state relay
  • Easily configured for switching either DC loads or AC loads
  • Available in rubber feet or DIN rail mount
See Also: All Relay Boards


General Description

Featuring solid-state relays, this relay board provides a convenient way to switch low-current or medium-current signals in your project. It is also suitable for use in automated failure-injection testing (e.g., short-open testing for sensor harness FMEA verification). A solid-state relay (SSR) has no moving parts, is silent, has no contact bounce, does not require a particular minimum load current, and does not require a power supply for activation. This board includes two SPST solid-state relays, driver circuits, and LED indicators. Simply connect your logic-level signals to the inputs, and the relays are ready to use. The SSR outputs (contacts, or load-side connections) are electrically isolated from the rest of the board, which allows the board to be used in a wide variety of low-current to medium-current applications, including both AC and DC loads.

With this board, a logic-level signal (e.g., 3.3V or 5V) or higher-voltage signal (e.g., 24V) may be used to control a solid-state relay. Examples of logic-level signals include the outputs of an I/O card or a microcontroller's output pins (e.g., Arduino or Raspberry Pi).

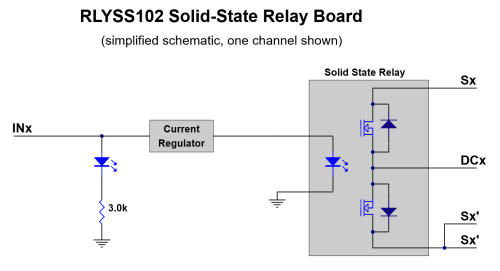

RLYSS102 Schematic
Schematic of RLYSS102
EnlargeClick image to enlarge.

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

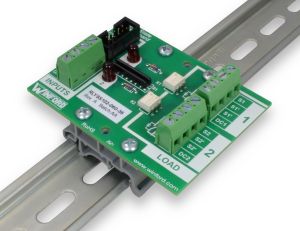

RLYSS102-060-35-DIN
DIN Rail Mount
RLYSS102-060-35-DIN
EnlargeClick image to enlarge.
Rail not included
RLYSS102-060-35-FT
Rubber Feet
RLYSS102-060-35-FT
EnlargeClick image to enlarge.

Product Documents

Part #DescriptionData Sheet
RLYSS102RLYSS102 2-Channel Solid-State Relay BoardPDF
RLYSS102

RLYSS102 2-Channel Solid-State Relay Board

PDF

Product Details

  • Two Solid-State SPST relays and drivers
  • Accepts logic level control inputs from 3.3V logic up to 24V logic
  • LED indicator for each solid-state relay
  • Easily configured for switching either DC loads or AC loads
  • Input-side screw terminals accept 12-30 AWG wire
  • Load-side screw terminals accept 12-30 AWG wire
  • Pin header (2x5, 0.1" pitch) provided for input control signals (in addition to screw terminals)
  • Each input signal activates its solid-state relay without the need for a power supply
  • Approximate dimensions: 3.2" x 2.4"
  • Available in rubber feet or DIN rail mount

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
Load Rating: 60V, 3.5A AC Wiring / 7A DC Wiring
RLYSS102-060-35-DIN Solid-state relay board, 2 channels, 60V, 3.5A per channel AC configuration, 7A per channel DC configuration, DIN mount. $30.00 $28.00  No
RLYSS102-060-35-FT Solid-state relay board, 2 channels, 60V, 3.5A per channel AC configuration, 7A per channel DC configuration, rubber feet. $28.50 $26.50  No

Load Rating: 60V, 3.5A AC Wiring / 7A DC Wiring
RLYSS102-060-35-DIN
RoHS   No
Solid-state relay board, 2 channels, 60V, 3.5A per channel AC configuration, 7A per channel DC configuration, DIN mount.
QuantityPrice
1+$30.00
10+$28.00
RLYSS102-060-35-FT
RoHS   No
Solid-state relay board, 2 channels, 60V, 3.5A per channel AC configuration, 7A per channel DC configuration, rubber feet.
QuantityPrice
1+$28.50
10+$26.50

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
