4-Channel DPDT Relay Board: RLPD104

<b>RLPD104-12V-DIN</b>

RLPD104-12V-DIN
(click image to enlarge)
  • Four DPDT relays
  • Available in 12V or 24V coil voltage
  • Screw terminal connections
  • LED indicator for each relay
  • Relay contacts rated for 5A current
  • Available in rubber feet or DIN rail mount

Scroll to Buy
See Also: Logic Controlled Relay Boards,   All Relay Boards


General Description

This relay board provides a convenient way to add relays to your project by allowing the connections to the coils and contacts to be wired with screw terminals. No soldering is required. This board includes four DPDT relays with convenient screw terminal connections and includes LED's which indicate when each relay coil is energized. In addition, a protection diode is installed across the coil of each relay in order to suppress the inductive spikes which occur when relay coils are de-energized. The relay contacts are electrically isolated from the rest of the board, which allows the load circuits to be electrically isolated from the control circuits.

This board does not include any relay driver circuitry, but instead has direct screw terminal connections to the coils and contacts of the relays. For a similar board with built-in driver circuitry and SPDT contacts, please see the RLY104 Relay Board.

Relays allow high-current loads to be switched with a low-current control signal. The control signal energizes an electromagnetic coil which mechanically closes a set of electrical contacts. The contacts are electrically isolated from the coil, allowing a low-voltage, low-current control signal to control a high-voltage, high-current load. These relays can be used to switch both AC and DC loads in a variety of applications.

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

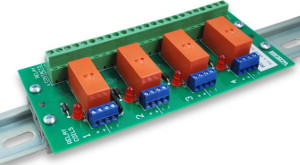

RLPD104-12V-DIN
DIN Rail Mount
RLPD104-12V-DIN
Click image to enlarge.
Rail not included

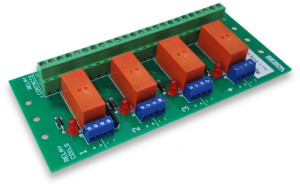

RLPD104-12V-FT
Rubber Feet
RLPD104-12V-FT
Click image to enlarge.

Product Documents

Part #DescriptionData SheetSchematic
RLPD104 Rev ARLPD104 Rev A 4-Channel Relay Board
RLPD104 Rev A
RLPD104 Rev A 4-Channel Relay Board

Product Details

  • Four DPDT relays
  • Available in 12V or 24V coil voltage
  • LED indicator for each relay
  • Relay contacts rated for 5A current
  • Screw terminals for relay coils (accepts 16-26 AWG wire)
  • Screw terminals for contacts (accepts 12-24 AWG wire)
  • Approximate dimensions: 2.6" x 5.9"
  • Available in rubber feet or DIN rail mount


Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
12V Coils:
RLPD104-12V-DIN Relay Board, Passive, 5A DPDT, 4 relays, 12V DC, DIN Rail Mount $51.00 $49.00 Yes
RLPD104-12V-FT Relay Board, Passive, 5A DPDT, 4 relays, 12V DC, Feet $49.50 $47.50 Yes
24V Coils:
RLPD104-24V-DIN Relay Board, Passive, 5A DPDT, 4 relays, 24V DC, DIN Rail Mount $51.00 $49.00 Yes
RLPD104-24V-FT Relay Board, Passive, 5A DPDT, 4 relays, 24V DC, Feet $49.50 $47.50 Yes
12V Coils:
RLPD104-12V-DIN
Relay Board, Passive, 5A DPDT, 4 relays, 12V DC, DIN Rail Mount
RoHS: Yes
Buy Now:
QuantityPrice
1+$51.00
10+$49.00
RLPD104-12V-FT
Relay Board, Passive, 5A DPDT, 4 relays, 12V DC, Feet
RoHS: Yes
Buy Now:
QuantityPrice
1+$49.50
10+$47.50
24V Coils:
RLPD104-24V-DIN
Relay Board, Passive, 5A DPDT, 4 relays, 24V DC, DIN Rail Mount
RoHS: Yes
Buy Now:
QuantityPrice
1+$51.00
10+$49.00
RLPD104-24V-FT
Relay Board, Passive, 5A DPDT, 4 relays, 24V DC, Feet
RoHS: Yes
Buy Now:
QuantityPrice
1+$49.50
10+$47.50

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
