Breakout for Arduino MICRO
- Socket headers allow Arduino MICRO to be inserted or removed as needed
- Signals are accessible at terminal blocks as well as thru-hole pads
- Design allows user to easily add their own DC-DC converter for operation at higher supply voltages
- Includes prototype area
- Mounting Options: Rubber Feet or DIN Rail
- Arduino MICRO and DIN rail not included
General Description
The RDBKMIC1 provides a convenient method to connect to an Arduino MICRO.
After plugging an Arduino MICRO into the socket headers, signals may be conveniently accessed at terminal blocks and/or thru-hole pads. A number of convenient design features, such as a prototype area and pads that accommodate a DC-DC* converter for operation from higher supply voltages, facilitate the inclusion of an Arduino MICRO in a variety of projects.
*See app note section for more information. DC-DC converter is not included with RDBKMIC1.
Signal Connections
The signal connections on this product are clearly marked. Please note the following details:
1. All ground connections (GND) shown on this breakout board are electrically connected together (with or without a MICRO module plugged in).
2. There are two signals dedicated to Reset (RST). Without a MICRO module plugged in, these signals are not connected. When a MICRO is plugged in, these signals are connected (thru the MICRO).
A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".
Product Documents
| Description | Data Sheet | PDF Drawing | DWG Drawing | IGES Model | STEP Model | App Note |
|---|---|---|---|---|---|---|
| Arduino MICRO Breakout, DIN Mount |
|
|
|
|
| |
| Arduino MICRO Breakout, Rubber Feet |
|
|
|
|
| |
| Using MICRO with higher supply voltage |
|
Arduino MICRO Breakout, DIN Mount
Arduino MICRO Breakout, Rubber Feet
Using MICRO with higher supply voltage
Mounting Options

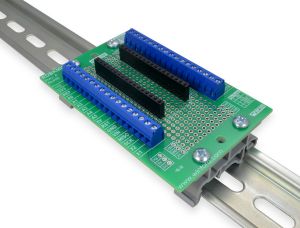

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For mounting the board on a chassis / panel, we suggest using 1/4" nylon standoffs under the mounting holes, and #6 screws. This provides space under the board, to keep the bottom-side pin solder joints up off the chassis.RDBKMIC1-DIN
Click image to enlarge. Rail not included

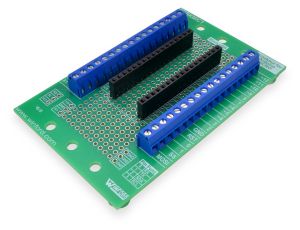

RDBKMIC1-FT
Click image to enlarge.Product Details
- Socket headers allow Arduino MICRO to be inserted or removed as needed
- Signals are accessible at terminal blocks as well as thru-hole pads
- Two extra terminal block positions are included and are terminated at thru-hole pads
- High-quality rising cage clamp terminal blocks provide consistent performance over time
- Screw terminals accept 16-26 AWG wire
- Design allows user to easily add their own DC-DC converter for operation at higher supply voltages
- Includes prototype area
- Prototype area includes pads tied to 3.3V, 5V, and GND
- Pin functions are clearly shown on the PCB
- Approximate dimensions: 3.6" x 2.3"
- Mounting Options: Rubber Feet or DIN Rail
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
| RDBKMIC1-DIN | Breakout for Arduino MICRO -- 3.5mm term blocks, thru-hole signal access points, small proto area, DIN mount | $20.60 | $19.50 | Yes | |
| RDBKMIC1-FT | Breakout for Arduino MICRO -- 3.5mm term blocks, thru-hole signal access points, small proto area, Feet | $18.95 | $17.80 | Yes |
| Quantity | Price |
|---|---|
| 1+ | $20.60 |
| 10+ | $19.50 |
| Quantity | Price |
|---|---|
| 1+ | $18.95 |
| 10+ | $17.80 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
