Fiber Optic Transmitter Board: 2 Digital Channels

FOTX102-DIN

FOTX102-DIN
(click image to enlarge)
FOTX102-DIN
FOTX102-FT
FOTX102-FT (Overhead View)
FOTX102-DIN (Application)
  • Two channels of fiber optic digital transmitters
  • Directly interfaces to fiber cable without needing optical connectors
  • Optical link provides high level of isolation and electromagnetic immunity
  • LEDs provide visual indication for each signal
  • Wide operating voltage range (3.3V to 24V)
  • Suitable for signals from 3.3V logic up to 24V logic
  • Mounting Options: Rubber Feet, Panel, or DIN Rail


General Description

The FOTX102 provides two digital fiber optic transmitter channels. This product is intended to typically be used with fiber optic receiver board FORX102.

This board includes terminal blocks on the input side to provide convenient connections for the signals. The inputs are designed to interface with equipment using logic voltages of anywhere from 3.3V to 24V. On the output side, the fiber optic transmitters directly interface with fiber optic cable, eliminating the need for optical connectors. This provides both a convenient and economical solution.

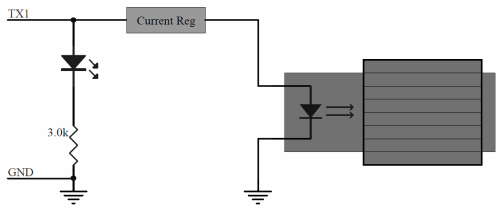

FOTX102 Simplified Schematic
Simplified Schematic of FOTX102
EnlargeClick image to enlarge.

Applications

  • Electrical Isolation
  • Environments with high levels of electrical noise
  • Interface between equipment with different grounds
  • Interface between equipment with different logic levels


Product Documents

Part #DescriptionData Sheet
FOTX102-x2-Channel Fiber Optic Transmitter datasheetPDF
FOTX102-x

2-Channel Fiber Optic Transmitter datasheet

PDF

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.
FOTX102-DIN
DIN Rail Mount
FOTX102-DIN
EnlargeClick image to enlarge.
Rail not included

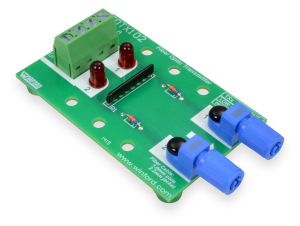

FOTX102-FT
Rubber Feet
FOTX102-FT
EnlargeClick image to enlarge.

Product Details

  • Two channels of fiber optic digital transmitters
  • Directly interfaces to fiber cable without needing optical connectors
  • For use with economical fiber cable having 1mm core / 2.2mm jacket
  • Transmits visible red light
  • Optical link provides high level of isolation and electromagnetic immunity
  • LEDs provide visual indication for each signal
  • Wide operating voltage range (3.3V to 24V)
  • Suitable for signals from 3.3V logic up to 24V logic
  • Terminal blocks provide easy, convenient connections for signals
  • Includes redundant ground terminal-block connections
  • Approximate PCB dimensions: 2.7" x 1.7"
  • Mounting Options: Rubber Feet, Panel, or DIN Rail

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
FOTX102-DIN Fiber Optic Transmitter, 2 channels, for use with 1mm core / 2.2mm outer jacket fiber cable, DIN mount $28.00 $26.50  Yes
FOTX102-FT Fiber Optic Transmitter, 2 channels, for use with 1mm core / 2.2mm outer jacket fiber cable, rubber feet $26.50 $25.00  Yes

FOTX102-DIN
RoHS   Yes
Fiber Optic Transmitter, 2 channels, for use with 1mm core / 2.2mm outer jacket fiber cable, DIN mount
QuantityPrice
1+$28.00
10+$26.50
FOTX102-FT
RoHS   Yes
Fiber Optic Transmitter, 2 channels, for use with 1mm core / 2.2mm outer jacket fiber cable, rubber feet
QuantityPrice
1+$26.50
10+$25.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
