Fiber Optic Receiver Board: 2 Digital Channels

FORX102-DIN

FORX102-DIN
(click image to enlarge)
FORX102-DIN
FORX102-FT
FORX102-FT (Overhead View)
FORX102-DIN (Application)
  • Two channels of fiber optic digital receivers
  • Directly interfaces to fiber cable without needing optical connectors
  • Non-inverting open-collector output for each channel
  • Optical link provides high level of isolation and electromagnetic immunity
  • LEDs provide visual indication for each signal
  • Wide operating voltage range (3.3V to 24V)
  • Suitable for signals from 3.3V logic up to 24V logic
  • Mounting Options: Rubber Feet, Panel, or DIN Rail


General Description

The FORX102 provides two digital fiber optic receiver channels with non-inverting, open-collector outputs. The outputs are designed to interface with equipment using logic voltages of anywhere from 3.3V to 24V. This product is intended to typically be used with fiber optic transmitter board FOTX102.

This board includes terminal blocks on the output side to provide convenient access to the signals. On the input side, the fiber optic receivers directly interface with fiber optic cable, eliminating the need for optical connectors. This provides both a convienent and economical solution.

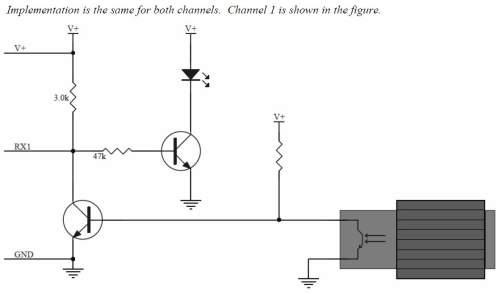

FORX102 Simplified Schematic
Simplified Schematic of FORX102
EnlargeClick image to enlarge.

Applications

  • Electrical Isolation
  • Environments with high levels of electrical noise
  • Interface between equipment with different grounds
  • Interface between equipment with different logic levels


Product Documents

Part #DescriptionData SheetPDF DrawingDWG DrawingIGES ModelSTEP Model
FORX102-DIN2-Channel Fiber Optic Receiver, DIN MountPDF PDF DWG IGES CAD
FORX102-FT2-Channel Fiber Optic Receiver, Rubber FeetPDF PDF DWG IGES CAD
FORX102-DIN

2-Channel Fiber Optic Receiver, DIN Mount

PDF PDF DWG IGES CAD
FORX102-FT

2-Channel Fiber Optic Receiver, Rubber Feet

PDF PDF DWG IGES CAD

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.
FORX102-DIN
DIN Rail Mount
FORX102-DIN
EnlargeClick image to enlarge.
Rail not included

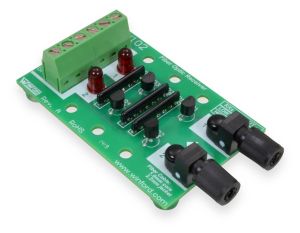

FORX102-FT
Rubber Feet
FORX102-FT
EnlargeClick image to enlarge.

Product Details

  • Two channels of fiber optic digital receivers
  • Directly interfaces to fiber cable without needing optical connectors
  • For use with economical fiber cable having 1mm core / 2.2mm jacket
  • Designed for detection of visible red light
  • Non-inverting open-collector output for each channel
  • Onboard pullup resistor included for each output
  • Optical link provides high level of isolation and electromagnetic immunity
  • LEDs provide visual indication for each signal
  • Wide operating voltage range (3.3V to 24V)
  • Suitable for signals from 3.3V logic up to 24V logic
  • Terminal blocks provide easy, convenient access to signals
  • Includes redundant ground terminal-block connections
  • Approximate PCB dimensions: 2.7" x 1.7"
  • Mounting Options: Rubber Feet, Panel, or DIN Rail

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
FORX102-DIN Fiber Optic Receiver, 2 channels, for use with 1mm core / 2.2mm outer jacket fiber cable, DIN mount $28.90 $27.30  Yes
FORX102-FT Fiber Optic Receiver, 2 channels, for use with 1mm core / 2.2mm outer jacket fiber cable, rubber feet $27.30 $25.70  Yes

FORX102-DIN
RoHS   Yes
Fiber Optic Receiver, 2 channels, for use with 1mm core / 2.2mm outer jacket fiber cable, DIN mount
QuantityPrice
1+$28.90
10+$27.30
FORX102-FT
RoHS   Yes
Fiber Optic Receiver, 2 channels, for use with 1mm core / 2.2mm outer jacket fiber cable, rubber feet
QuantityPrice
1+$27.30
10+$25.70

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
