Dual Row Header Connectors

DH40LE

DH40LE
(click image to enlarge)
DH40LE

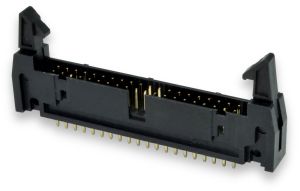

DH40LE (Front View)
DH10LE
DH14LE
DH16LE
DH20LE
DH26LE
DH34LE
DH50LE
DH60LE
DH64LE
  • Available in multiple pin counts
  • Standard 0.1" pin spacing
  • Ejector latches included for easy removal of mating connector
See Also: Breakout Boards,   IDC Header Socket Connectors,   Ribbon Cable


General Description

These are standard 0.1" pitch dual-row pin headers designed for PCB mounting. These are male pin headers designed to accept standard female socket connectors, such as the Winford DSI connector series. The DH series connectors have a polarizing slot in the middle to ensure correct orientation when used with a polarized socket connector. These are straight connectors, as opposed to right angle.

Winford Engineering uses these DH series connectors on our dual-row header breakout boards. They have proven to be durable and reliable.

Product Details

  • Available in multiple pin counts
  • Standard 0.1" pin spacing
  • Ejector latches included for easy removal of mating connector

Pricing and Ordering

Product # Description 1+ 10+ 100+ RoHS Buy Now
DH10LE Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 10 Position (2x5) $0.70 $0.56 $0.42  Yes
DH12LE Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 12 Position (2x6) $0.82 $0.67 $0.54  Yes
DH14LE Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 14 Position (2x7) $0.85 $0.70 $0.57  Yes
DH16LE Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 16 Position (2x8) $0.92 $0.75 $0.63  Yes
DH20LE Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 20 Position (2x10) $1.00 $0.85 $0.75  Yes
DH26LE Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 26 Position (2x13) $1.27 $1.10 $0.99  Yes
DH34LE Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 34 Position (2x17) $1.40 $1.23 $1.12  Yes
DH40LE Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 40 Position (2x20) $1.52 $1.39 $1.19  Yes
DH50LE Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 50 Position (2x25) $1.60 $1.45 $1.21  Yes
DH60LE Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 60 Position (2x30) $2.15 $1.95 $1.70  Yes
DH64LE Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 64 Position (2x32) $2.25 $2.05 $1.85  Yes

DH10LE
RoHS   Yes
Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 10 Position (2x5)
QuantityPrice
1+$0.70
10+$0.56
100+$0.42
DH12LE
RoHS   Yes
Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 12 Position (2x6)
QuantityPrice
1+$0.82
10+$0.67
100+$0.54
DH14LE
RoHS   Yes
Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 14 Position (2x7)
QuantityPrice
1+$0.85
10+$0.70
100+$0.57
DH16LE
RoHS   Yes
Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 16 Position (2x8)
QuantityPrice
1+$0.92
10+$0.75
100+$0.63
DH20LE
RoHS   Yes
Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 20 Position (2x10)
QuantityPrice
1+$1.00
10+$0.85
100+$0.75
DH26LE
RoHS   Yes
Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 26 Position (2x13)
QuantityPrice
1+$1.27
10+$1.10
100+$0.99
DH34LE
RoHS   Yes
Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 34 Position (2x17)
QuantityPrice
1+$1.40
10+$1.23
100+$1.12
DH40LE
RoHS   Yes
Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 40 Position (2x20)
QuantityPrice
1+$1.52
10+$1.39
100+$1.19
DH50LE
RoHS   Yes
Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 50 Position (2x25)
QuantityPrice
1+$1.60
10+$1.45
100+$1.21
DH60LE
RoHS   Yes
Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 60 Position (2x30)
QuantityPrice
1+$2.15
10+$1.95
100+$1.70
DH64LE
RoHS   Yes
Dual Row 0.1" Male Pin Header, Long Ejector, Vertical, 64 Position (2x32)
QuantityPrice
1+$2.25
10+$2.05
100+$1.85

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
