Half-Pitch DSUB 68-Pin Male to Flying Leads Cables

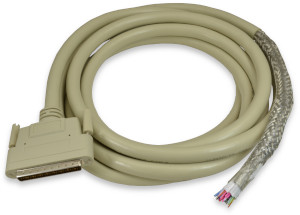

CBHPD68MLD-12 (Half-Pitch DSUB Cable)

CBHPD68MLD-12 (Half-Pitch DSUB Cable)
(click image to enlarge)
CBHPD68MLD-12 (Half-Pitch DSUB Cable)
  • Half-Pitch DSUB 68-pin Male connector to flying leads
  • Male connector is overmolded with strain relief
  • Thumbscrews (#2-56 threads) for secure connections
  • Twisted pair wiring with cable shield
  • 8 inch flying leads
See Also: All HPDSUB Cables,   Half-Pitch DSUB Breakout Boards,   All Breakout Boards


General Description

Centronics, MDR, VHDCI, HPDSUB  Connector Guide

Use these cables to interconnect equipment which utilizes 68-pin HP DSUB (Half-Pitch DSUB) connectors. These attractive cables feature a 68-pin Male connector on one end, 8" flying leads on the other end, twisted pair wiring, foil and braided shielding, and attractive overmolded ends. Thumbscrews (#2-56 threads) secure the cable to the mating connector. Cable length is 12 feet.

The connector used on this product goes by several different names, including Half-Pitch DSUB, HPDSUB, HPDB68, Micro DB68, .050 DSUB, Amplimite .050 Series, 0.050 D-Type, HD68, SCSI, and SCSI III. If you are uncertain which connector you have, please consult our connector guide to verify the connector family you need.

Connector Details

The Half-Pitch DSUB (HPDSUB) series of connectors provides a compact arrangement of pin contacts on 0.05" centers, which is tighter than full-size DSUB connectors. The #2-56 threaded thumb screws provide a secure mechanical connection.

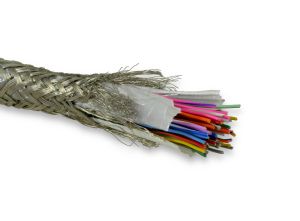

Twisted Pairing

This cable utilizes twisted pair wiring. The pair mapping is as follows: 1/35, 2/36 ... 33/67, 34/68. See datasheet for color codes.

HP DSUB Breakout Boards

These half pitch DSUB cables can be used in conjunction with Winford Engineering's 68-pin Half-Pitch DSUB breakout boards, shown below.

BRKBDP68FV1-R-DIN
BRKBDP68FV1-R-DIN
EnlargeClick image to enlarge.
BRKBDP68FV1-SB-FT
BRKBDP68FV1-SB-FT
EnlargeClick image to enlarge.

Product Documents

Part #DescriptionData Sheet
CBHPD68MLD-xHPDSUB 68-pin Male to Flying Leads CablePDF
CBHPD68MLD-x

HPDSUB 68-pin Male to Flying Leads Cable

PDF

Product Details

  • Half-Pitch DSUB 68-pin Male connector to flying leads
  • Male connector is overmolded with strain relief
  • Thumbscrews (#2-56 threads) for secure connections
  • Twisted pair wiring with cable shield
  • 8 inch flying leads
  • Conductor size: 28 AWG
  • Foil and braid shields

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
CBHPD68MLD-12 Half Pitch D-sub (HPDB) Cable, 68-Pin Male to Flying Leads, Thumbscrews, 12Ft Length $47.00 $43.00  Yes

CBHPD68MLD-12
RoHS   Yes
Half Pitch D-sub (HPDB) Cable, 68-Pin Male to Flying Leads, Thumbscrews, 12Ft Length
QuantityPrice
1+$47.00
10+$43.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
