Half-Pitch DSUB (HPDSUB) 68-Pin Breakout Board

BRKBDP68FV1-R-DIN

BRKBDP68FV1-R-DIN
(click image to enlarge)
BRKBDP68FV1-R-DIN
BRKBDP68FV1-R-DIN (Connector View)
BRKBDP68FV1-R-FT
BRKBDP68FV1-R-FT (Overhead View)
BRKBDP68FV1-SB-DIN
BRKBDP68FV1-SB-FT
BRKBDP68FV1-SB-FT (Connector Hardware)
BRKBDP68FV1-SB-FT (Overhead View)
BRKBDP68MV1-SB-DIN
BRKBDP68MV1-SB-FT
BRKBDP68MV1-SB-FT (Connector Hardware)
BRKBDP68MV1-SB-FT (Overhead View)
BRKBDP68MV1-R-DIN
BRKBDP68MV1-R-FT
BRKBDP68MV1-R-FT (Connector Hardware)
BRKBDP68MV1-R-FT (Overhead View)
  • Half-Pitch DSUB 68-pin connector (0.050 series D-type connector)
  • Available with Male or Female, vertical or right angle connectors
  • Screw terminal for each of the 68 lines, plus shield
  • Solder pad connection space for all 68 lines, plus shield
  • Rubber feet or DIN rail mount
See Also: 68-Pin HPDSUB Spring Terminal Breakout Board,   HPDSUB Cables


General Description

Centronics, MDR, VHDCI, HPDSUB  Connector Guide

Make connections quickly and reliably with this breakout board, which brings every pin of its 68-pin Half-Pitch D-type connector out to screw terminals.

Each pin, including shield, is also brought to solder pads (2 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

The connector used on this product goes by several different names, including Half-Pitch DSUB, HPDSUB, HPDB68, Micro DB68, .050 DSUB, Amplimite .050 Series, 0.050 D-Type, HD68, SCSI, and SCSI III. If you are uncertain which connector you have, please consult our connector guide to verify the connector family you need.

National Instruments Compatibility

National Instruments™ uses the 68-pin half-pitch DSUB connector on some of their DAQ cards and accessories. This Winford breakout board is a good option for interfacing to these National Instruments products. Note that NI™ actually uses two different styles of 68-pin connectors: the VHDCI, and the half-pitch DSUB (0.050 D-type). For more information on VHDCI connection products, please see our BRKAVH68FV1 breakout board page. See our connector guide if you need help determining which type of connector you have.

National Instruments offers several 68-pin half-pitch DSUB breakout boards with varying layout and functional options. The Winford BRKBDP68FV1 and BRKBDP68MV1 breakout boards are very similar in function to the basic NI models CB-68LP and CB-68LPR. The main difference is that Winford offers both Male and Female connector options, while the NI offers only a male connector board. This may affect your cable selection.

Note: "National Instruments" and "NI" are trademarks of National Instruments. Neither Winford Engineering, nor any software programs or other goods or services offered by Winford Engineering, are affiliated with, endorsed by, or sponsored by National Instruments.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with data acquisition (DAQ) equipment, control systems, and other devices that use the 68-pin 0.050 series DSUB connector.

Need something different? We stock a variety of Half-Pitch DSUB breakout board styles . Please have a look!

HPDSUB Connector Details

The Half-Pitch DSUB (HPDSUB) series of connectors provides a compact arrangement of pin contacts on 0.05" centers, which is tighter than full-size DSUB connectors. Winford Engineering currently utilizes HPDSUB connectors from Amp™ / TE Connectivity™ on these breakout boards; connector details are listed below.

68-Pin HPDSUB Connector Details
Breakout Board BRKxDP68FV1 (Female) BRKxDP68MV1 (Male)
Connector Mfg. AMP / TE Connectivity
Mfg. Part # Right Angle: 5787082-9
Vertical: 5749721-7
Right Angle: 2-5174225-5
Vertical: 2-5174339-5
Latch Blocks Present Present
Jack Sockets Present Present

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP ModelDocument
BRKBDP68FV1-R-DIN68-Pin Female HPDB, Right Angle, DIN MountPDF DWG IGES CAD
BRKBDP68FV1-R-FT68-Pin Female HPDB, Right Angle, Rubber FeetPDF DWG IGES CAD
BRKBDP68FV1-SB-DIN68-Pin Female HPDB, Straight Connector, DIN MountPDF DWG IGES CAD
BRKBDP68FV1-SB-FT68-Pin Female HPDB, Straight Connector, Rubber FeetPDF DWG IGES CAD
BRKBDP68MV1-R-DIN68-Pin Male HPDB, Right Angle, DIN MountPDF DWG IGES CAD
BRKBDP68MV1-R-FT68-Pin Male HPDB, Right Angle, Rubber FeetPDF DWG IGES CAD
BRKBDP68MV1-SB-DIN68-Pin Male HPDB, Straight Connector, DIN MountPDF DWG IGES CAD
BRKBDP68MV1-SB-FT68-Pin Male HPDB, Straight Connector, Rubber FeetPDF DWG IGES CAD
Connector GuideWhich connector do I have? Consult this helpful identification guide.PDF
BRKBDP68FV1-R-DIN

68-Pin Female HPDB, Right Angle, DIN Mount

PDF DWG IGES CAD
BRKBDP68FV1-R-FT

68-Pin Female HPDB, Right Angle, Rubber Feet

PDF DWG IGES CAD
BRKBDP68FV1-SB-DIN

68-Pin Female HPDB, Straight Connector, DIN Mount

PDF DWG IGES CAD
BRKBDP68FV1-SB-FT

68-Pin Female HPDB, Straight Connector, Rubber Feet

PDF DWG IGES CAD
BRKBDP68MV1-R-DIN

68-Pin Male HPDB, Right Angle, DIN Mount

PDF DWG IGES CAD
BRKBDP68MV1-R-FT

68-Pin Male HPDB, Right Angle, Rubber Feet

PDF DWG IGES CAD
BRKBDP68MV1-SB-DIN

68-Pin Male HPDB, Straight Connector, DIN Mount

PDF DWG IGES CAD
BRKBDP68MV1-SB-FT

68-Pin Male HPDB, Straight Connector, Rubber Feet

PDF DWG IGES CAD
Connector Guide

Which connector do I have? Consult this helpful identification guide.

PDF

Applications

These breakout boards are general-purpose in nature and useful when interfacing to a variety of equipment. The 68-pin HPDSUB connector has traditionally been known as the SCSI-3 (SCSI-III) connector. It is also used in data aquisition and I/O applications. National Instruments™ has made extensive use of this connector on their I/O equipment.

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

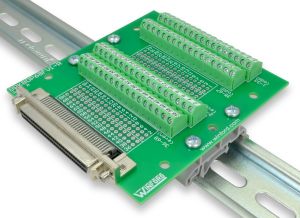

BRKBDP68FV1-SB-DIN
DIN Rail Mount
BRKBDP68FV1-SB-DIN
EnlargeClick image to enlarge.
Rail not included

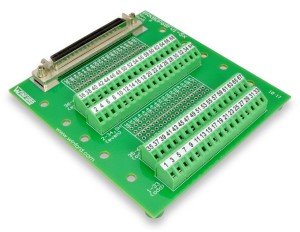

BRKBDP68FV1-SB-FT
