Half-Pitch DSUB (HPDSUB) 68-Pin Male-Male Cables

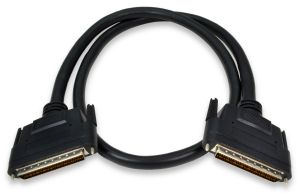

CBHPD68MD-3 (Half-Pitch DSUB Cable)

CBHPD68MD-3 (Half-Pitch DSUB Cable)
(click image to enlarge)
CBHPD68MD-3 (Half-Pitch DSUB Cable)
CBHPD68MD-6 (Half-Pitch DSUB Cable)
CBHPD68MD2-12 (Half-Pitch DSUB Cable)
68-Pin Half-Pitch DSUB Male Connector
  • Half-Pitch DSUB 68-pin connectors
  • Male connector on each end
  • Overmolded ends with strain reliefs
  • Thumbscrews for secure connections
  • Twisted pair wiring with cable shield
See Also: All HPDSUB Cables,   Half-Pitch DSUB Breakout Boards,   All Breakout Boards


General Description

Centronics, MDR, VHDCI, HPDSUB  Connector Guide

Use these cables to interconnect equipment which utilizes 68-pin HP DSUB (Half-Pitch DSUB) connectors. These attractive cables feature 68-pin Male connectors on each end, overmolded ends with strain reliefs, twisted pair wiring, and a shielded cable jacket. Thumbscrews secure the cable to the mating connector. We stock several cable lengths.



These cables are general purpose and are compatible with Winford Engineering's 68-pin Half-Pitch DSUB breakout boards.

The connector used on this product goes by several different names, including Half-Pitch DSUB, HPDSUB, HPDB68, Micro DB68, .050 DSUB, Amplimite .050 Series, 0.050 D-Type, HD68, SCSI, and SCSI III. If you are uncertain which connector you have, please consult our connector guide to verify the connector family you need.

Connector Details

The Half-Pitch DSUB (HPDSUB) series of connectors provides a compact arrangement of pin contacts on 0.05" centers, which is tighter than full-size DSUB connectors.

Twisted Pairing

This cable utilizes twisted pair wiring. The pair mapping is as follows: 1/35, 2/36 ... 33/67, 34/68.

HP DSUB Breakout Boards

These half pitch DSUB cables are compatible with Winford Engineering's 68-pin Half-Pitch DSUB breakout boards, shown below.
BRKBDP68FV1-SB-FT
BRKBDP68FV1-SB-FT
EnlargeClick image to enlarge.

Product Documents

Part #DescriptionData Sheet
CBHPD68MD-xHPDSUB 68-pin Male-Male Cable (3ft, 6ft lengths)PDF
CBHPD68MD2-xHPDSUB 68-pin Male-Male Cable (12 ft length)PDF
CBHPD68MD-x

HPDSUB 68-pin Male-Male Cable (3ft, 6ft lengths)

PDF
CBHPD68MD2-x

HPDSUB 68-pin Male-Male Cable (12 ft length)

PDF

Product Details

  • Half-Pitch DSUB 68-pin connectors
  • Overmolded ends with strain reliefs
  • Thumbscrews for secure connections
  • Twisted pair wiring with cable shield

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
CBHPD68MD-3 Half Pitch D-sub (HPDB) Cable, 68-Pin Male-Male, Thumbscrews, 3Ft $34.25 $29.45  Yes
CBHPD68MD-6 Half Pitch D-sub (HPDB) Cable, 68-Pin Male-Male, Thumbscrews, 6Ft $37.45 $32.10  Yes
CBHPD68MD2-12 Half Pitch D-sub (HPDB) Cable, 68-Pin Male-Male, 28 AWG Wire, Thumbscrews, 12Ft $67.00 $62.00  Yes

CBHPD68MD-3
RoHS   Yes
Half Pitch D-sub (HPDB) Cable, 68-Pin Male-Male, Thumbscrews, 3Ft
QuantityPrice
1+$34.25
10+$29.45
CBHPD68MD-6
RoHS   Yes
Half Pitch D-sub (HPDB) Cable, 68-Pin Male-Male, Thumbscrews, 6Ft
QuantityPrice
1+$37.45
10+$32.10
CBHPD68MD2-12
RoHS   Yes
Half Pitch D-sub (HPDB) Cable, 68-Pin Male-Male, 28 AWG Wire, Thumbscrews, 12Ft
QuantityPrice
1+$67.00
10+$62.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
