Half-Pitch DSUB (HPDSUB) 50-Pin Cables

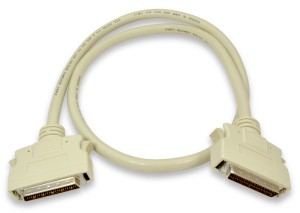

CBHPD50MB-3 (Half-Pitch DSUB Cable)

CBHPD50MB-3 (Half-Pitch DSUB Cable)
(click image to enlarge)
  • Half-Pitch DSUB 50-pin connectors
  • Male connector on each end
  • Overmolded ends with strain reliefs
  • Utilizes connector latches for secure connections
  • Twisted pair wiring with cable shield

Scroll to Buy
See Also: 50-Pin Half-Pitch DSUB Breakout Board,   68-Pin Half-Pitch DSUB Cables,   All Breakout Boards


General Description

Centronics, MDR, VHDCI, HPDSUB  Connector Guide
Use these cables to interconnect equipment which utilizes 50-pin HP DSUB (Half-Pitch DSUB) connectors. These attractive cables feature 50-pin Male connectors on each end, overmolded ends with strain reliefs, twisted pair wiring, and a shielded cable jacket. Latches secure the cable to the mating connector. Two cable lengths (3 feet and 6 feet) are available. These cables are general purpose and are compatible with Winford Engineering's 50-pin Half-Pitch DSUB breakout boards.
The connector used on this product goes by several different names, including Half-Pitch DSUB, HPDSUB, HPDB50, Micro DB50, .050 DSUB, Amplimite .050 Series, 0.050 D-Type, HD50, SCSI, and SCSI II. Our connector guide can help to verify the connector family you have.

Connector Details

The Half-Pitch DSUB (HPDSUB) series of connectors provides a compact arrangement of pin contacts on 0.05" centers, which is tighter than full-size DSUB connectors.

Twisted Pairing

This cable utilizes twisted pair wiring. The pair mapping is as follows: 1/26, 2/27 ... 24/49, 25/50.

HP DSUB Breakout Boards

These half pitch DSUB cables are compatible with Winford Engineering's 50-pin Half-Pitch DSUB breakout boards, shown below.
BRKBDP50FV1-SN-DIN
BRKBDP50FV1-SN-DIN
Click image to enlarge.
BRKBDP50FV1-SN-FT
BRKBDP50FV1-SN-FT
Click image to enlarge.

Product Documents

Part #DescriptionData Sheet
CBHPD50MB-xHPDSUB 50-pin Male-Male Cable
CBHPD50MB-x
HPDSUB 50-pin Male-Male Cable

Product Details

  • Half-Pitch DSUB 50-pin connectors
  • Overmolded ends with strain reliefs
  • Twisted pair wiring with cable shield


Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
CBHPD50MB-3 Half Pitch D-sub (HPDB) Cable, 50-Pin Male-Male, Latches, 3Ft $21.00 $16.50 Yes
CBHPD50MB-6 Half Pitch D-sub (HPDB) Cable, 50-Pin Male-Male, Latches, 6Ft $24.00 $19.50 Yes
CBHPD50MB-3
Half Pitch D-sub (HPDB) Cable, 50-Pin Male-Male, Latches, 3Ft
RoHS: Yes
Buy Now:
QuantityPrice
1+$21.00
10+$16.50
CBHPD50MB-6
Half Pitch D-sub (HPDB) Cable, 50-Pin Male-Male, Latches, 6Ft
RoHS: Yes
Buy Now:
QuantityPrice
1+$24.00
10+$19.50

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
