Half-Pitch DSUB (HPDSUB) 50-Pin Breakout Board

BRKBDP50FV1-SB-DIN

BRKBDP50FV1-SB-DIN
(click image to enlarge)

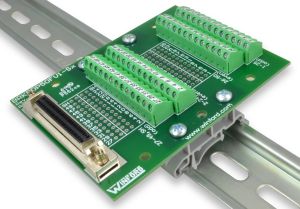

BRKBDP50FV1-SB-DIN

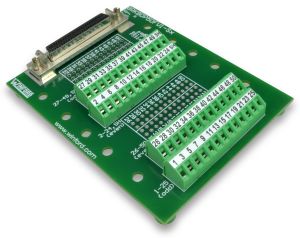

BRKBDP50FV1-SB-FT
BRKBDP50FV1-SB-FT (Overhead View)
BRKBDP50FV1-SB-FT (Connector Latchblock)
  • Half-Pitch PDSUB 50-pin connector (0.050 series D-type connector)
  • Screw terminal for each of the 50 lines, plus shield
  • Solder pad connection space for all 50 lines, plus shield
  • Rubber feet or DIN rail mount
See Also: More Breakout Boards,   50-Pin HPDSUB Cables


General Description

Centronics, MDR, VHDCI, HPDSUB  Connector Guide

This breakout board contains a 50-pin half-pitch D-type Female connector. Each of the 50 connector pins is brought out to screw terminal blocks, allowing connections to be made easily. Each pin is also brought to solder pads (2 per pin) at 0.1" spacing, allowing easy addition of 0.1" pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

The connector used on this product goes by several different names, including Half-Pitch DSUB, HPDSUB, HPDB50, Micro DB50, .050 DSUB, Amplimite .050 Series, 0.050 D-Type, HD50, SCSI, and SCSI II. If you are uncertain which connector you have, please consult our connector guide to verify the connector family you need.


These break out boards are perfect for experimentation and prototype work, as well as for use in permanent installations. They are well-suited for interfacing with data acquisition equipment or any other devices that use a Half-Pitch DSUB connector. A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

HPDSUB Connector Details

The Half-Pitch DSUB (HPDSUB) series of connectors provides a compact arrangement of pin contacts on 0.05" centers, which is tighter than full-size DSUB connectors.

Winford Engineering currently utilizes HPDSUB connectors from Amp™ / TE Connectivity™ on these breakout boards; connector details are listed below.

HPDSUB Connector Details
Manufacturer TE
Mfg. Part # Vertical: 5749721-5
Threaded Inserts Vertical: #2-56 thread
Latch Blocks Present
Jack Sockets BRKBDP50FV1-SB: Jack Sockets Included
BRKBDP50FV1-SN: Jack Sockets Not included

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP ModelDocument
BRKBDP50FV1-SB-DIN50-Pin Half-Pitch D-Sub Female, Straight, DIN MountPDF DWG IGES CAD
BRKBDP50FV1-SB-FT50-Pin Half-Pitch D-Sub Female, Straight, Rubber FeetPDF DWG IGES CAD
Connector GuideWhich connector do I have? Consult this helpful identification guide.PDF
BRKBDP50FV1-SB-DIN

50-Pin Half-Pitch D-Sub Female, Straight, DIN Mount

PDF DWG IGES CAD
BRKBDP50FV1-SB-FT

50-Pin Half-Pitch D-Sub Female, Straight, Rubber Feet

PDF DWG IGES CAD
Connector Guide

Which connector do I have? Consult this helpful identification guide.

PDF

Applications

This breakout board is general-purpose in nature and useful when interfacing to a variety of equipment. The 50-pin HPDSUB connector has traditionally been known is the SCSI-2 (SCSI-II) connector. It is also used in data aquisition and I/O applications.

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.
BRKBDP50FV1-SB-DIN
DIN Rail Mount
BRKBDP50FV1-SB-DIN
EnlargeClick image to enlarge.
Rail not included
BRKBDP50FV1-SB-FT
Rubber Feet
BRKBDP50FV1-SB-FT
EnlargeClick image to enlarge.

Cables

Winford Engineering offers 50-pin Half-Pitch DSUB (SCSI) cables (shown below) which are compatible with these breakout boards.

CBHPD50MB-3
Half-Pitch DSUB Cable
CBHPD50MB-3 pictured
EnlargeClick image to enlarge.
HPDSUB Connector
Half-Pitch DSUB Connector
EnlargeClick image to enlarge.

Product Details

  • Half-Pitch PDSUB 50-pin connector (0.050 series D-type connector)
  • Screw terminal for each of the 50 lines, plus shield
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 3.75" x 2.9"
  • Connector contains latch blocks
  • Rubber feet or DIN rail mount

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
Half-Pitch DSUB50-Pin Straight Connector:
BRKBDP50FV1-SB-DIN 50-Pin Half-Pitch D-Sub Female Breakout Board, Straight Connector, Jack Screws, Latch Blocks, DIN Rail Mount $61.50 $55.00  Yes
BRKBDP50FV1-SB-FT 50-Pin Half-Pitch D-Sub Female Breakout Board, Straight Connector, Jack Screws, Latch Blocks, Feet $60.00 $53.50  Yes

Half-Pitch DSUB50-Pin Straight Connector:
BRKBDP50FV1-SB-DIN
RoHS   Yes
50-Pin Half-Pitch D-Sub Female Breakout Board, Straight Connector, Jack Screws, Latch Blocks, DIN Rail Mount
QuantityPrice
1+$61.50
10+$55.00
BRKBDP50FV1-SB-FT
RoHS   Yes
50-Pin Half-Pitch D-Sub Female Breakout Board, Straight Connector, Jack Screws, Latch Blocks, Feet
QuantityPrice
1+$60.00
10+$53.50

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
