Diagnostic Breakout Switch Board: DB9 Connector

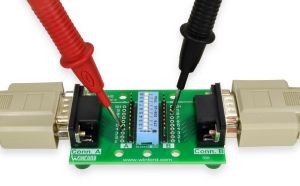

BTSD9-R-FT (Application)

BTSD9-R-FT (Application)
(click image to enlarge)
  • Pass-through test board with inline switches
  • Contains (2) DB9 connectors (1 Male, 1 Female) for convenient inline insertion
  • Includes Probe test points and Header test points for every signal
  • Includes switch for each signal line
  • Clearly labeled with connector pin numbers
  • Mounting Options: Rubber Feet, Panel, or DIN Rail

Scroll to Buy

Custom Products

See Also: More Diagnostic Breakout Boards,   DB9 Breakout Boards,   DB9 Cables


General Description

Insert this diagnostic Breakout Test Board into existing cable connections and get access to signals via test points and headers; this is the pass-through function of this board. In addition, switches allow individual signals to be disconnected from the circuit, which aids in diagnostics, troubleshooting, fault tolerance testing, or re-routing specific signals within a cable. This compact design is meant to be inserted into the cabling of a system during operation. Normal system operation can continue while signals are probed and manipulated. It is a handy test point breakout board with inline interruptor switches.

This board contains dual DB9 connectors (1 Male, 1 Female). This allows for very convenient insertion into existing cable configurations.

BTSD9 Schematic
Schematic of Breakout Test Board
Click image to enlarge.

Applications

  • System Calibration
  • Signal monitoring or measurement
  • Diagnostics and troubleshooting
  • Signal injection and fault tolerance testing
  • Re-routing selected connector signals


A breakout test board may also be referred to as a "measurement breakout", "pass-through board", "test breakout", "inline test adapter", or "breakout testing board".

Product Documents

Part #DescriptionApp Note
BTSD9-xBreakout Test Board Application Note
BTSD9-x
Breakout Test Board Application Note

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

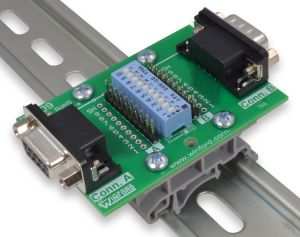

BTSD9-R-DIN
DIN Rail Mount
BTSD9-R-DIN
Click image to enlarge.
Rail not included

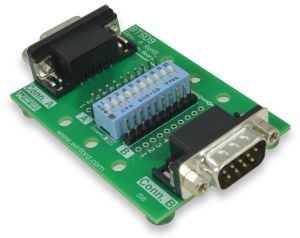

BTSD9-R-FT
Rubber Feet
BTSD9-R-FT
Click image to enlarge.

Product Details

  • Pass-through test board with inline switches
  • Contains (2) DB9 connectors (1 Male, 1 Female) for convenient inline insertion
  • Includes Probe test points and Header test points for every signal
  • Includes switch for each signal line
  • Clearly labeled with connector pin numbers
  • Approximate dimensions: 3.25" x 1.9"
  • Mounting Options: Rubber Feet, Panel, or DIN Rail


Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
BTSD9-R-DIN DB9 Breakout Test Board with Switches, Right Angle Connectors, DIN Rail Mount $25.00 $22.50 Yes
BTSD9-R-FT DB9 Breakout Test Board with Switches, Right Angle Connectors, Rubber Feet Mount $23.50 $21.00 Yes
BTSD9-R-DIN
DB9 Breakout Test Board with Switches, Right Angle Connectors, DIN Rail Mount
RoHS: Yes
Buy Now:
QuantityPrice
1+$25.00
10+$22.50
BTSD9-R-FT
DB9 Breakout Test Board with Switches, Right Angle Connectors, Rubber Feet Mount
RoHS: Yes
Buy Now:
QuantityPrice
1+$23.50
10+$21.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
