BNC Breakout Board with Spring Connection Terminals

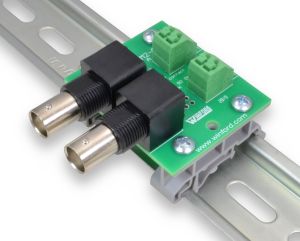

BRKGBAM2-R50-DIN

BRKGBAM2-R50-DIN
(click image to enlarge)
BRKGBAM1-R50-DIN
BRKGBAM1-R50-N
BRKGBAM1-R50-N (Overhead View)
BRKGBAM2-R50-DIN
BRKGBAM2-R50-N
BRKGBAM2-R50-N (Overhead View)
BRKGBAM4-R50-DIN
BRKGBAM4-R50-DIN (Connector View)
BRKGBAM4-R50-N
BRKGBAM4-R50-N (Overhead View)
BRKGBAM4-R50-N (Application View)
  • BNC Connector Breakout board
  • Available with 1, 2, or 4 BNC connectors per board
  • 50-ohm impedance connectors
  • Quick connection spring cage terminal blocks for all connector pins
  • Solder pad connection space / test points for each signal
  • Supports addition of 0.1" pin headers
  • DIN rail mountable
See Also: More Breakout Boards


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its BNC connectors out to spring terminals. These boards are available with 1, 2, or 4 BNC connectors per board.

Each pin, including shield, is also brought to solder pads (3 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

Spring Terminal Animation

This breakout board features push-in spring connection terminal blocks. These screwless spring clamp terminal blocks allow connections to be made very quickly and efficiently. The spring terminal connections are reliable and secure, but wires can be connected and disconnected in a fraction of the time required with standard screw terminal blocks. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button. Done! In addition, screwless spring connections can offer better results in environments where vibration could potentially loosen standard screw terminal block connections.

This breakout board is perfect for production applications as well as experimentation and prototype work.

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKGBAM1-R50-DINBNC Female 1-Position, DIN MountPDF DWG IGES CAD
BRKGBAM1-R50-NBNC Female 1-Position, Mounting HolesPDF DWG IGES CAD
BRKGBAM2-R50-DINBNC Female 2-Position, DIN MountPDF DWG IGES CAD
BRKGBAM2-R50-NBNC Female 2-Position, Mounting HolesPDF DWG IGES CAD
BRKGBAM4-R50-DINBNC Female 4-Position, DIN MountPDF DWG IGES CAD
BRKGBAM4-R50-NBNC Female 4-Position, Mounting HolesPDF DWG IGES CAD
BRKGBAM1-R50-DIN

BNC Female 1-Position, DIN Mount

PDF DWG IGES CAD
BRKGBAM1-R50-N

BNC Female 1-Position, Mounting Holes

PDF DWG IGES CAD
BRKGBAM2-R50-DIN

BNC Female 2-Position, DIN Mount

PDF DWG IGES CAD
BRKGBAM2-R50-N

BNC Female 2-Position, Mounting Holes

PDF DWG IGES CAD
BRKGBAM4-R50-DIN

BNC Female 4-Position, DIN Mount

PDF DWG IGES CAD
BRKGBAM4-R50-N

BNC Female 4-Position, Mounting Holes

PDF DWG IGES CAD

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -N have no mounting hardware included; they can be easily panel-mounted by using 1/4" nylon standoffs under the mounting holes, and #6 screws.

BRKGBAM4-R50-DIN
DIN Rail Mount
BRKGBAM4-R50-DIN
EnlargeClick image to enlarge.
Rail not included

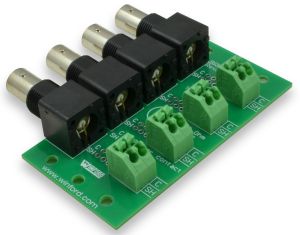

BRKGBAM4-R50-N
No Mounting Hardware
BRKGBAM4-R50-N
EnlargeClick image to enlarge.

Product Details

  • BNC Connector Breakout board
  • Available with 1, 2, or 4 BNC connectors per board
  • 50-ohm impedance connectors
  • Quick connection spring cage terminal blocks for all connector pins
  • Solder pad connection space / test points for each signal
  • Supports addition of 0.1" pin headers
  • Spring terminals accommodate wire sizes from 16AWG to 24AWG
  • DIN rail mountable

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
Right Angle Connector:
BRKGBAM1-R50-DIN BNC Female Breakout Board, 1 Position, R/A 50-ohm Jacks, DIN Rail Mount $11.00 $10.00  Yes
BRKGBAM1-R50-N BNC Female Breakout Board, 1 Position, R/A 50-ohm Jacks $9.50 $8.55  Yes
BRKGBAM2-R50-DIN BNC Female Breakout Board, 2 Position, R/A 50-ohm Jacks, DIN Rail Mount $14.00 $12.75  Yes
BRKGBAM2-R50-N BNC Female Breakout Board, 2 Position, R/A 50-ohm Jacks $12.50 $11.25  Yes
BRKGBAM4-R50-DIN BNC Female Breakout Board, 4 Position, R/A 50-ohm Jacks, DIN Rail Mount $19.50 $18.50  Yes
BRKGBAM4-R50-N BNC Female Breakout Board, 4 Position, R/A 50-ohm Jacks $18.00 $17.00  Yes

Right Angle Connector:
BRKGBAM1-R50-DIN
RoHS   Yes
BNC Female Breakout Board, 1 Position, R/A 50-ohm Jacks, DIN Rail Mount
QuantityPrice
1+$11.00
10+$10.00
BRKGBAM1-R50-N
RoHS   Yes
BNC Female Breakout Board, 1 Position, R/A 50-ohm Jacks
QuantityPrice
1+$9.50
10+$8.55
BRKGBAM2-R50-DIN
RoHS   Yes
BNC Female Breakout Board, 2 Position, R/A 50-ohm Jacks, DIN Rail Mount
QuantityPrice
1+$14.00
10+$12.75
BRKGBAM2-R50-N
RoHS   Yes
BNC Female Breakout Board, 2 Position, R/A 50-ohm Jacks
QuantityPrice
1+$12.50
10+$11.25
BRKGBAM4-R50-DIN
RoHS   Yes
BNC Female Breakout Board, 4 Position, R/A 50-ohm Jacks, DIN Rail Mount
QuantityPrice
1+$19.50
10+$18.50
BRKGBAM4-R50-N
RoHS   Yes
BNC Female Breakout Board, 4 Position, R/A 50-ohm Jacks
QuantityPrice
1+$18.00
10+$17.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
