BNC Breakout Board with Spring Connection Terminals

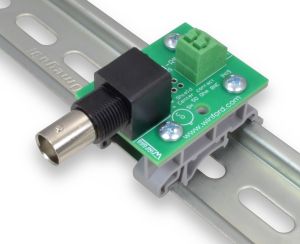

BRKGBAM1-R50-DIN

BRKGBAM1-R50-DIN
(click image to enlarge)
BRKGBAM1-R50-DIN
BRKGBAM1-R50-N
BRKGBAM1-R50-N (Overhead View)
BRKGBAM2-R50-DIN
BRKGBAM2-R50-N
BRKGBAM2-R50-N (Overhead View)
BRKGBAM4-R50-DIN
BRKGBAM4-R50-DIN (Connector View)
BRKGBAM4-R50-N
BRKGBAM4-R50-N (Overhead View)
BRKGBAM4-R50-N (Application View)
  • BNC Connector Breakout board
  • Available with 1, 2, or 4 BNC connectors per board
  • 50-ohm impedance connectors
  • Quick connection spring cage terminal blocks for all connector pins
  • Solder pad connection space / test points for each signal
  • Supports addition of 0.1" pin headers
  • DIN rail mountable
See Also: More Breakout Boards


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its BNC connectors out to spring terminals. These boards are available with 1, 2, or 4 BNC connectors per board.

Each pin, including shield, is also brought to solder pads (3 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

Spring Terminal Animation

This breakout board features push-in spring connection terminal blocks. These screwless spring clamp terminal blocks allow connections to be made very quickly and efficiently. The spring terminal connections are reliable and secure, but wires can be connected and disconnected in a fraction of the time required with standard screw terminal blocks. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button. Done! In addition, screwless spring connections can offer better results in environments where vibration could potentially loosen standard screw terminal block connections.

This breakout board is perfect for production applications as well as experimentation and prototype work.

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".
