RJ45 Shielded Jack Breakout Board with Spring Terminals

BRKG8P8CSJ-R-DIN

BRKG8P8CSJ-R-DIN
(click image to enlarge)

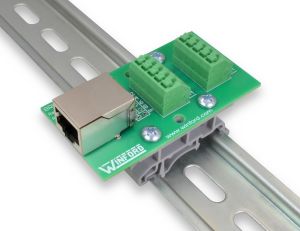

BRKG8P8CSJ-R-DIN
BRKG8P8CSJ-R-N
BRKG8P8CSJ-R-N (Overhead View)
Spring Terminals
  • Shielded RJ45/8P8C Jack
  • Quick connection spring cage terminal blocks for all 8 pins, plus shield
  • Solder pad connection space / test points for all 8 lines, plus shield
  • Supports addition of .1" pin headers
  • DIN rail mountable
See Also: More RJ45 (8P8C) Products


General Description

Make connections quickly and reliably with these screwless spring terminal breakout boards, which feature terminals made by Phoenix Contact. These RJ45 breakout boards bring all 8 pins plus shield of a shielded 8P8C (RJ45) modular jack out to spring connection terminal blocks for quick, easy, secure connections. The connection from the jack's shield is connected to a copper plane on the bottom side of the PCB in addition to being brought out to spring terminals. Each connector pin, including the shield, is also brought to solder pads which can be used as test points or for the addition of soldered components. The solder pads are arranged on standard 0.1" spacing, supporting the addition of soldered components such as pin headers. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

Spring Terminal Animation

This breakout board features push-in spring connection terminal blocks. These screwless spring clamp terminal blocks allow connections to be made very quickly and efficiently. The spring terminal connections are reliable and secure, but wires can be connected and disconnected in a fraction of the time required with standard screw terminal blocks. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button. Done! In addition, screwless spring connections can offer better results in environments where vibration could potentially loosen standard screw terminal block connections. If your application requires screw terminals rather than spring terminals, please consider the BRK8P8CSJ design or the other 8P8C options listed here.

This break out board is perfect for production applications as well as experimentation and prototype work. It is well-suited for work with RS-232 serial ports, data acquisition equipment, and any other device that uses an RJ45/8P8C connector. A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKG8P8CSJ-R-DINRJ45 Shielded Jack, Right Angle, DIN MountPDF DWG IGES CAD
BRKG8P8CSJ-R-NRJ45 Shielded Jack, Right Angle, Mounting HolesPDF DWG IGES CAD
BRKG8P8CSJ-R-DIN

RJ45 Shielded Jack, Right Angle, DIN Mount

PDF DWG IGES CAD
BRKG8P8CSJ-R-N

RJ45 Shielded Jack, Right Angle, Mounting Holes

PDF DWG IGES CAD

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -N have no mounting hardware included; they can be easily panel-mounted by using 1/4" nylon standoffs under the mounting holes, and #6 screws.

BRKG8P8CSJ-R-DIN
DIN Rail Mount
BRKG8P8CSJ-R-DIN
EnlargeClick image to enlarge.
Rail not included
BRKG8P8CSJ-R-N
No Mounting Hardware
BRKG8P8CSJ-R-N
EnlargeClick image to enlarge.

Product Details

  • Shielded RJ45/8P8C Jack
  • Quick connection spring cage terminal blocks for all 8 pins, plus shield
  • Supports addition of .1" pin headers
  • Spring terminals accommodate wire sizes from 16AWG to 24AWG
  • Approximate dimensions: 2.75" x 1.5"
  • DIN rail mountable

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
Right Angle Connector:
BRKG8P8CSJ-R-DIN RJ45 8P8C Breakout Board, R/A Shielded Connector, Screwless Push-In Spring Clamp Terminal Block, DIN Rail Mount $15.00 $14.25  Yes
BRKG8P8CSJ-R-N RJ45 8P8C Breakout Board, R/A Shielded Connector, Screwless Push-In Spring Clamp Terminal Block $13.50 $12.75  Yes

Right Angle Connector:
BRKG8P8CSJ-R-DIN
RoHS   Yes
RJ45 8P8C Breakout Board, R/A Shielded Connector, Screwless Push-In Spring Clamp Terminal Block, DIN Rail Mount
QuantityPrice
1+$15.00
10+$14.25
BRKG8P8CSJ-R-N
RoHS   Yes
RJ45 8P8C Breakout Board, R/A Shielded Connector, Screwless Push-In Spring Clamp Terminal Block
QuantityPrice
1+$13.50
10+$12.75

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
