RJ11/RJ12 6P6C Breakout Board with Spring Terminals

BRKG6P6C-R-DIN

BRKG6P6C-R-DIN
(click image to enlarge)

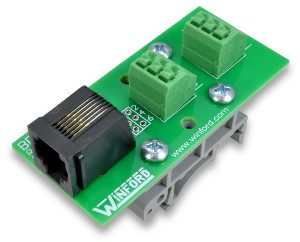

BRKG6P6C-R-DIN

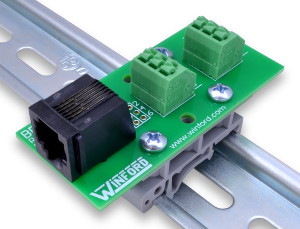

BRKG6P6C-R-DIN (On a Rail)
BRKG6P6C-R-N
BRKG6P6C-R-N (Overhead View)
BRKG6P6C-S-DIN
BRKG6P6C-S-N
BRKG6P6C-S-N (Overhead View)
  • 6P6C Jack
  • Use with RJ11, RJ12, RJ13, RJ14, RJ18, and RJ25 applications
  • Perfect for prototyping serial port circuits
  • Quick connection spring cage terminal blocks for all 6 pins
  • Solder pad connection space /test points for all 6 lines
  • Supports addition of .1" pin headers
  • DIN rail mountable
See Also: RJ12 (6P6C) Cables,   RJ12 (6P6C) Breakout Boards with Screw Terminals,   More RJ12 (6P6C) Products


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its 6P6C modular jack connector out to spring terminals.

Each pin is also brought to solder pads (1 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

Spring Terminal Animation

This breakout board features push-in spring connection terminal blocks. These screwless spring clamp terminal blocks allow connections to be made very quickly and efficiently. The spring terminal connections are reliable and secure, but wires can be connected and disconnected in a fraction of the time required with standard screw terminal blocks. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button. Done! In addition, screwless spring connections can offer better results in environments where vibration could potentially loosen standard screw terminal block connections. If your application requires screw terminals rather than spring terminals, please consider the BRK6P6C design. or the other 6P6C options listed here.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for working with serial ports, sensors, data acquisition (DAQ) equipment, telephone lines, RS-232 devices, and other devices that use a RJ11 / RJ12 / RJ13 / RJ14 / RJ18 / RJ25 / 6P6C connector.

The 6P6C designation on the modular jack stands for 6-Position, 6-Conductor, meaning it will accept telephone connectors commonly referred to as RJ11, RJ12, RJ13, RJ14, RJ18, and RJ25.

Need something different? We stock a variety of RJ12/6P6C breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKG6P6C-R-DINRJ12 Right Angle, DIN MountPDF DWG IGES CAD
BRKG6P6C-R-NRJ12 Right Angle, Mounting HolesPDF DWG IGES CAD
BRKG6P6C-S-DINRJ12 Straight Connector, DIN MountPDF DWG IGES CAD
BRKG6P6C-S-NRJ12 Straight Connector, Mounting HolesPDF DWG IGES CAD
BRKG6P6C-R-DIN

RJ12 Right Angle, DIN Mount

PDF DWG IGES CAD
BRKG6P6C-R-N

RJ12 Right Angle, Mounting Holes

PDF DWG IGES CAD
BRKG6P6C-S-DIN

RJ12 Straight Connector, DIN Mount

PDF DWG IGES CAD
BRKG6P6C-S-N

RJ12 Straight Connector, Mounting Holes

PDF DWG IGES CAD

Connector Style

These breakout boards are available with either a Right Angle connector or a Straight ("Vertical") connector. The terms Right Angle and Straight refer to the connector itself, NOT the relationship of the mating cable to the plane of the PCB. In fact, the cable mating to a Right Angle connector is parallel to the PCB, while the cable mating to a Straight connector is perpendicular to the PCB. These are pictured below:

BRKG6P6C-R-N
Right Angle Connector
BRKG6P6C-R-N pictured
EnlargeClick image to enlarge.
BRK6GP6C-S-N
Straight Connector
BRKG6P6C-S-N pictured
EnlargeClick image to enlarge.

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -N have no mounting hardware included; they can be easily panel-mounted by using 1/4" nylon standoffs under the mounting holes, and #6 screws.

BRKG6P6C-R-DIN
DIN Rail Mount
BRKG6P6C-R-DIN
EnlargeClick image to enlarge.
Rail not included
BRKG6P6C-R-N
No Mounting Hardware
BRKG6P6C-R-N
EnlargeClick image to enlarge.

Cables

Winford Engineering offers 6P6C (RJ11/RJ12) cables (shown below) which are compatible with these breakout boards.
CBM6R2TS-6
6P6C Cable
CBM6R2TS-6 pictured
EnlargeClick image to enlarge.
6P6C Connector
6P6C Connector
EnlargeClick image to enlarge.

Product Details

  • 6P6C Jack
  • Use with RJ11, RJ12, RJ13, RJ14, RJ18, and RJ25 applications
  • Quick connection spring cage terminal blocks for all 6 pins
  • Solder pad connection space /test points for all 6 lines
  • Supports addition of .1" pin headers
  • Spring terminals accommodate wire sizes from 16AWG to 24AWG
  • Approximate dimensions: 2.75" x 1.25"
  • DIN rail mountable

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
Right Angle Connector:
BRKG6P6C-R-DIN 6P6C Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount $13.90 $13.40  Yes
BRKG6P6C-R-N 6P6C Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block $12.30 $11.75  Yes
Straight Connector:
BRKG6P6C-S-DIN 6P6C Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount $13.90 $13.40  Yes
BRKG6P6C-S-N 6P6C Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block $12.30 $11.75  Yes

Right Angle Connector:
BRKG6P6C-R-DIN
RoHS   Yes
6P6C Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount
QuantityPrice
1+$13.90
10+$13.40
BRKG6P6C-R-N
RoHS   Yes
6P6C Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block
QuantityPrice
1+$12.30
10+$11.75
Straight Connector:
BRKG6P6C-S-DIN
RoHS   Yes
6P6C Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount
QuantityPrice
1+$13.90
10+$13.40
BRKG6P6C-S-N
RoHS   Yes
6P6C Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block
QuantityPrice
1+$12.30
10+$11.75

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
