6P6C Breakout Board with Screw Terminals

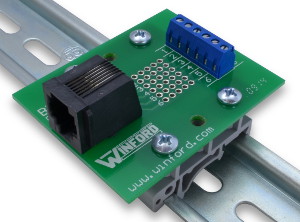

BRK6P6C-R-DIN

BRK6P6C-R-DIN
(click image to enlarge)
BRK6P6C-R-DIN
BRK6P6C-R-FT
BRK6P6C-R-FT (Overhead View)
BRK6P6C-S-DIN (Overhead View)
BRK6P6C-S-FT
BRK6P6C-S-FT (Overhead View)
  • 6P6C Jack
  • Use with RJ11, RJ12, RJ13, RJ14, RJ18, and RJ25 applications
  • Perfect for prototyping serial port circuits
  • Screw terminal for each of the 6 lines
  • Solder pad connection space for all 6 lines
  • Supports addition of .1" pin headers
  • Rubber feet or DIN rail mount
See Also: 6P6C Cables,   More RJ12 (6P6C) Products


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its 6P6C modular jack connector out to screw terminals.

Each pin is also brought to solder pads (5 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for working with serial ports, sensors, data acquisition (DAQ) equipment, telephone lines, RS-232 devices, and other devices that use a RJ11 / RJ12 / RJ13 / RJ14 / RJ18 / RJ25 / 6P6C connector.

The 6P6C designation on the modular jack stands for 6-Position, 6-Conductor, meaning it will accept telephone connectors commonly referred to as RJ11, RJ12, RJ13, RJ14, RJ18, and RJ25.

Need something different? We stock a variety of RJ12/6P6C breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionData SheetPDF DrawingDWG DrawingIGES ModelSTEP Model
BRK6P6C-R-DIN6P6C Right Angle, DIN MountPDF PDF DWG IGES CAD
BRK6P6C-R-FT6P6C Right Angle, Rubber FeetPDF PDF DWG IGES CAD
BRK6P6C-S-DIN6P6C Straight Connector, DIN MountPDF PDF DWG IGES CAD
BRK6P6C-S-FT6P6C Straight Connector, Rubber FeetPDF PDF DWG IGES CAD
BRK6P6C-R-DIN

6P6C Right Angle, DIN Mount

PDF PDF DWG IGES CAD
BRK6P6C-R-FT

6P6C Right Angle, Rubber Feet

PDF PDF DWG IGES CAD
BRK6P6C-S-DIN

6P6C Straight Connector, DIN Mount

PDF PDF DWG IGES CAD
BRK6P6C-S-FT

6P6C Straight Connector, Rubber Feet

PDF PDF DWG IGES CAD

Connector Style

These breakout boards are available with either a Right Angle connector or a Straight ("Vertical") connector. The terms Right Angle and Straight refer to the connector itself, NOT the relationship of the mating cable to the plane of the PCB. In fact, the cable mating to a Right Angle connector is parallel to the PCB, while the cable mating to a Straight connector is perpendicular to the PCB. These are pictured below:

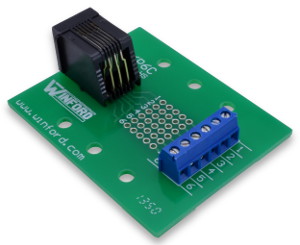

BRK6P6C-R-FT
Right Angle Connector
BRK6P6C-R-FT pictured
EnlargeClick image to enlarge.

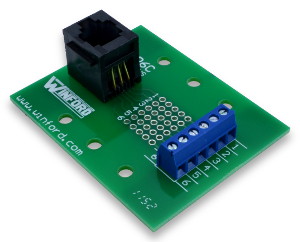

BRK6P6C-S-FT
Straight Connector
BRK6P6C-S-FT pictured
EnlargeClick image to enlarge.

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

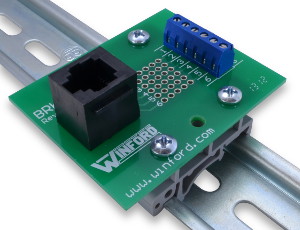

BRK6P6C-S-DIN
DIN Rail Mount
BRK6P6C-S-DIN
EnlargeClick image to enlarge.
Rail not included
BRK6P6C-R-FT
Rubber Feet
BRK6P6C-R-FT
EnlargeClick image to enlarge.

Cables

Winford Engineering offers 6P6C (RJ11/RJ12) cables (shown below) which are compatible with these breakout boards.
CBM6R2TS-6
6P6C Cable
CBM6R2TS-6 pictured
EnlargeClick image to enlarge.
6P6C Connector
6P6C Connector
EnlargeClick image to enlarge.

Product Details

  • 6P6C Jack
  • Use with RJ11, RJ12, RJ13, RJ14, RJ18, and RJ25 applications
  • Screw terminal for each of the 6 lines
  • Solder pad connection holes, five (5) per line
  • Supports addition of .1" pin headers
  • Screw terminals accommodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 2.38" x 1.9"
  • Rubber feet or DIN rail mount

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
6P6C Right Angle Connector:
BRK6P6C-R-DIN 6P6C Breakout Board, R/A Connector, DIN Rail Mount $13.90 $13.40  Yes
BRK6P6C-R-FT 6P6C Breakout Board, R/A Connector, Feet $12.30 $11.75  Yes
6P6C Straight Connector:
BRK6P6C-S-DIN 6P6C Breakout Board, Straight Connector, DIN Rail Mount $14.45 $13.90  Yes
BRK6P6C-S-FT 6P6C Breakout Board, Straight Connector, Feet $12.85 $12.30  Yes

6P6C Right Angle Connector:
BRK6P6C-R-DIN
RoHS   Yes
6P6C Breakout Board, R/A Connector, DIN Rail Mount
QuantityPrice
1+$13.90
10+$13.40
BRK6P6C-R-FT
RoHS   Yes
6P6C Breakout Board, R/A Connector, Feet
QuantityPrice
1+$12.30
10+$11.75
6P6C Straight Connector:
BRK6P6C-S-DIN
RoHS   Yes
6P6C Breakout Board, Straight Connector, DIN Rail Mount
QuantityPrice
1+$14.45
10+$13.90
BRK6P6C-S-FT
RoHS   Yes
6P6C Breakout Board, Straight Connector, Feet
QuantityPrice
1+$12.85
10+$12.30

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
