DB62HD Breakout Board with Spring Connection Terminals
- Available with DB62HD Female connector
- Quick connection spring cage terminal blocks for all pins, plus shield
- Test points for all pins, plus shield
- DIN rail mountable
General Description
Make connections quickly and reliably with this breakout board, which brings every pin of its DB62HD connector out to spring terminals.
Each pin, including shield, is also brought to a test pad located just behind the corresponding terminal block position. This facilitates convenient probing of the signals.
This breakout board features push-in spring connection terminal blocks. These screwless spring clamp terminal blocks allow connections to be made very quickly and efficiently. The spring terminal connections are reliable and secure, but wires can be connected and disconnected in a fraction of the time required with standard screw terminal blocks. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button. Done! In addition, screwless spring connections can offer better results in environments where vibration could potentially loosen standard screw terminal block connections. If your application requires screw terminals rather than spring terminals, please consider the BRKDD62HDF design.
This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, Data Aquisition (DAQ) devices, and other devices that use a DB-62HD connector.
Technically, the correct term for a DB62HD connector is DC62, but that term is not commonly used.
Need something different? We stock a couple varieties of DB62HD breakout board styles and form factors. Please have a look!
A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".
Product Documents
| Part # | Description | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|
| BRKG62HDF-R-DIN | DB62HD Female Right Angle, DIN Mount |
|
|
|
|
| BRKG62HDF-R-FT | DB62HD Female Right Angle, Rubber Feet |
|
|
|
|
| BRKG62HDF-S-DIN | DB62HD Female Straight, DIN Mount |
|
|
|
|
| BRKG62HDF-S-FT | DB62HD Female Straight, Rubber Feet |
|
|
|
|
| - | D-Sub Panel Cutout Drawing |
|
|
DB62HD Female Right Angle, DIN Mount
DB62HD Female Right Angle, Rubber Feet
DB62HD Female Straight, DIN Mount
DB62HD Female Straight, Rubber Feet
D-Sub Panel Cutout Drawing
Connector Style
These breakout boards are available with either a Right Angle connector or a Straight ("Vertical") connector. The terms Right Angle and Straight refer to the connector itself, NOT the relationship of the mating cable to the plane of the PCB. In fact, the cable mating to a Right Angle connector is parallel to the PCB, while the cable mating to a Straight connector is perpendicular to the PCB. These are pictured below:
BRKG62HDF-R-DIN pictured
Click image to enlarge.

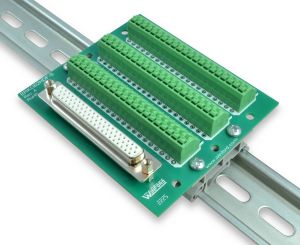

BRKG62HDF-S-DIN pictured
Click image to enlarge.Mounting Options
These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.
Click image to enlarge.
Click image to enlarge.Product Details
- DB62HD (High Density) connector
- Quick connection spring cage terminal blocks for all pins, plus shield
- Spring terminals accommodate wire sizes from 16AWG to 24AWG
- Approximate dimensions: 3.3" x 3.75"
- DIN rail mountable
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
DB62HD Female Right Angle Connector: |
|||||
| BRKG62HDF-R-DIN | DB62HD Female Breakout Board, R/A Connector, Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount | $74.35 | $69.00 | Yes | |
| BRKG62HDF-R-FT | DB62HD Female Breakout Board, R/A Connector, Push-In Spring Clamp Connection Terminal Block, Feet | $72.75 | $67.40 | Yes | |
DB62HD Female Straight Connector: |
|||||
| BRKG62HDF-S-DIN | DB62HD Female Breakout Board, Straight Connector, Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount | $74.35 | $69.00 | Yes | |
| BRKG62HDF-S-FT | DB62HD Female Breakout Board, Straight Connector, Push-In Spring Clamp Connection Terminal Block, Feet | $72.75 | $67.40 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $74.35 |
| 10+ | $69.00 |
| Quantity | Price |
|---|---|
| 1+ | $72.75 |
| 10+ | $67.40 |
| Quantity | Price |
|---|---|
| 1+ | $74.35 |
| 10+ | $69.00 |
| Quantity | Price |
|---|---|
| 1+ | $72.75 |
| 10+ | $67.40 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
