DB62HD High Density Extension Cables
- DB62 High Density 3-row connectors:
- Variety of lengths available
- Extends all 9 lines straight through
- Available in Male-Female and Male-Male
General Description
These are extender cables for devices which use a DB-62HD (high density) connector. All 62 pins are extended, and the wiring is straight-through (pin 1 to pin 1, 2 to 2, ...) including a foil shield around the cable and connecting the shells. The wire gauge is 28AWG. These cables are beige/grey in color. These cables have 3-row high density connectors.Cables with "V2" in the part number are constructed with internal pair twisting, in which pins 1&2 are twisted, pins 3&4 are twisted, etc, up through pins 61&62, all surrounded by foil and braid shielding and PVC jacket.
Technically, the correct term for a DB62HD connector is DC62, but that term is not commonly used.
Optional Extra-Long Jack Screw Kit
Winford now offers extra-long jackscrews as an accessory that can be purchased separately if daisy-chaining cables is desired. The existing thumbscrews would be removed and the long jackscrews installed in their place, and secured with the included nuts and washers on the back of the cable. See photo on right for example or order below. The jack screws are designed to accept the thumbscrews on a mating cable, helping secure the cable firmly in place.
These 35mm Jack Screws can also be used to panel mount D-Sub Extension Cables. We recommend using a max of 1/16" (0.0625") for panel thickness when mounting any D-Sub extension cables. For D-sub cutout recommendations please see our D-Sub Panel Cutout Drawing.
Product Documents
| Part # | Description | Data Sheet |
|---|---|---|
| EXT62HDV2 | DB62HD Male-Female |
|
| EXT62HDMV2 | DB62HD Male-Male |
|

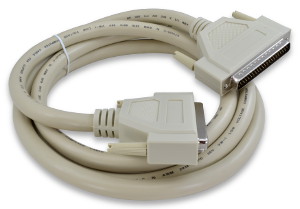

DB62HD Male-Female
DB62HD Male-Male
Product Details
- Available in Male-Female and Male-Male
- All pins wired 1:1 (e.g pin 1 to pin 1, pin 2 to pin 2, etc.)
- 28 AWG conductors
- Foil and braid shielded
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
DB62HD Male-Female: |
|||||
| EXT62HDV2-3 | DB62HD Extension Cable, Male-Female, 3Ft | $52.00 | $47.00 | Yes | |
| EXT62HDV2-6 | DB62HD Extension Cable, Male-Female, 6Ft | $61.00 | $55.00 | Yes | |
DB62HD Male-Male: |
|||||
| EXT62HDMV2-3 | DB62HD Extension Cable, Male-Male, 3Ft | $52.00 | $47.00 | Yes | |
| EXT62HDMV2-6 | DB62HD Extension Cable, Male-Male, 6Ft | $61.00 | $55.00 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $52.00 |
| 10+ | $47.00 |
| Quantity | Price |
|---|---|
| 1+ | $61.00 |
| 10+ | $55.00 |
| Quantity | Price |
|---|---|
| 1+ | $52.00 |
| 10+ | $47.00 |
| Quantity | Price |
|---|---|
| 1+ | $61.00 |
| 10+ | $55.00 |
Extra-Long Jack Screw Kits
Extra-Long Jack Screw Kit for Daisy-Chain Applications
| Product # | Description | 1+ | 10+ | 50+ | RoHS | Buy Now |
|---|---|---|---|---|---|---|
35mm Jack Screw Kit |
||||||
| DJSK-35.0-A | D-Sub #4-40 Jack Screw Kit, 35mm shaft length; 2 each of jack-screws, flat washers, lock washers, nuts | $4.50 | $4.20 | $4.00 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $4.50 |
| 10+ | $4.20 |
| 50+ | $4.00 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
