2x8 0.1" Header IDC16 Breakout Board with Spring Connection Terminals

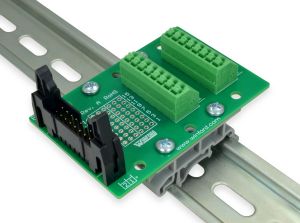

BRKG2X8-L-DIN

BRKG2X8-L-DIN
(click image to enlarge)
BRKG2X8-L-DIN
BRKG2X8-L-N
BRKG2X8-L-N (Overhead View)
Spring Terminals
  • Dual row 0.1" spaced male pin header
  • 16 Pins (2x8), 0.1" pitch
  • Solder pad connection space for all 16 lines
  • Quick connection spring cage terminal blocks for all 16 pins
  • Supports addition of 0.1" pitch pin headers
  • DIN rail mountable
See Also: IDC 2x8 Screw Terminal Breakout Boards,   IDC 0.1" Header Connectors,   Ribbon Cable


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its male dual row header connector out to spring terminals. The IDC16 header connector has pins spaced at 0.1" pitch.

Each pin is also brought to solder pads (3 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.The solder pads are arranged in such a way that you can add an additional 2x8 header to the breakout board. It will be connected 1:1 with the existing connector, thus forming a "T" or "Y" connection and allowing an extra cable connection to the board (allows daisy-chaining connections, etc).

Spring Terminal Animation

This breakout board features push-in spring connection terminal blocks. These screwless spring clamp terminal blocks allow connections to be made very quickly and efficiently. The spring terminal connections are reliable and secure, but wires can be connected and disconnected in a fraction of the time required with standard screw terminal blocks. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button. Done! In addition, screwless spring connections can offer better results in environments where vibration could potentially loosen standard screw terminal block connections. If your application requires screw terminals rather than spring terminals, please consider the BRK2X8 design.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for interfacing with microcontroller programming circuits, LCD displays, I/O ports, DAQ equipment, Opto 22 racks, and other devices that use a 2x8 16-position header connector.

The header connector on this breakout board comes standard with long ejector latches. "Long ejectors" indicates that the ejectors are the correct length to accomodate IDC connectors with strain reliefs installed.

A dual row header is sometimes referred to as an "IDC Header", "IDC connector", or "ribbon cable connector". A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKG2X8-L-DIN2x8 0.1" Header, DIN MountPDF DWG IGES CAD
BRKG2X8-L-N2x8 0.1" Header, Mounting HolesPDF DWG IGES CAD
BRKG2X8-L-DIN

2x8 0.1" Header, DIN Mount

PDF DWG IGES CAD
BRKG2X8-L-N

2x8 0.1" Header, Mounting Holes

PDF DWG IGES CAD

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -N have no mounting hardware included; they can be easily panel-mounted by using 1/4" nylon standoffs under the mounting holes, and #6 screws.

BRKG2X8-L-DIN
DIN Rail Mount
BRKG2X8-L-DIN
EnlargeClick image to enlarge.
Rail not included
BRKG2X8-L-N
No Mounting Hardware
BRKG2X8-L-N
EnlargeClick image to enlarge.

Product Details

  • Dual row 0.1" spaced male pin header
  • 16 Pins (2x8), 0.1" pitch
  • Quick connection spring cage terminal blocks for all 16 pins
  • Solder pad connection holes, 3 per pin
  • Supports addition of 0.1" pitch pin headers
  • Spring terminals accommodate wire sizes from 16AWG to 24AWG
  • Approximate dimensions: 3.0" x 2.0"
  • DIN rail mountable

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
Long Ejectors:
BRKG2X8-L-DIN 2x8 (16 pins) 0.1" Dual Row Header Breakout Board, Long Ejector, Spring Terminals, DIN Rail Mount $17.65 $16.70  Yes
BRKG2X8-L-N 2x8 (16 pins) 0.1" Dual Row Header Breakout Board, Long Ejector, Spring Terminals $16.05 $15.10  Yes

Long Ejectors:
BRKG2X8-L-DIN
RoHS   Yes
2x8 (16 pins) 0.1" Dual Row Header Breakout Board, Long Ejector, Spring Terminals, DIN Rail Mount
QuantityPrice
1+$17.65
10+$16.70
BRKG2X8-L-N
RoHS   Yes
2x8 (16 pins) 0.1" Dual Row Header Breakout Board, Long Ejector, Spring Terminals
QuantityPrice
1+$16.05
10+$15.10

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
