DB26HD Breakout Board with Spring Connection Terminals

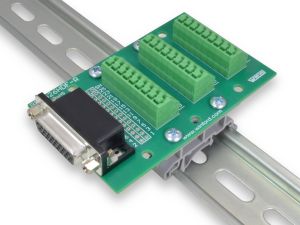

BRKG26HDF-R-DIN

BRKG26HDF-R-DIN
(click image to enlarge)
BRKG26HDF-R-DIN
BRKG26HDF-R-N
BRKG26HDF-R-N (Overhead View)
BRKG26HDM-R-DIN
BRKG26HDM-R-N
BRKG26HDM-R-N (Overhead View)
Spring Terminals
  • Available with DB26HD Male or Female connector
  • Quick connection spring cage terminal blocks for all pins, plus shield
  • Solder pad connection space / test points for all pins, plus shield
  • Supports addition of 0.1" pin headers
  • DIN rail mountable
See Also: More DB26HD Breakout Boards,   DB26HD Cables


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB26HD connector out to spring terminals. This product is available with both male and female connectors.

Each pin, including shield, is also brought to solder pads (1 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

Spring Terminal Animation

This breakout board features push-in spring connection terminal blocks. These screwless spring clamp terminal blocks allow connections to be made very quickly and efficiently. The spring terminal connections are reliable and secure, but wires can be connected and disconnected in a fraction of the time required with standard screw terminal blocks. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button. Done! In addition, screwless spring connections can offer better results in environments where vibration could potentially loosen standard screw terminal block connections. If your application requires screw terminals rather than spring terminals, please consider the BRKDD26HD design or the other DB26HD options listed here.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, DAQ devices, and other devices that use a DB-26 High Density connector.

Technically, the correct term for a DB26HD connector is DA26, but that term is not commonly used.

Need something different? We stock a variety of DB26HD breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Breakout boards with enclosures Need an enclosed breakout board? Winford offers our BRKE line of boards, which come installed in enclosures.

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKG26HDF-R-DINDB26HD Female Right Angle, DIN MountPDF DWG IGES CAD
BRKG26HDF-R-NDB26HD Female Right Angle, Mounting HolesPDF DWG IGES CAD
BRKG26HDM-R-DINDB26HD Male Right Angle, DIN MountPDF DWG IGES CAD
BRKG26HDM-R-NDB26HD Male Right Angle, Mounting HolesPDF DWG IGES CAD
-D-Sub Panel Cutout DrawingPDF DWG
BRKG26HDF-R-DIN

DB26HD Female Right Angle, DIN Mount

PDF DWG IGES CAD
BRKG26HDF-R-N

DB26HD Female Right Angle, Mounting Holes

PDF DWG IGES CAD
BRKG26HDM-R-DIN

DB26HD Male Right Angle, DIN Mount

PDF DWG IGES CAD
BRKG26HDM-R-N

DB26HD Male Right Angle, Mounting Holes

PDF DWG IGES CAD
-

D-Sub Panel Cutout Drawing

PDF DWG

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -N have no mounting hardware included; they can be easily panel-mounted by using 1/4" nylon standoffs under the mounting holes, and #6 screws.

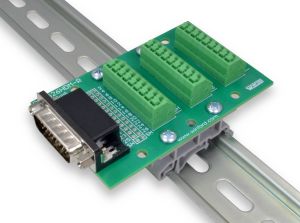

BRKG26HDM-R-DIN
DIN Rail Mount
BRKG26HDM-R-DIN
EnlargeClick image to enlarge.
Rail not included
BRKG26HDM-R-N
No Mounting Hardware
BRKG26HDM-R-N
EnlargeClick image to enlarge.

Product Details

  • DB26HD connector
  • Quick connection spring cage terminal blocks for all pins, plus shield
  • Solder pad connection holes, one (1) per line
  • Supports addition of 0.1" pin headers
  • Spring terminals accommodate wire sizes from 16AWG to 24AWG
  • Approximate dimensions: 3.5" x 2.2"
  • DIN rail mountable

Pricing and Ordering

Product # Description 1+ 10+ 50+ RoHS Buy Now
DB26HD Female Right Angle Connector:
BRKG26HDF-R-DIN DB26HD Female Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount $31.50 $28.50 $27.50  Yes
BRKG26HDF-R-N DB26HD Female Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block $30.00 $27.00 $26.00  Yes
DB26HD Male Right Angle Connector:
BRKG26HDM-R-DIN DB26HD Male Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount $31.50 $28.50 $27.50  Yes
BRKG26HDM-R-N DB26HD Male Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block $30.00 $27.00 $26.00  Yes

DB26HD Female Right Angle Connector:
BRKG26HDF-R-DIN
RoHS   Yes
DB26HD Female Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount
QuantityPrice
1+$31.50
10+$28.50
50+$27.50
BRKG26HDF-R-N
RoHS   Yes
DB26HD Female Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block
QuantityPrice
1+$30.00
10+$27.00
50+$26.00
DB26HD Male Right Angle Connector:
BRKG26HDM-R-DIN
RoHS   Yes
DB26HD Male Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount
QuantityPrice
1+$31.50
10+$28.50
50+$27.50
BRKG26HDM-R-N
RoHS   Yes
DB26HD Male Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block
QuantityPrice
1+$30.00
10+$27.00
50+$26.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
