DB26 Breakout Board

BRKDD26HDFV2-R-DIN

BRKDD26HDFV2-R-DIN
(click image to enlarge)
BRKDD26HDFV2-R-DIN
BRKDD26HDFV2-R-FT
BRKDD26HDFV2-R-FT (Overhead View)
BRKDD26HDM-R-DIN
BRKDD26HDM-R-FT
BRKDD26HDM-R-FT (Overhead View)
  • DB26HD 3-row connector

    (Female connector shown)
  • Perfect for prototyping DAQ and I/O board connections
  • Screw terminal for each of the 26 lines, plus shield
  • Solder pad connection space for all 26 lines, plus shield
  • Fast and easy connections
  • Double deck screw terminals provide compact wiring
  • Rubber feet or DIN rail mount
See Also: More DB26HD Breakout Boards,   More Breakout Boards,   DB26HD Cables


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB26HD connector out to screw terminals. This product is available with both male and female connectors. Double-deck screw terminals efficiently utilize board area to provide a compact footprint.

Each pin, including shield, is also brought to solder pads (3 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, DAQ devices, and other devices that use a DB-26 High Density connector.

Technically, the correct term for a DB26HD connector is DA26, but that term is not commonly used.

Need something different? We stock a variety of DB26HD breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Breakout boards with enclosures Need an enclosed breakout board? Winford offers our BRKE line of boards, which come installed in enclosures.

Product Documents

Part #DescriptionData SheetPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKDD26HDFV2-R-DINDB26HD Female Breakout Board, DIN MountPDF PDF DWG IGES CAD
BRKDD26HDFV2-R-FTDB26HD Female Breakout Board, Rubber FeetPDF PDF DWG IGES CAD
BRKDD26HDM-R-DINDB26HD Male Breakout Board, DIN MountPDF PDF DWG IGES CAD
BRKDD26HDM-R-FTDB26HD Male Breakout Board, Rubber FeetPDF PDF DWG IGES CAD
-D-Sub Panel Cutout DrawingPDF DWG
BRKDD26HDFV2-R-DIN

DB26HD Female Breakout Board, DIN Mount

PDF PDF DWG IGES CAD
BRKDD26HDFV2-R-FT

DB26HD Female Breakout Board, Rubber Feet

PDF PDF DWG IGES CAD
BRKDD26HDM-R-DIN

DB26HD Male Breakout Board, DIN Mount

PDF PDF DWG IGES CAD
BRKDD26HDM-R-FT

DB26HD Male Breakout Board, Rubber Feet

PDF PDF DWG IGES CAD
-

D-Sub Panel Cutout Drawing

PDF DWG

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

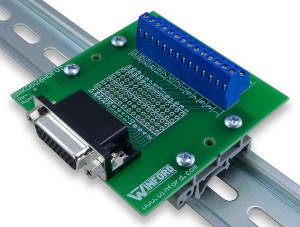

BRKDD26HDFV2-R-DIN
DIN Rail Mount
BRKDD26HDFV2-R-DIN
EnlargeClick image to enlarge.
Rail not included

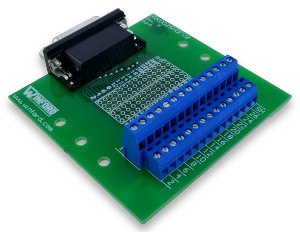

BRKDD26HDFV2-R-FT
Rubber Feet
BRKDD26HDFV2-R-FT
EnlargeClick image to enlarge.

Product Details

  • DB26HD (high density, three row) connector
  • Screw terminal for each of the 26 lines, plus shield
  • Solder pad connection holes, three (3) per line
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 3.0" x 3.0"
  • Rubber feet or DIN rail mount

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
DB26HD Female Right Angle Connector:
BRKDD26HDFV2-R-DIN DB26HD Female Breakout Board, R/A Connector, DIN Rail Mount $27.50 $26.00  Yes
BRKDD26HDFV2-R-FT DB26HD Female Breakout Board, R/A Connector, Feet $26.00 $24.50  Yes
DB26HD Male Right Angle Connector:
BRKDD26HDM-R-DIN DB26HD Male Breakout Board, R/A Connector, DIN Rail Mount $27.50 $26.00  Yes
BRKDD26HDM-R-FT DB26HD Male Breakout Board, R/A Connector, Feet $26.00 $24.50  Yes

DB26HD Female Right Angle Connector:
BRKDD26HDFV2-R-DIN
RoHS   Yes
DB26HD Female Breakout Board, R/A Connector, DIN Rail Mount
QuantityPrice
1+$27.50
10+$26.00
BRKDD26HDFV2-R-FT
RoHS   Yes
DB26HD Female Breakout Board, R/A Connector, Feet
QuantityPrice
1+$26.00
10+$24.50
DB26HD Male Right Angle Connector:
BRKDD26HDM-R-DIN
RoHS   Yes
DB26HD Male Breakout Board, R/A Connector, DIN Rail Mount
QuantityPrice
1+$27.50
10+$26.00
BRKDD26HDM-R-FT
RoHS   Yes
DB26HD Male Breakout Board, R/A Connector, Feet
QuantityPrice
1+$26.00
10+$24.50

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
